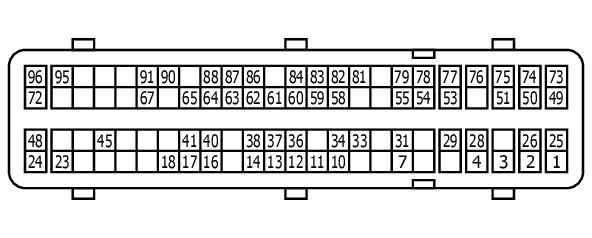

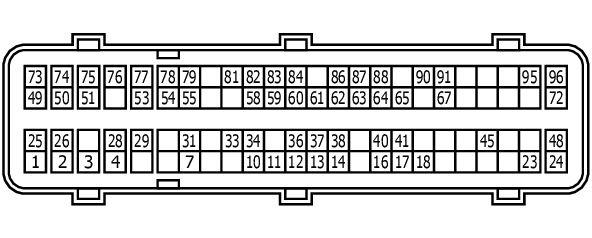

ECM Connector End View (F149)
Connector Types: A0075407381
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | BR/B | FUEL INJECTOR (NO. 1) |
| 2 | GY | FUEL INJECTOR (NO. 1) |
| 3 | Y/BR | PARTIAL LOAD OPERATION CRANKCASE VENTILATION VALVE |
| 4 | G/W | COOLANT THERMOSTAT HEATER ELEMENT |
| 7 | L | IGNITION COIL (NO. 2) |
| 10 | R/Y | SENSOR GROUND |
| 11 | G/Y | SENSOR GROUND |
| 12 | R/V | SENSOR GROUND |
| 13 | BR | SENSOR GROUND |
| 14 | BR/G | SENSOR GROUND |
| 16 | W/B | SENSOR POWER SUPPLY |
| 17 | BR/W | SENSOR POWER SUPPLY |
| 18 | W/V | SENSOR POWER SUPPLY |
| 23 | B/BR | DIVERT AIR SWITCHOVER VALVE |
| 24 | L/R | THROTTLE VALVE MOTOR (+) |
| 25 | L/G | FUEL INJECTOR (NO. 4) |
| 26 | W/L | FUEL INJECTOR (NO. 4) |
| 28 | W/R | ENGINE OIL PUMP VALVE |
| 29 | B | INTAKE CAMSHAFT ACTUATOR |
| 31 | V/L | IGNITION COIL (NO. 4) |
| 33 | BR/O | INTAKE CAMSHAFT VALVE LIFT SWITCHOVER ACTUATOR |
| 34 | Y/L | EXHAUST CAMSHAFT POSITION SENSOR |
| 36 | O/B | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| 37 | GY/L | HEATED OXYGEN SENSOR |
| 38 | GY/R | THROTTLE POSITION SENSOR 2 |
| 40 | BR/GY | CHARGE AIR TEMPERATURE SENSOR DOWNSTREAM OF THROTTLE VALVE |
| 41 | Y/B | PRESSURE SENSOR UPSTREAM OF THROTTLE VALVE |
| 45 | L/W | LIN |
| 48 | G/V | THROTTLE VALVE MOTOR (-) |
| 49 | BR/L | FUEL INJECTOR (NO. 3) |
| 50 | B/Y | FUEL INJECTOR (NO. 3) |
| 51 | BR/Y | BOOST PRESSURE CONTROL VACUUM TRANSDUCER |
| 53 | P/Y | EXHAUST CAMSHAFT ACTUATOR |
| 54 | BR/B | COOLANT PUMP SWITCHOVER VALVE |
| 55 | G | IGNITION COIL (NO. 3) |
| 58 | R/B | INTAKE CAMSHAFT POSITION SENSOR |
| 59 | V/GY | KNOCK SENSOR 2 |
| 60 | G/B | KNOCK SENSOR 1 |
| 61 | BR/R | CHARGE AIR TEMPERATURE SENSOR UPSTREAM OF THROTTLE VALVE |
| 62 | Y/GY | THROTTLE POSITION SENSOR 1 |
| 63 | L/R | AIR FUEL RATIO (A/F) SENSOR |
| 64 | B/Y | AIR FUEL RATIO (A/F) SENSOR |
| 65 | Y/R | FUEL TEMPERATURE SIGNAL |
| 67 | W/L | FUEL PRESSURE SIGNAL |
| 72 | R/GY | INTAKE CAMSHAFT VALVE LIFT SWITCHOVER POSITION SENSOR 2 |
| 73 | B/R | FUEL INJECTOR (NO. 2) |
| 74 | B/W | FUEL INJECTOR (NO. 2) |
| 75 | V | QUANTITY CONTROL VALVE (LOW) |
| 76 | G/B | QUANTITY CONTROL VALVE (HIGH) |
| 77 | R/B | AIR FUEL RATIO (A/F) SENSOR HEATER |
| 78 | V/G | FULL-LOAD OPERATION VENT LINE HEATER ELEMENT |
| 79 | P | IGNITION COIL (NO. 1) |
| 81 | Y/W | CRANKSHAFT POSITION SENSOR |
| 82 | O | ENGINE OIL LEVEL SWITCH |
| 83 | P/G | KNOCK SENSOR 2 |
| 84 | W/Y | KNOCK SENSOR 1 |
| 86 | GY/Y | ENGINE COOLANT TEMPERATURE SENSOR |
| 87 | V | AIR FUEL RATIO (A/F) SENSOR |
| 88 | GY/B | AIR FUEL RATIO (A/F) SENSOR |
| 90 | O/G | PRESSURE SENSOR DOWNSTREAM OF AIR FILTER |
| 91 | GY | PRESSURE SENSOR DOWNSTREAM OF THROTTLE VALVE |
| 95 | R | HEATED OXYGEN SENSOR HEATER |
| 96 | L/Y | INTAKE CAMSHAFT VALVE LIFT SWITCHOVER POSITION SENSOR 1 |
