Diode Connector End View (M57)

Connector Types:  ET02-2W

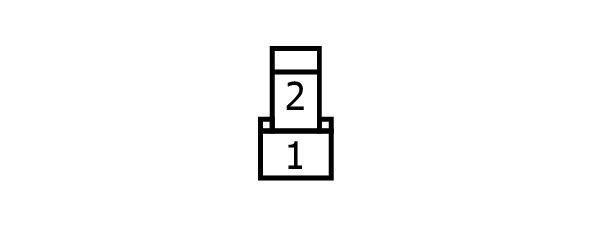

Fig 1: Terminal-side
GNSW46569Courtesy of NISSAN NORTH AMERICA

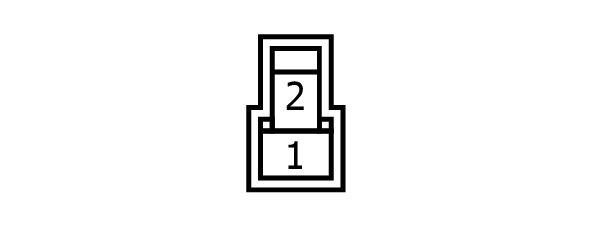

Fig 2: Harness-side
GNSW46547Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 V -
2 W -
