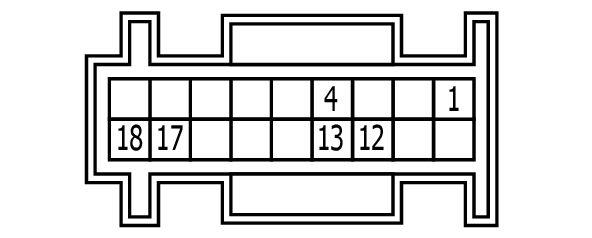

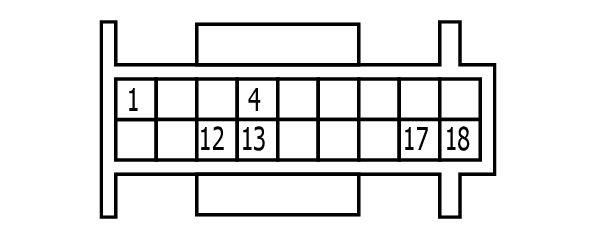

Combination Meter Connector End View (M32)
Connector Types:
MB_A0525452726
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
BR |
GROUND |
| 4 |
R |
BATTERY POWER SUPPLY |
| 12 |
L |
CAN-L |
| 13 |
W |
CAN-H |
| 17 |
BR |
CAN-L |
| 18 |
R |
CAN-H |
