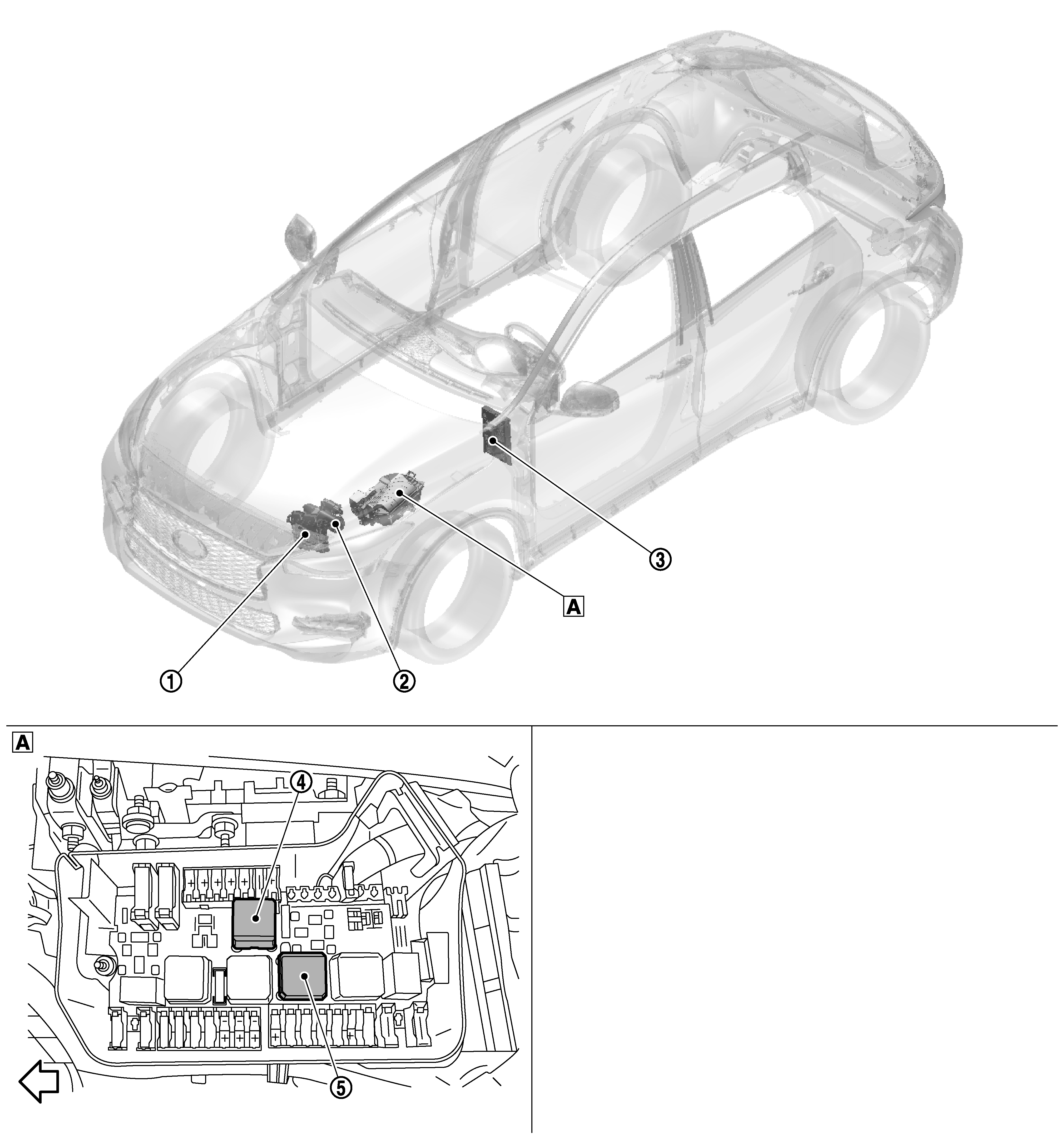

Component Parts Location
|
|
Fuse and fusible link block 1 |
|
No. |
Component |
Function |
|
|
ECM |
ECM controls starter relay. Refer to Component Parts Location for detailed installation location. |
|
|
Starter motor |
Refer to Starter motor . |
|
|
BCM |
BCM controls injection relay. Refer to Component Parts Location for detailed installation location. |
|
|
Injection relay |
Injection relay is turned ON by BCM when ignition switch is ON or START. |
|
|
Starter relay |
Starter relay is turned ON by ECM when starter operating condition is satisfied. |
