Steering Switch: Notes

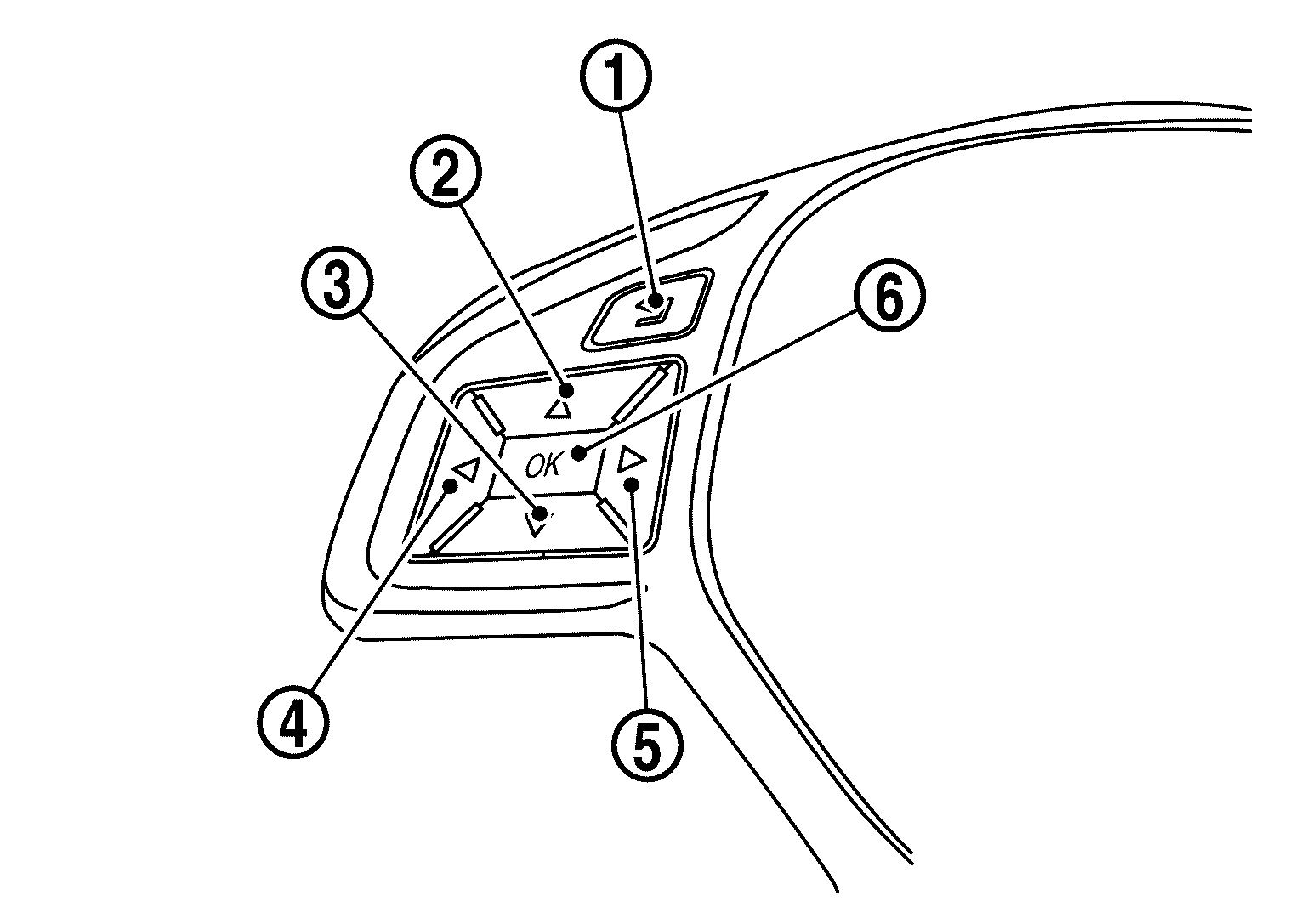

Operating instructions using the steering switch, various menu levels can be displayed in the information display of the combination meter:
|
No. |
Switch name |
Operation |
Description |
|
|
Back switch |
Press |
The back switch can be used in each menu or submenu to jump into the next higher menu level. |
|
|
System selection switch (Up) |
Press |
It is possible to scroll in the main menu via the system selection switch. |
|
|
System selection switch (Down) |
Press |
|
|
|
Scroll back switch |
Press |
It is possible to scroll within a menu in the submenus or in lists using the scroll forward and back switch. |
|
|
Scroll forward switch |
Press |
|
|
|
OK switch |
Press |
The OK switch confirms the corresponding selection or displayed messages. |
NOTE:
All the buttons of the left multifunction steering wheel button group are always installed. However the available functions depend on the equipment of the vehicle. Overview of available menus (equipment-dependent):
