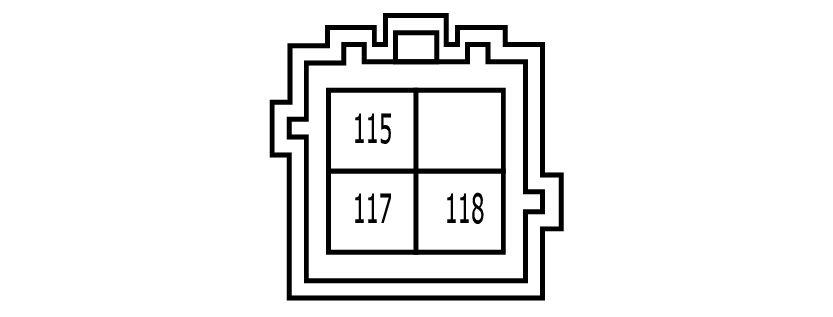

BCM (Body Control Module) Connector End View (E14)
Connector Types:
MB_A0235458926
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 115 |
R |
BAT (VIA DECOUPLING RELAY) |
| 117 |
R |
BAT (VIA DECOUPLING RELAY) |
| 118 |
BR |
GND |
