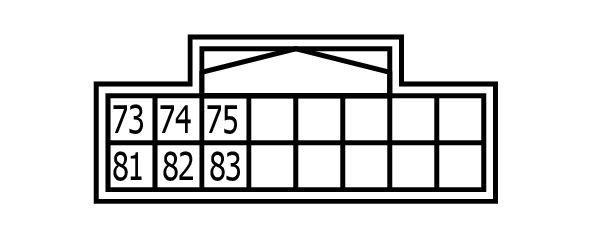

Av Control Unit Connector End View (M12)
Connector Types:
TH16FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 73 |
B |
TEL VOICE SIGNAL (+) |
| 74 |
SHIELD |
SHIELD |
| 75 |
G |
VOICE GUIDANCE SIGNAL (+) |
| 81 |
W |
TEL VOICE SIGNAL (-) |
| 82 |
SHIELD |
SHIELD |
| 83 |
R |
VOICE GUIDANCE SIGNAL (-) |
