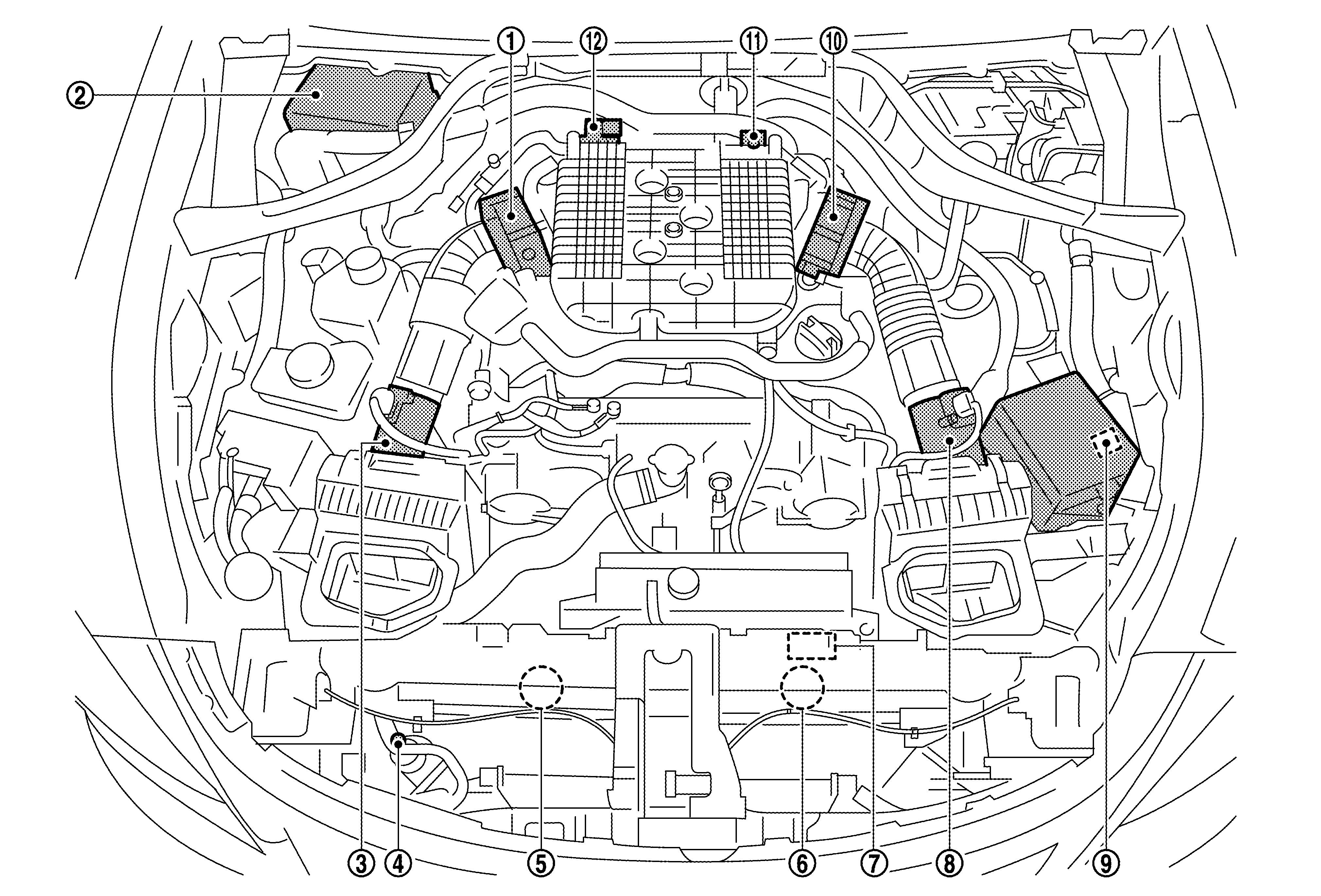

Component Parts Location
|
No. |
Component |
Reference |
|
1. |
Electric throttle control actuator (bank 1) |
|
|
2. |
IPDM E/R |
IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
3. |
Mass air flow sensor (with intake air temperature sensor) (bank 1) |
|
|
4. |
Refrigerant pressure sensor |
|
|
5. |
Cooling fan motor-1 |
|
|
6. |
Cooling fan motor-2 |
|
|
7. |
Cooling fan control module |
|
|
8. |
Mass air flow sensor (bank 2) |
|
|
9. |
Cooling fan relay |
|
|
10. |
Electric throttle control actuator (bank 2) |
|
|
11. |
Manifold absolute pressure (MAP) sensor |
|
|
12. |
EVAP canister purge volume control solenoid valve |
|
A. |
Top view of the engine (View with intake manifold is removed) |
B. |
Around the oil filter |
C. |
Rear view of the engine |
|
|

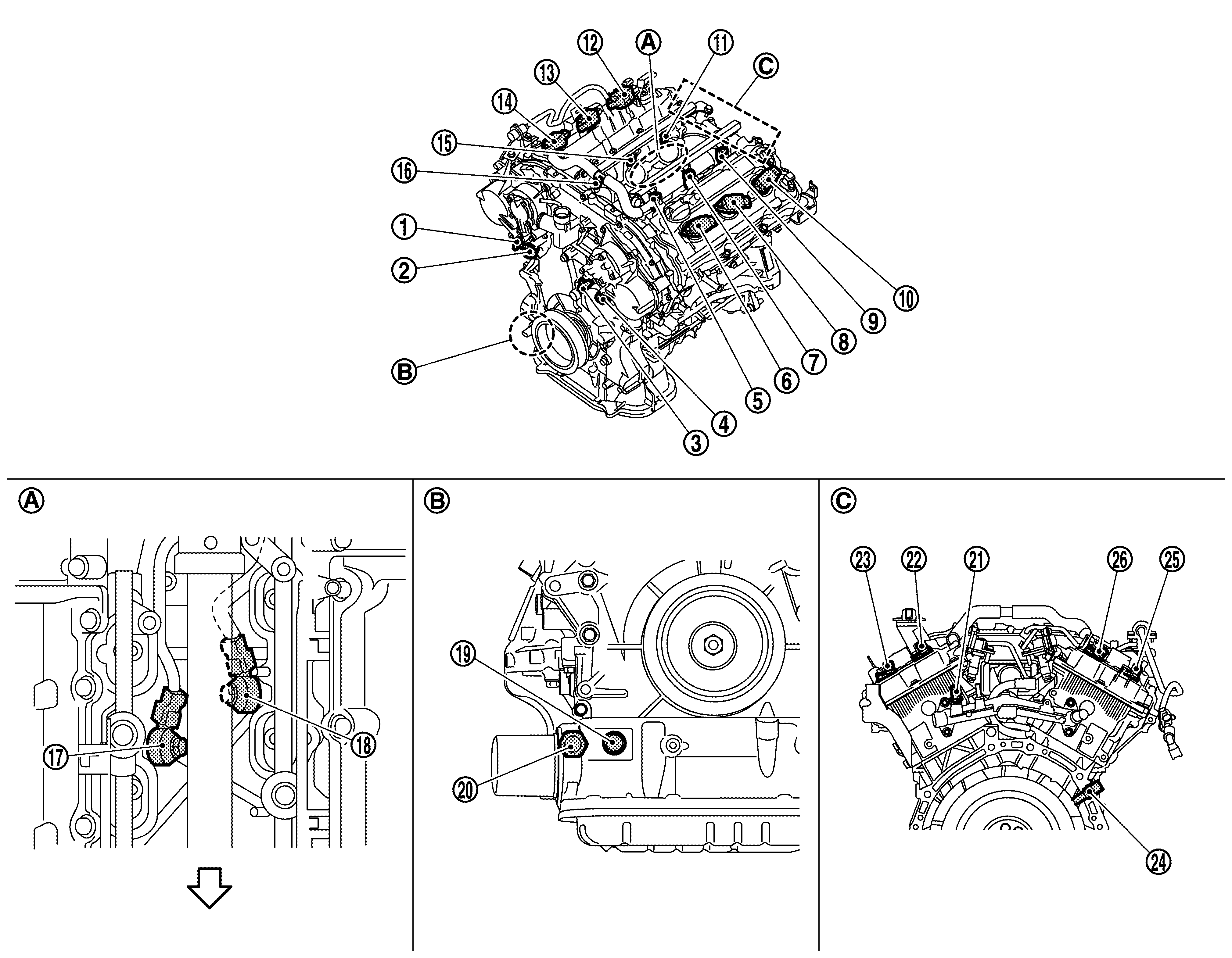

Engine front |
|
No. |
Component |
Reference |
|
1. |
Exhaust valve timing control solenoid valve (bank 1) |
|
|
2. |
Intake valve timing control solenoid valve (bank 1) |
|
|
3. |
Intake valve timing control solenoid valve (bank 2) |
|
|
4. |
Exhaust valve timing control solenoid valve (bank 2) |
|
|
5. |
Fuel injector (No. 2 cylinder) |
|
|
6. |
Ignition coil (with power transistor) and spark plug (No. 2 cylinder) |
|
|
7. |
Fuel injector (No. 4 cylinder) |
|
|
8. |
Ignition coil (with power transistor) and spark plug (No. 4 cylinder) |
|
|
9. |
Fuel injector (No. 6 cylinder) |
|
|
10. |
Ignition coil (with power transistor) and spark plug (No. 6 cylinder) |
|
|
11. |
Fuel injector (No. 5 cylinder) |
|
|
12. |
Ignition coil (with power transistor) and spark plug (No. 5 cylinder) |
|
|
13. |
Ignition coil (with power transistor) and spark plug (No. 3 cylinder) |
|
|
14. |
Ignition coil (with power transistor) and spark plug (No. 1 cylinder) |
|
|
15. |
Fuel injector (No. 3 cylinder) |
|
|
16. |
Fuel injector (No. 1 cylinder) |
|
|
17. |
Knock sensor (bank 1) |
|
|
18. |
Knock sensor (bank 2) |
|
|
19. |
Engine oil temperature sensor |
|
|
20. |
Engine oil pressure sensor |
|
|
21. |
Engine coolant temperature sensor |
|
|
22. |
Camshaft position sensor (PHASE) (bank 2) |
|
|
23. |
Exhaust valve timing control position sensor (bank 2) |
|
|
24. |
Crankshaft position sensor (POS) |
|
|
25. |
Exhaust valve timing control position sensor (bank 1) |
|
|
26. |
Camshaft position sensor (PHASE) (bank 1) |
|

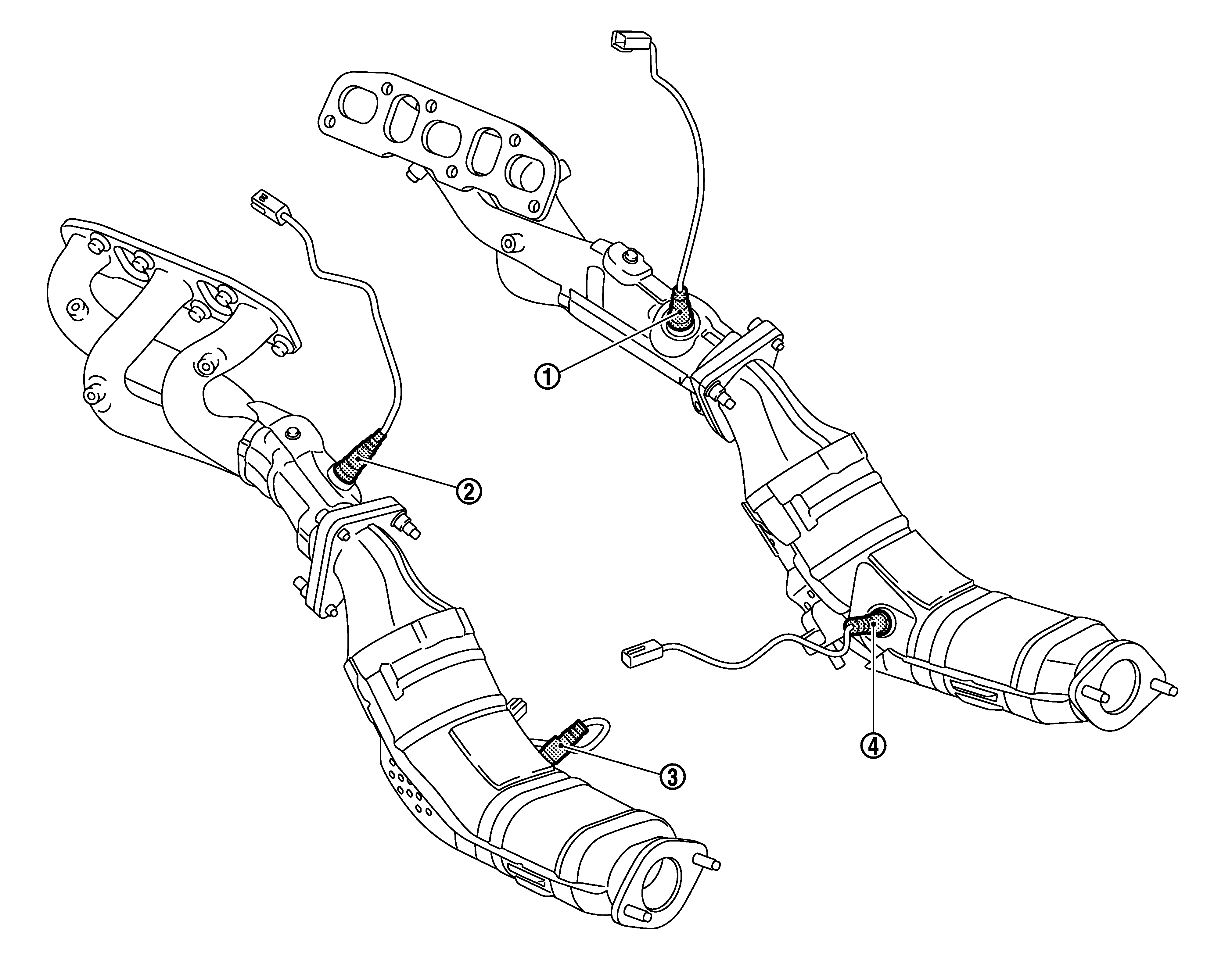

No. |
Component |
Reference |
|
1. |
A/F sensor 1 (bank 1) |
|
|
2. |
A/F sensor 1 (bank 2) |
|
|
3. |
Heated oxygen sensor 2 (bank 2) |
|
|
4. |
Heated oxygen sensor 2 (bank 1) |
|

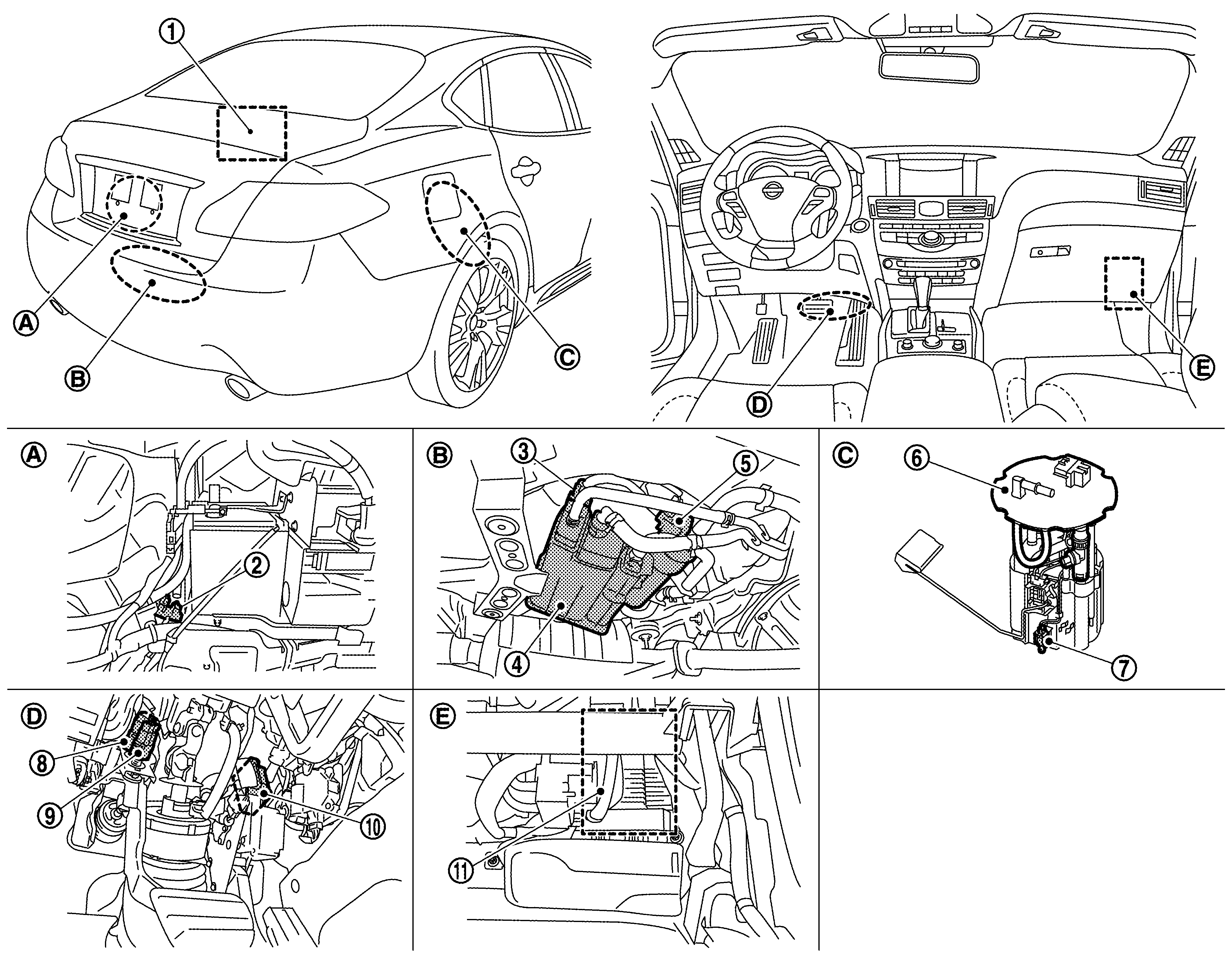

A. |
Left side of trunk room |
B. |
Under the spare tire housing |
C. |
Rear seat (lower right) |
|
D. |
Around the pedal |
E. |
Lower right of the glove box |
|
No. |
Component |
Reference |
|
1. |
HPCM |
HPCM send the following signals to the ECM via the CAN communication line.
Refer to Component Parts Location . |
|
2. |
Battery current sensor |
|
|
3. |
EVAP control system pressure sensor |
|
|
4. |
EVAP canister |
EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. |
|
5. |
EVAP canister vent control valve |
|
|
6. |
Fuel level sensor unit and fuel pump |
|
|
7. |
Fuel tank temperature sensor |
|
|
8. |
Stop lamp switch |
|
|
9. |
Brake switch |
|
|
10. |
Accelerator pedal position sensor |
|
|
11. |
ECM |
