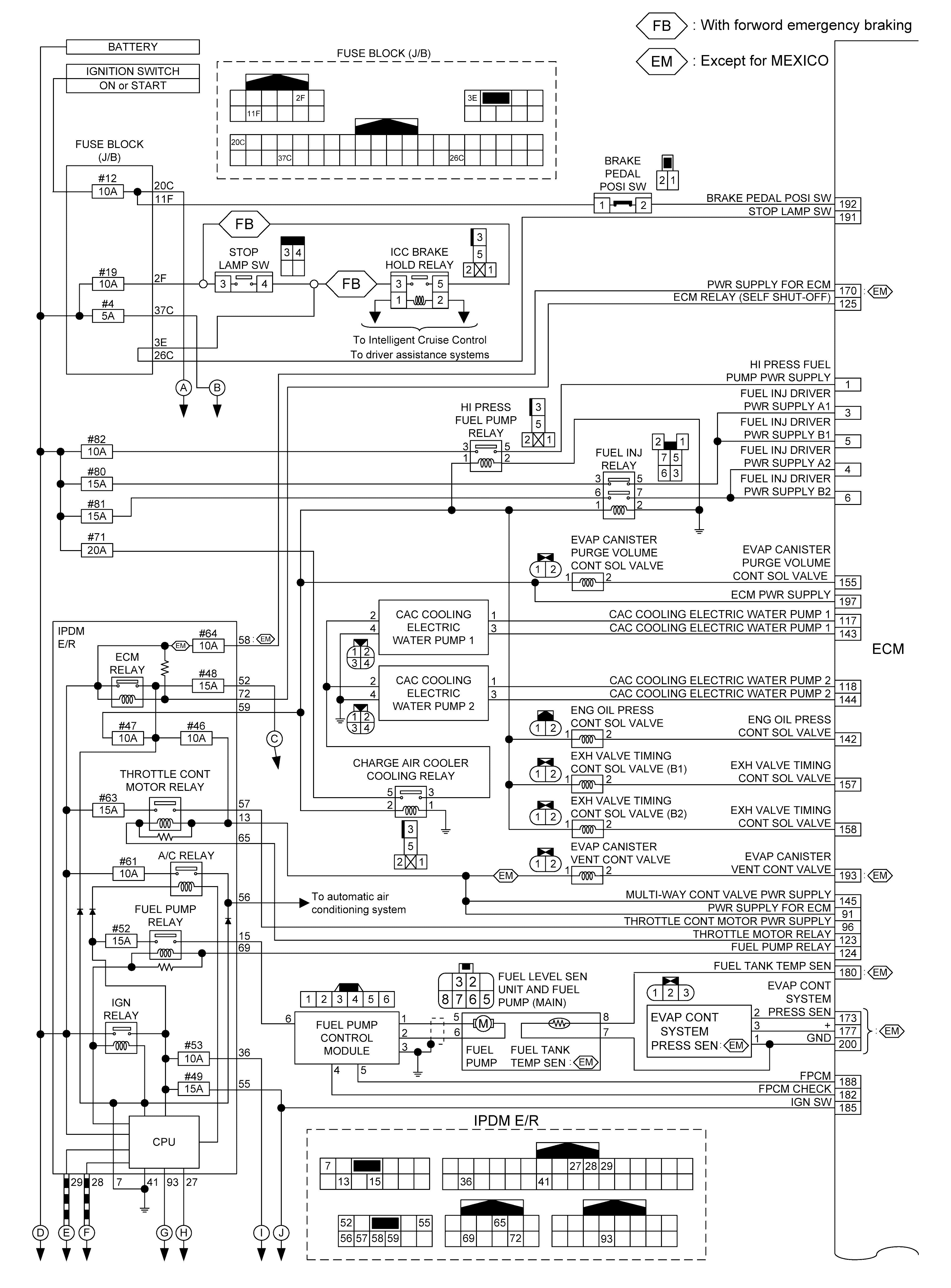

Circuit Diagram (Turbo High Pressure Model)

GNSILL0157605-605

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSBIB0184GB-184

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSBIB1396GB-396

Courtesy of NISSAN NORTH AMERICA, INC.

GNSILL0129442-442

Courtesy of NISSAN NORTH AMERICA, INC.
