Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install needle bearing to main shaft.
    CAUTION: Apply transfer fluid to the periphery of needle bearing.
  2. Install sprocket to main shaft.

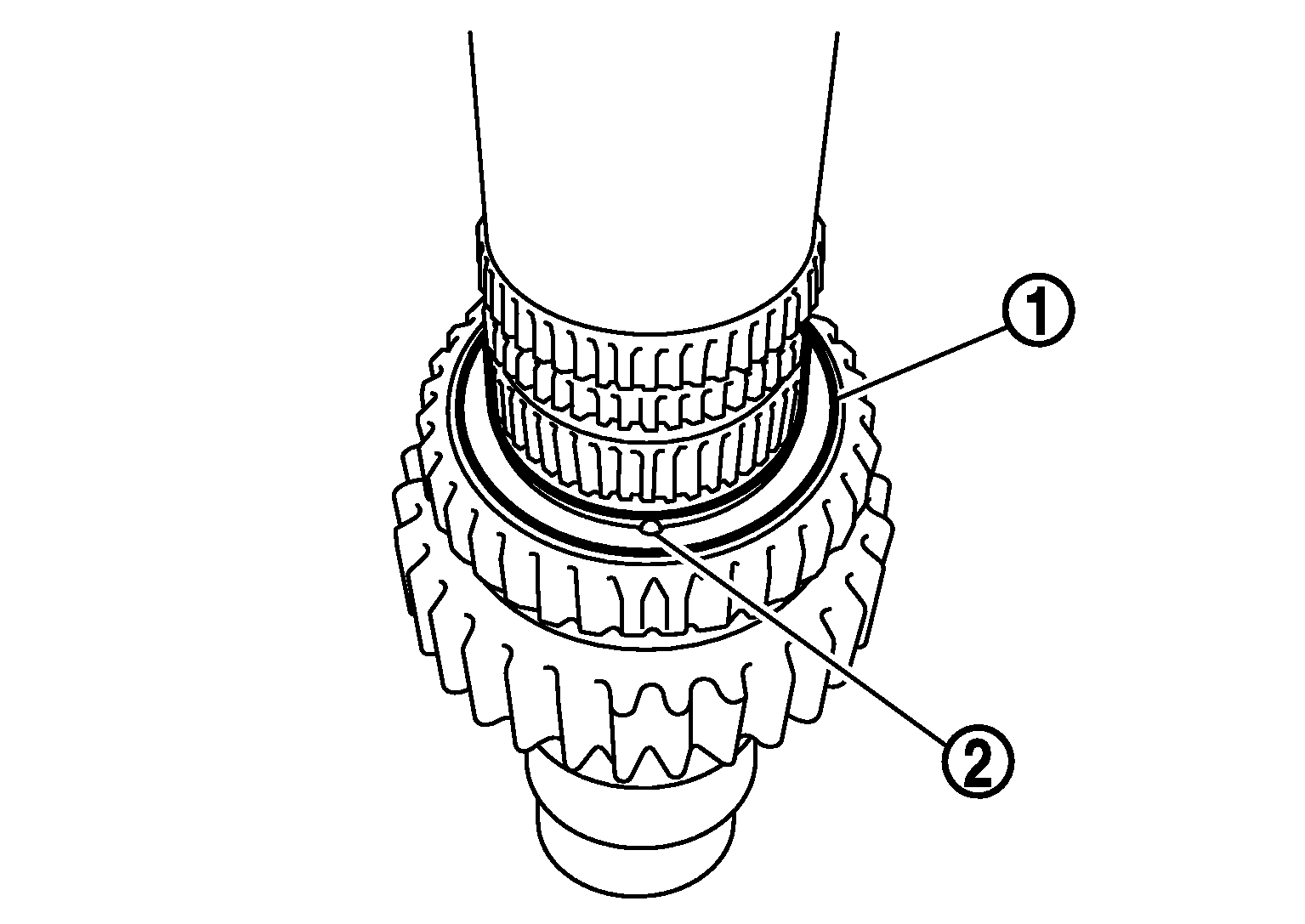

  3. Install spacer SYMBOL and steel ball SYMBOL to main shaft.
    GNSJSDIA0796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the steel ball.
  4. Install snap ring to main shaft.
    CAUTION: Never reuse snap ring.
  5. Install circlip SYMBOL to notch SYMBOL of the electric controlled coupling.
    GNSJSDIA0858Z-858Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front side
    CAUTION:
    • Never install the circlip to the notches other than notch SYMBOL .
    • Never install the circlip from the electric controlled coupling rear side.
    • Never reduce the outer diameter of circlip to less than 43.2 mm (1.701 in).
    • Never damage electric control coupling spline, bush, etc.
    • Never reuse circlip.
    • Never reuse O-ring of AWD solenoid harness connector. When replace it, replace electric controlled coupling.
  6. Install electric controlled coupling to main shaft.
    CAUTION: Securely insert it until locked.

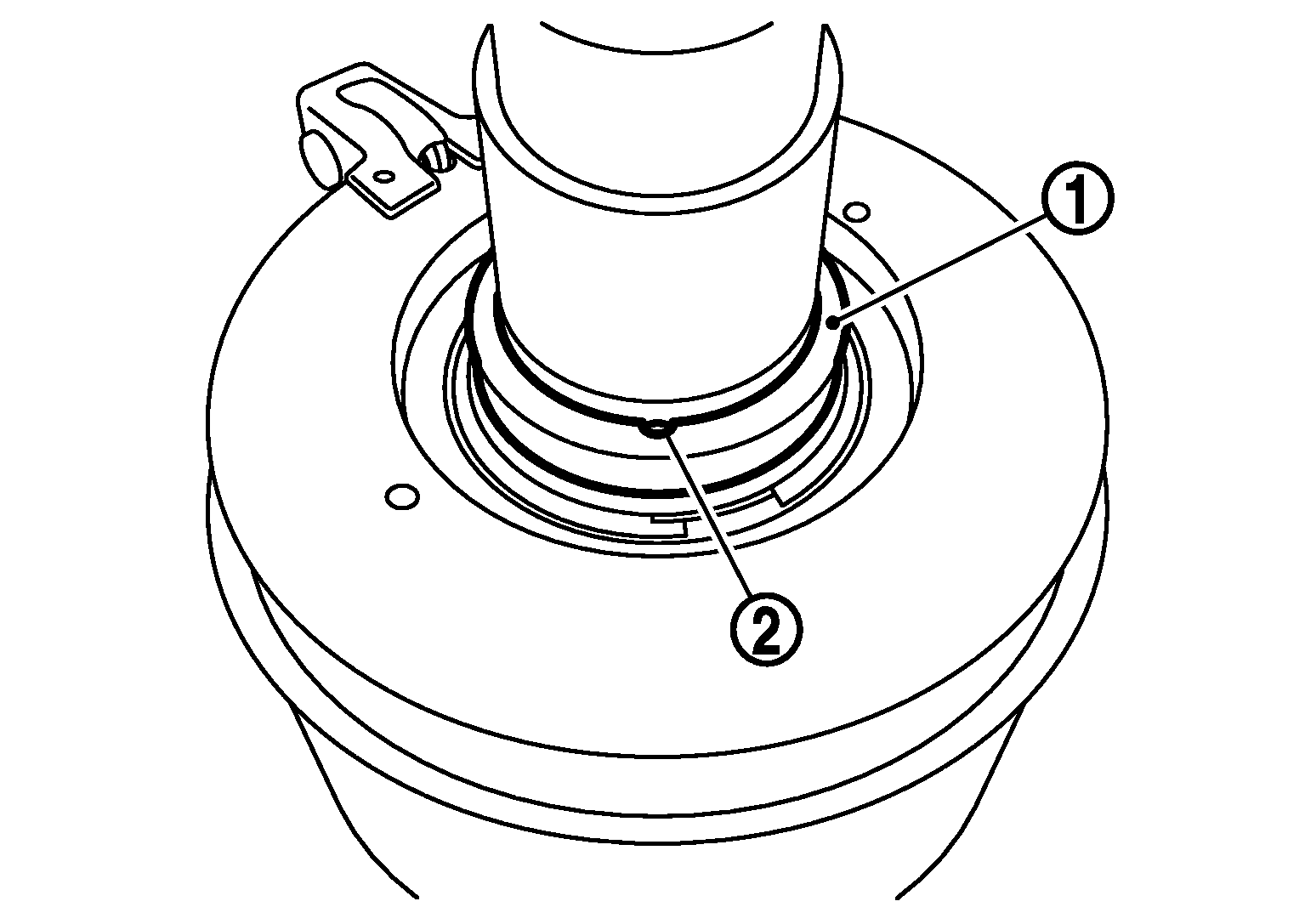

  7. Install spacer SYMBOL and steel ball SYMBOL to main shaft.
    GNSJPDIE0124Z-124Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the steel ball.
  8. Install snap ring SYMBOL to main shaft.
    GNSJPDIE0137Z-137Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never reuse snap ring.
  9. Install main shaft assembly to rear case, then install front case and rear case. Refer to Disassembly and Assembly .
