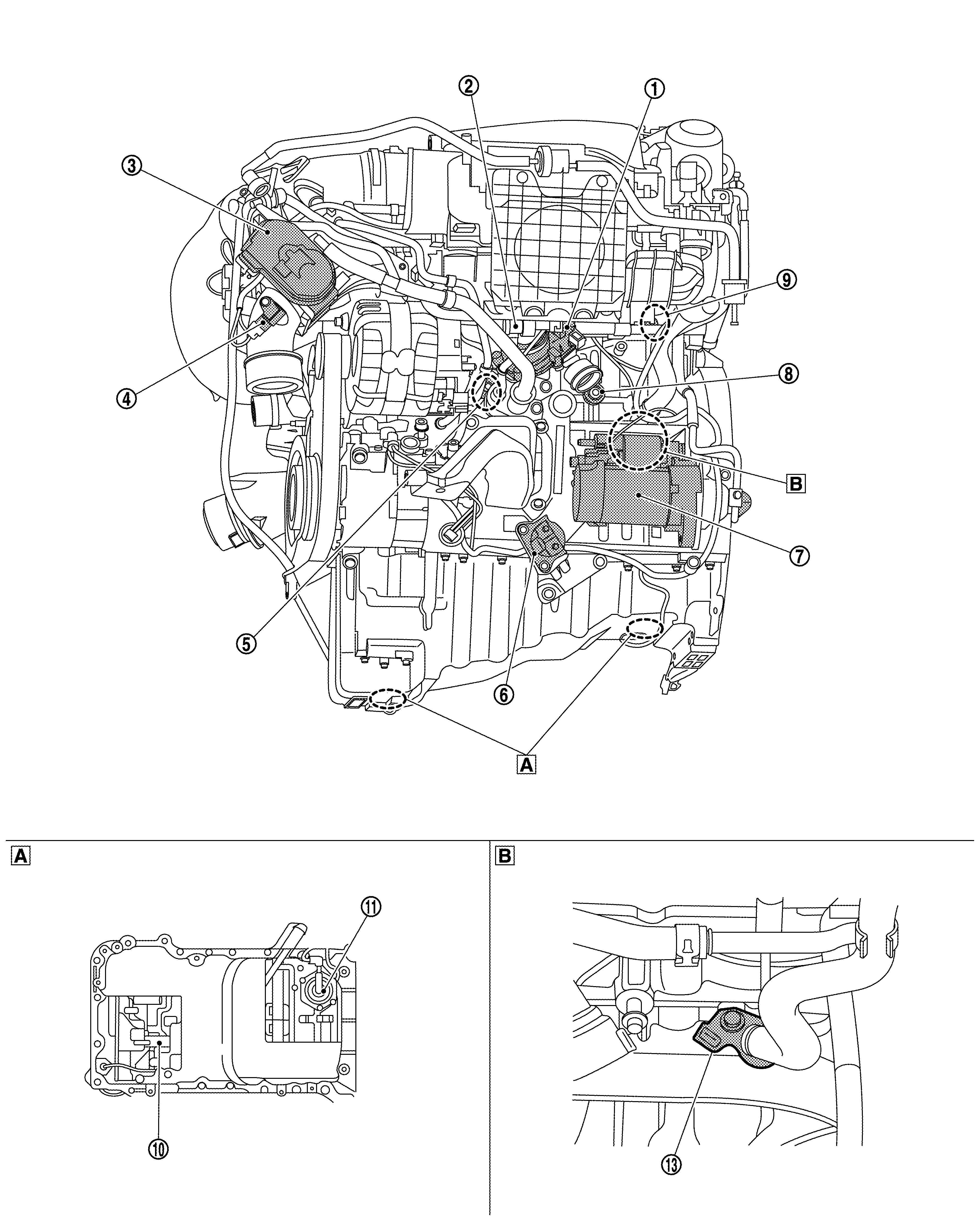

Engine Compartment (Left Side)
|
|
Oil pan |
|
Left side of cylinder block |
|
No. |
Component |
Function |
|
|
Coolant thermostat heater element |
|
|
|
Partial load operation crankcase ventilation valve |
|
|
|
Throttle valve actuator |
|
|
|
Pressure sensor upstream of throttle valve |
Senses charge air pressure downstream of throttle valve. |
|
|
Knock sensor 1 |
|
|
|
Engine restart bypass relay |
|
|
|
Starter motor |
|
|
|
Knock sensor 2 |
|
|
|
Engine coolant temperature sensor |
Senses a engine coolant temperature. |
|
|
Engine oil pump valve |
-- |
|
|
Engine oil level switch |
-- |
|
|
-- |
-- |
|
|
Blow by sensor |
Senses a leak of blow-by hose. |
