Disassembly and Assembly: Disassembly

  1. Remove front door regulator assembly. Refer to Removal and Installation .

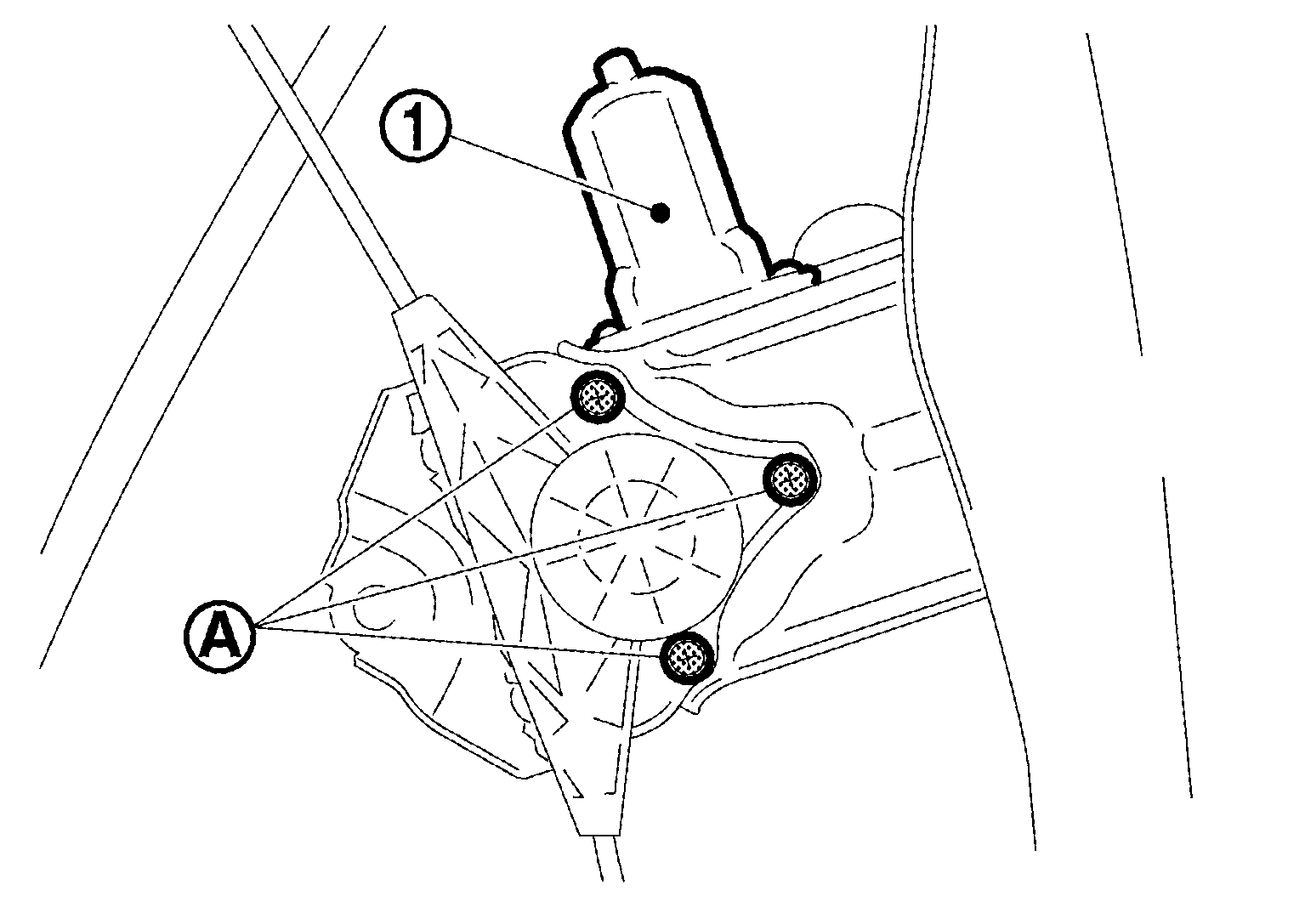

  2. Remove front door power window motor mounting bolts SYMBOL , and then remove front door power window motor SYMBOL .
    GNSJMKIB1962Z-962Courtesy of NISSAN NORTH AMERICA, INC.
