Steering Force Actuator: Notes

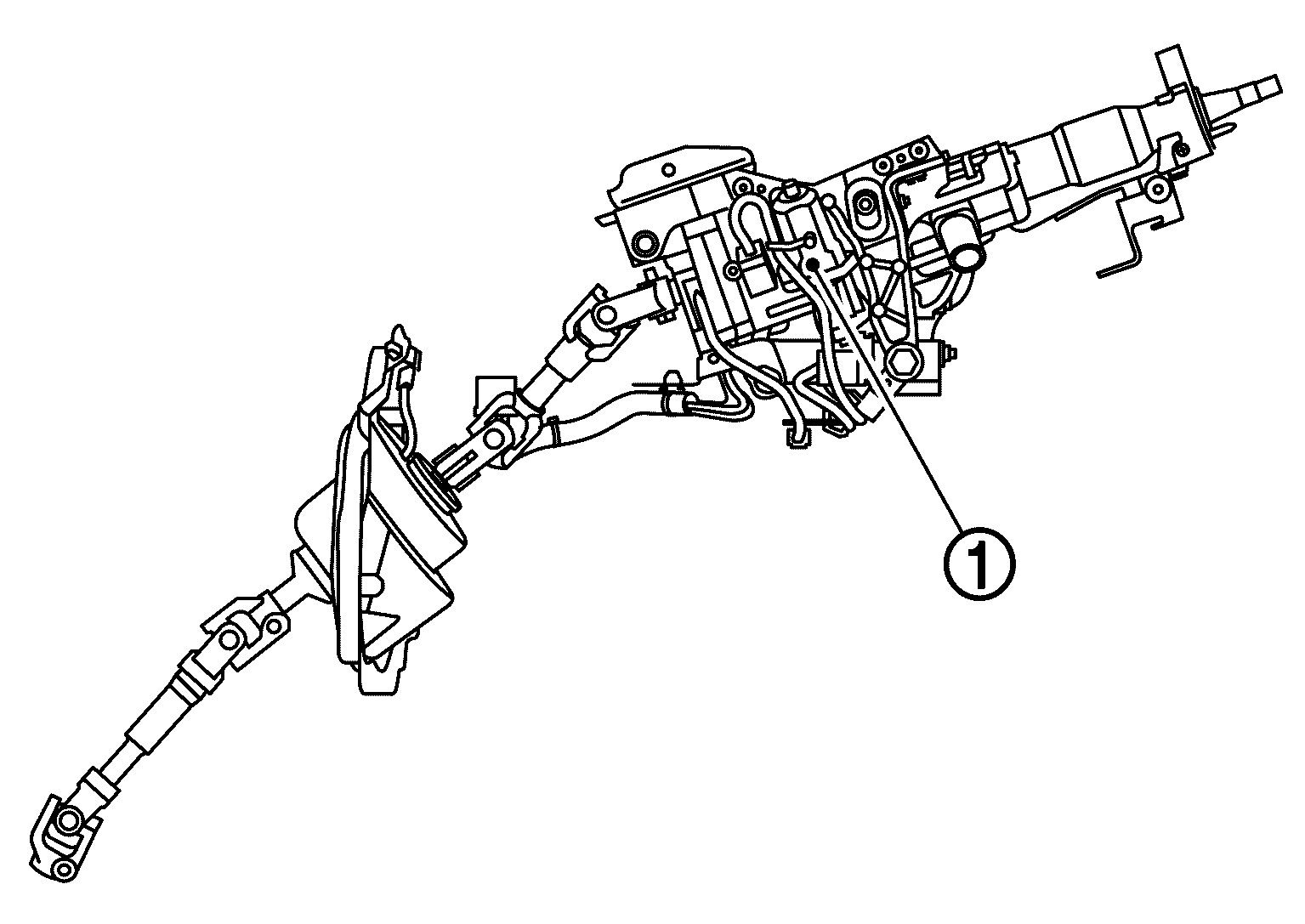

Steering force actuator SYMBOL mainly consists of the steering force motor, the force motor angle sensor, and the force motor temperature sensor.

GNSJSGIA1212Z-212Courtesy of NISSAN NORTH AMERICA, INC.
