Home >> Infiniti >> 2018 >> Q60 Pure, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Removal And Installation >> Rear Power Window Switch >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove rear door finisher. Refer to Removal and Installation .

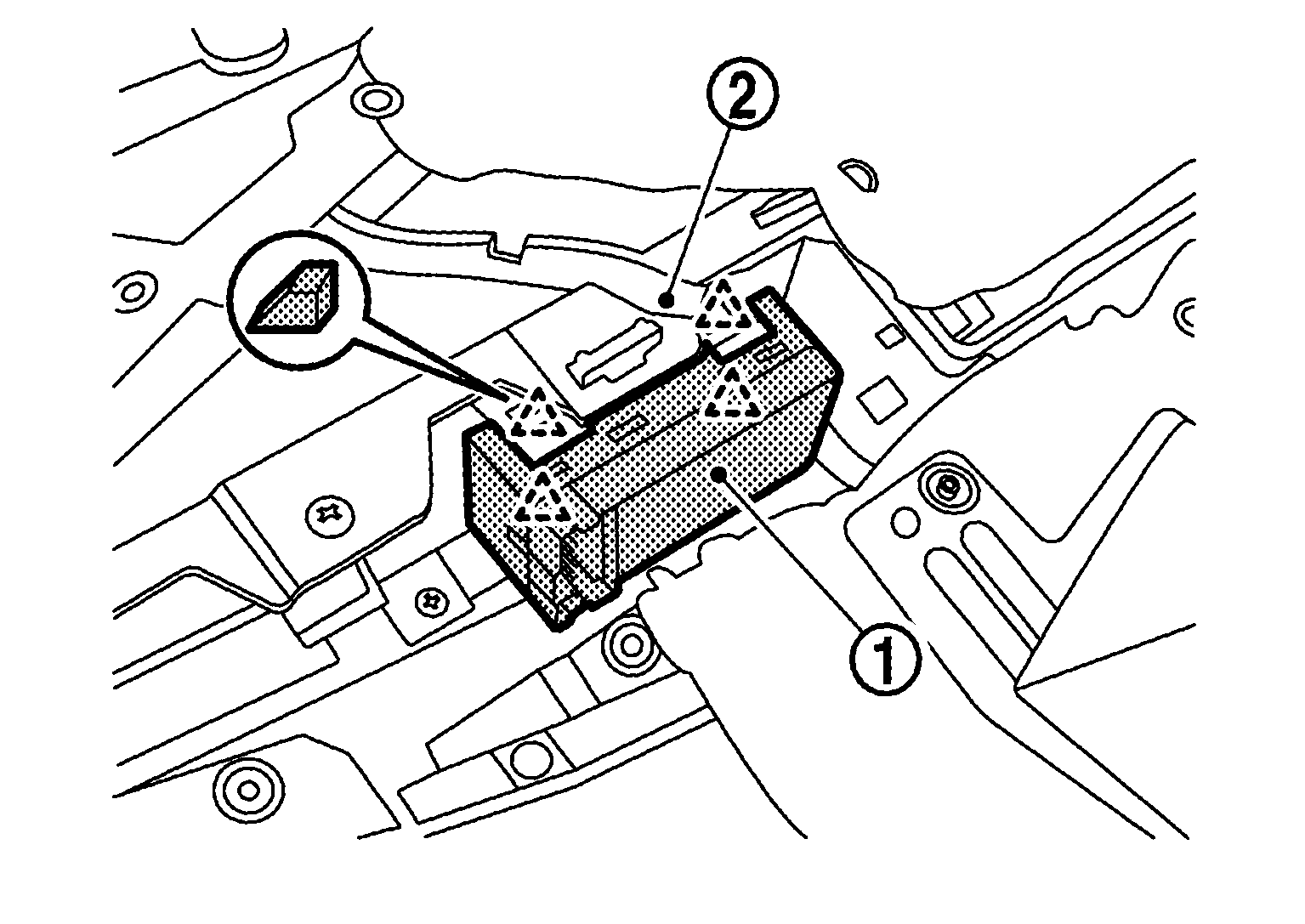

  2. Remove rear power window switch SYMBOL from rear door finisher SYMBOL .
    GNSJMKIB1741Z-741Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

: Pawl
