Circuit Diagram (Turbo Low Pressure Model)

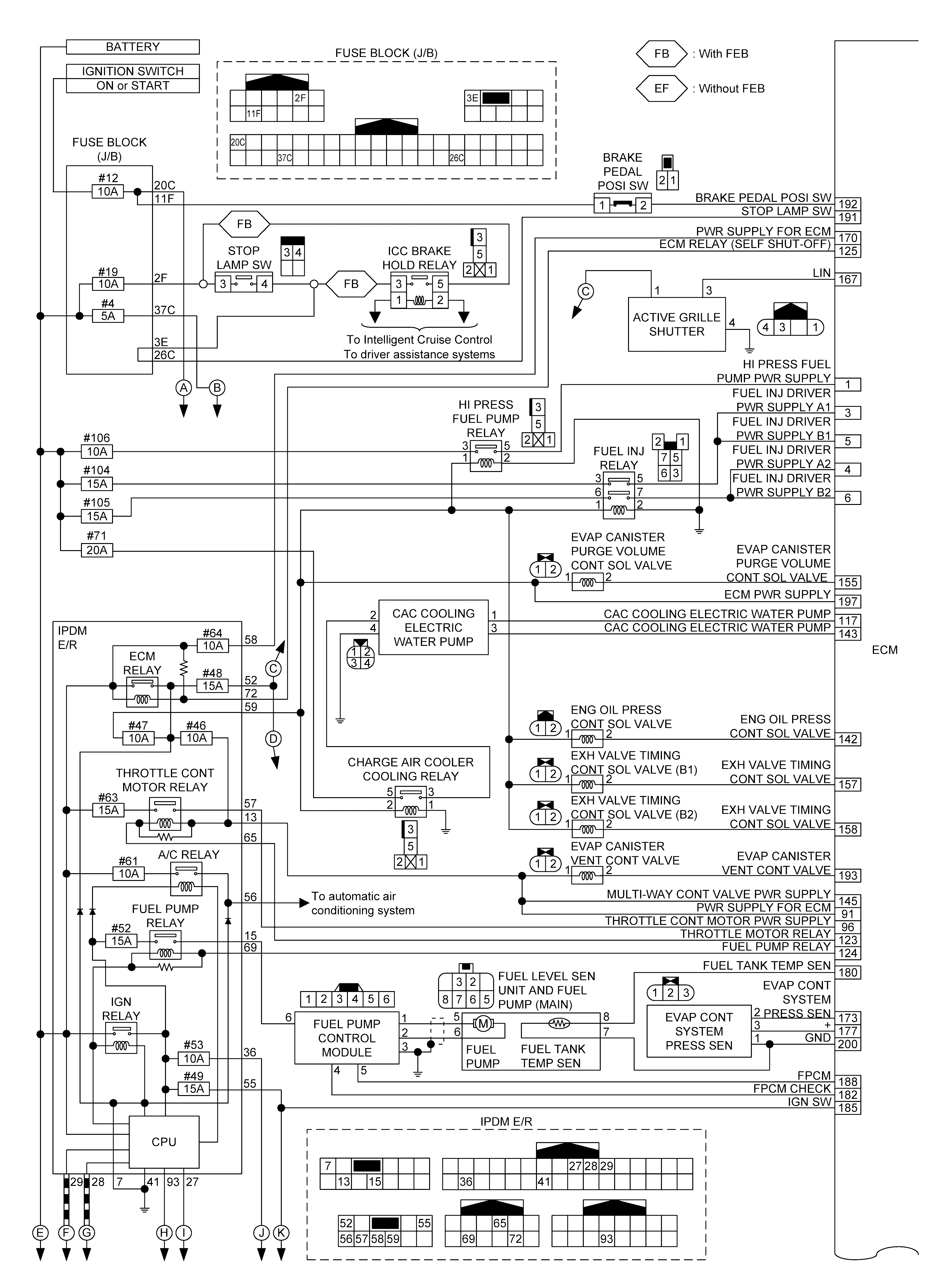

GNSILL0157509-509

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSBIB0603GB-603

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSBIB0604GB-604

Courtesy of NISSAN NORTH AMERICA, INC.

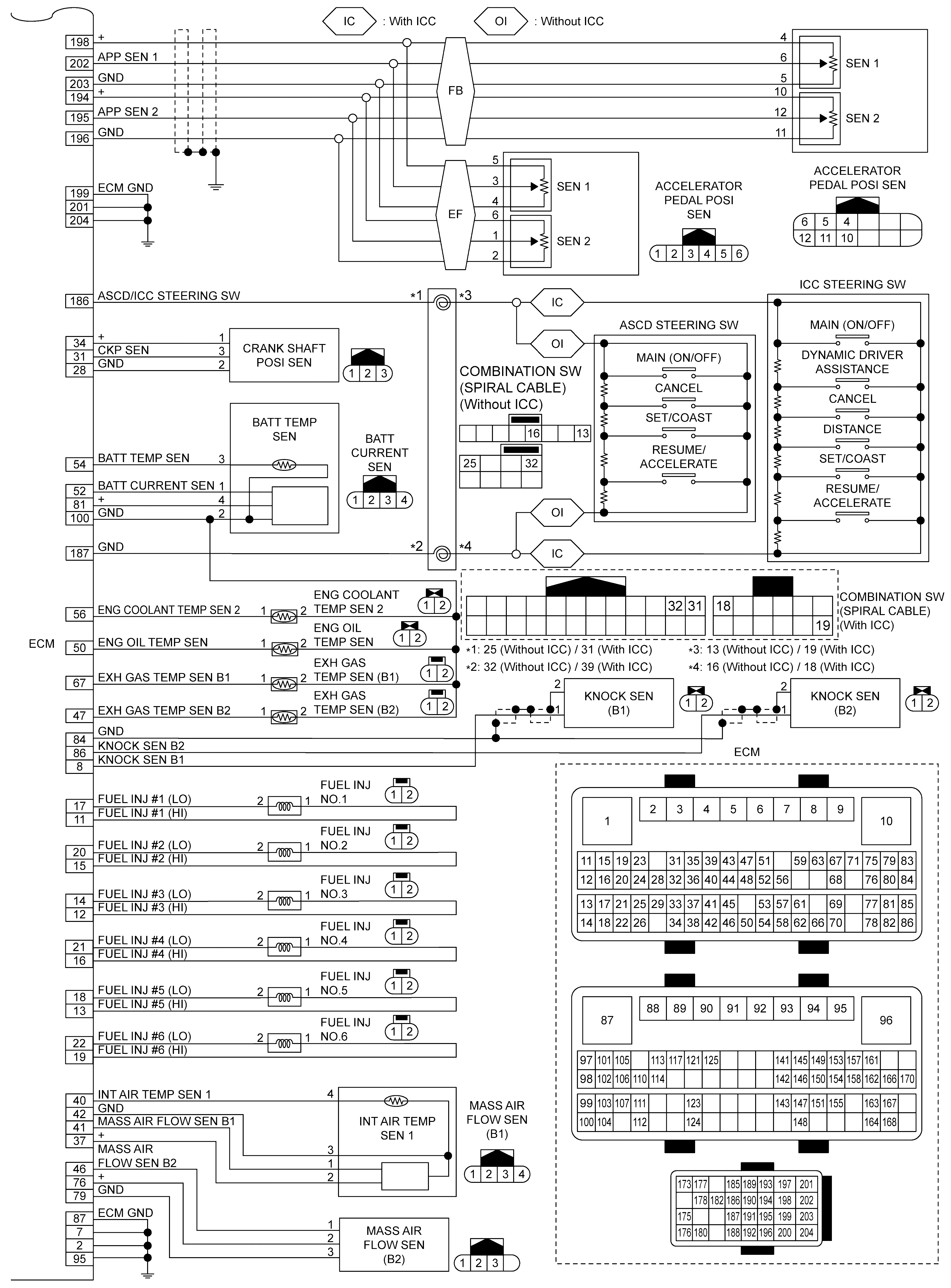

GNSILL0157510-510

Courtesy of NISSAN NORTH AMERICA, INC.
