Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

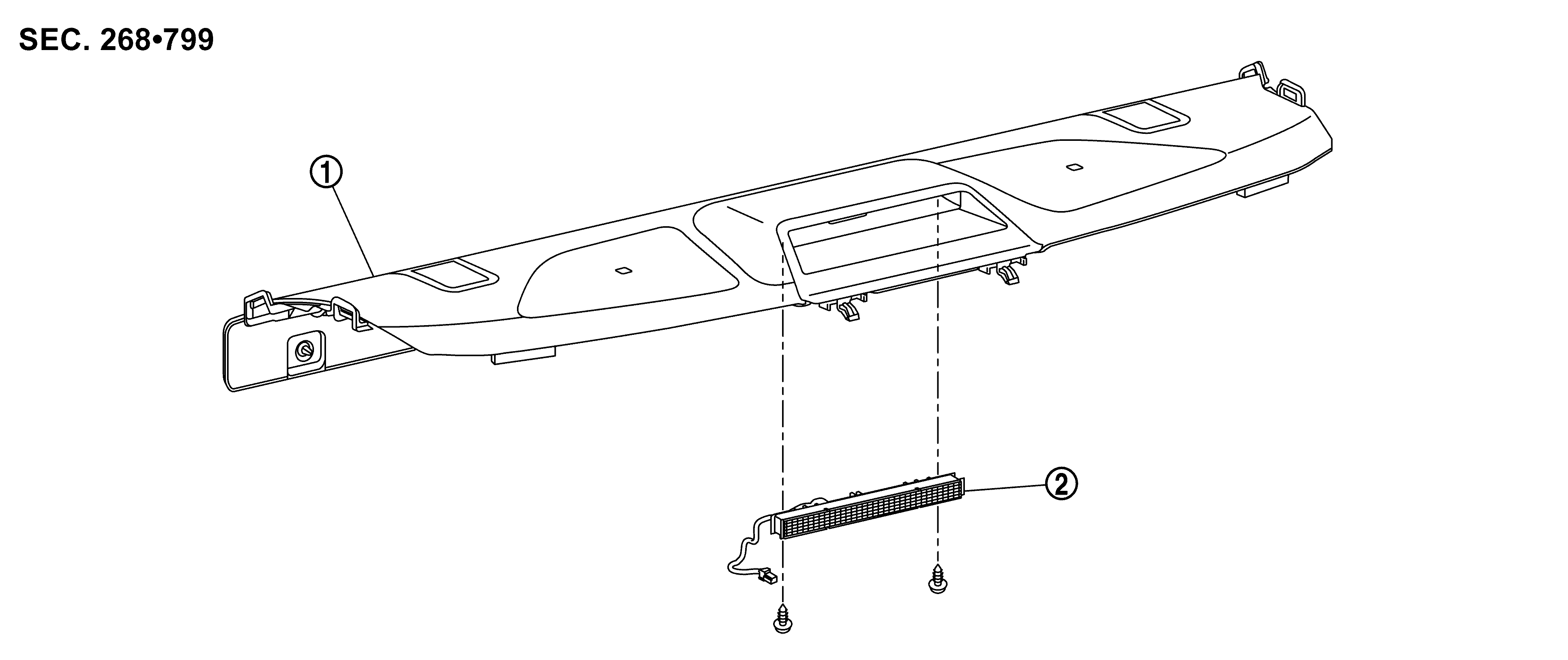

GNSJMLIA7690Z-690Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear parcel shelf finisher

SYMBOL

High-mounted stop lamp
