Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

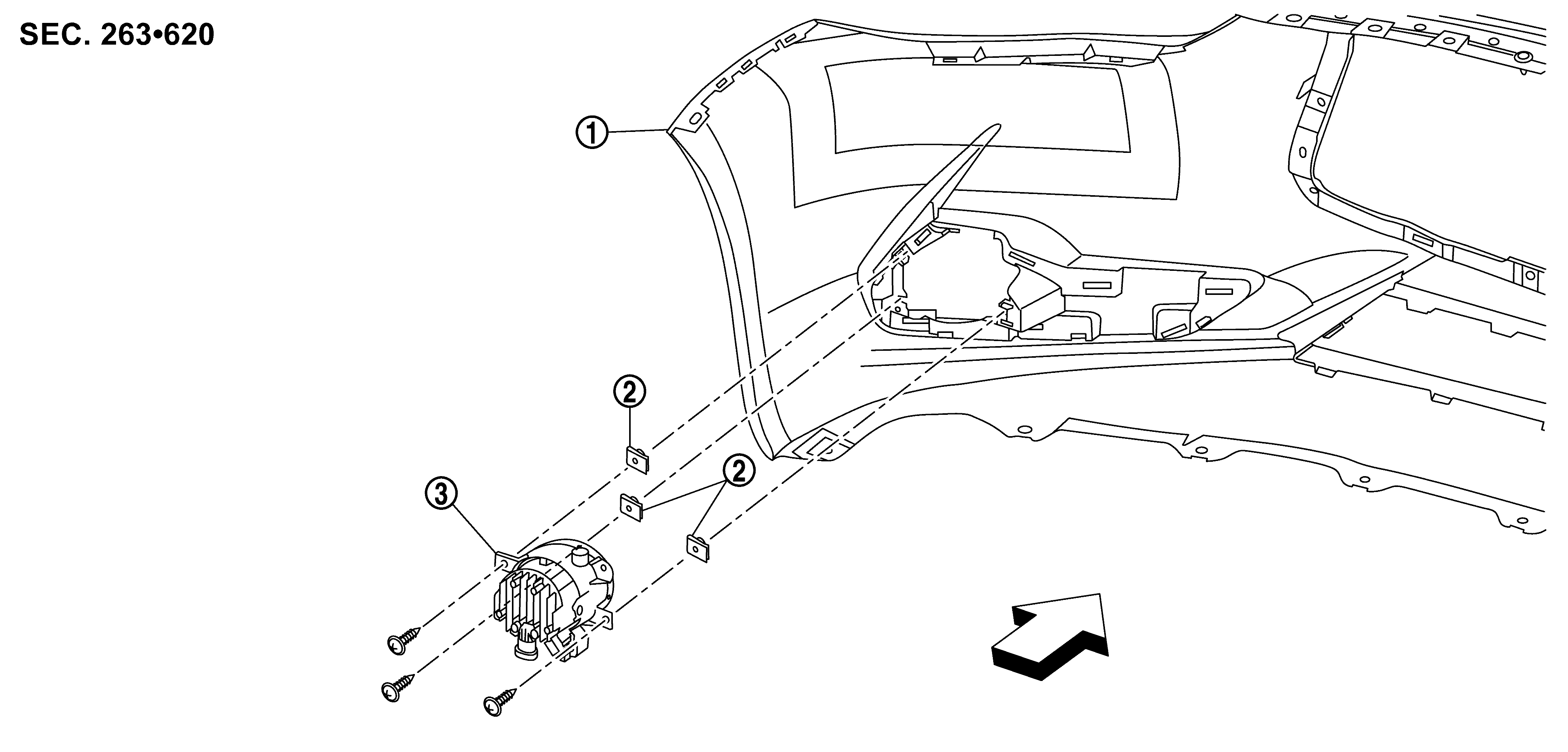

GNSJMLIA7635Z-635Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front bumper fascia

SYMBOL

U nut

SYMBOL

Front fog lamp

SYMBOL

: Vehicle front
