Exploded View: Removal

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

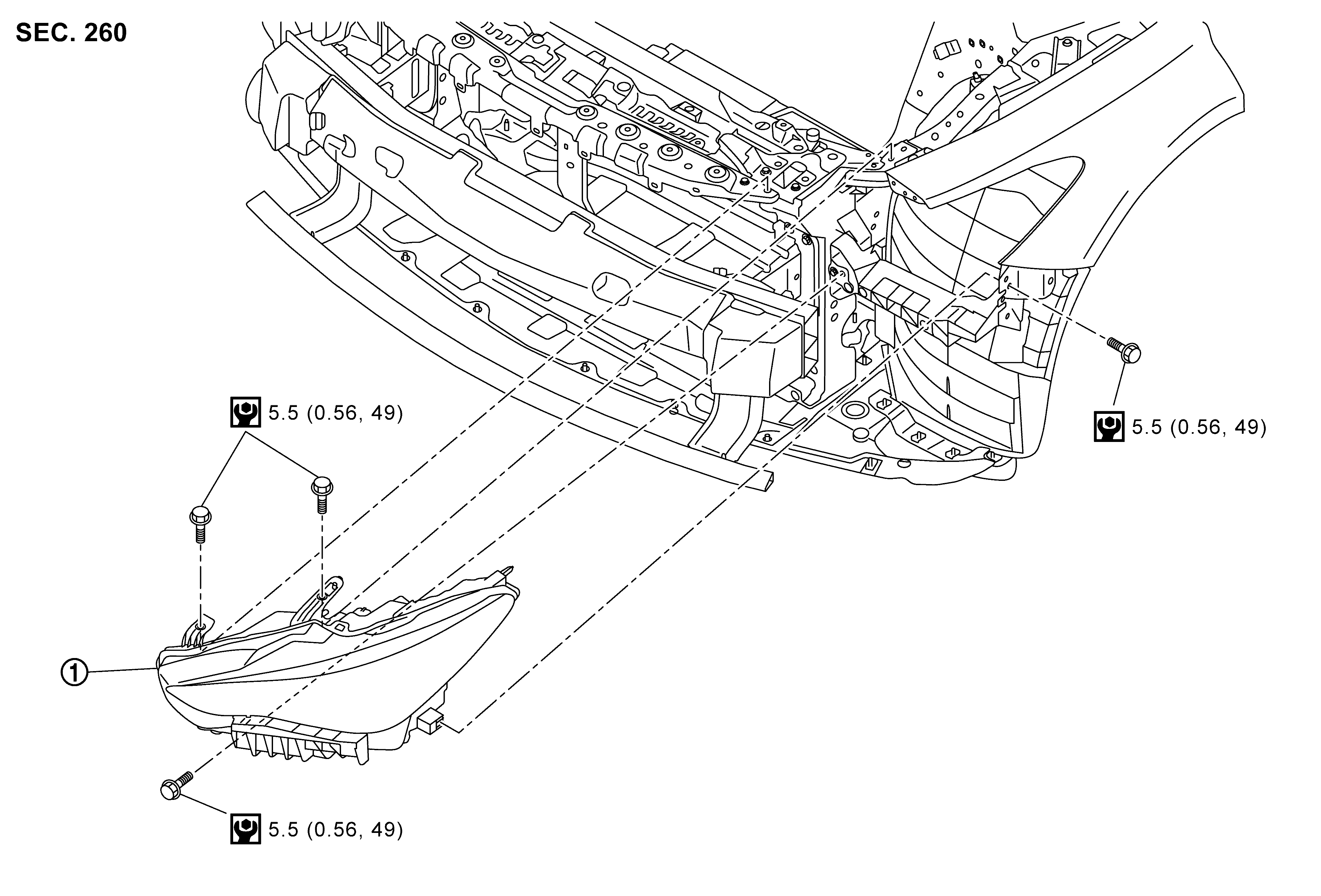

Fig 1: Front Combination Lamp Components With Torque Specification
GNSJMLIA7633GB-633Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front combination lamp

SYMBOL

: N.m (kg-m, in-lb)
