Exploded View: Disassembly

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

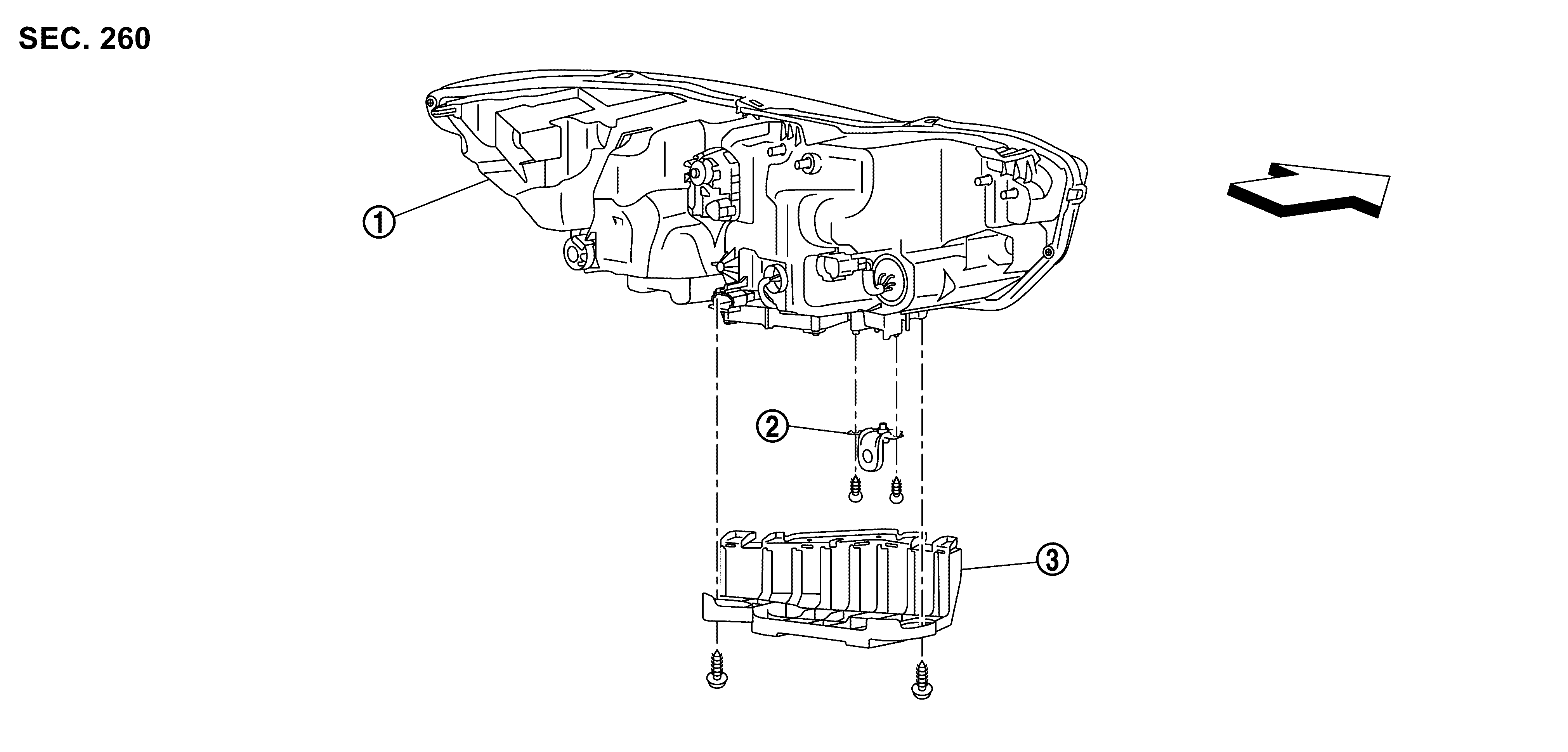

GNSJMLIA7634Z-634Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front combination lamp

SYMBOL

Front combination lamp bracket A

SYMBOL

Front combination lamp bracket B

SYMBOL

: Vehicle front
