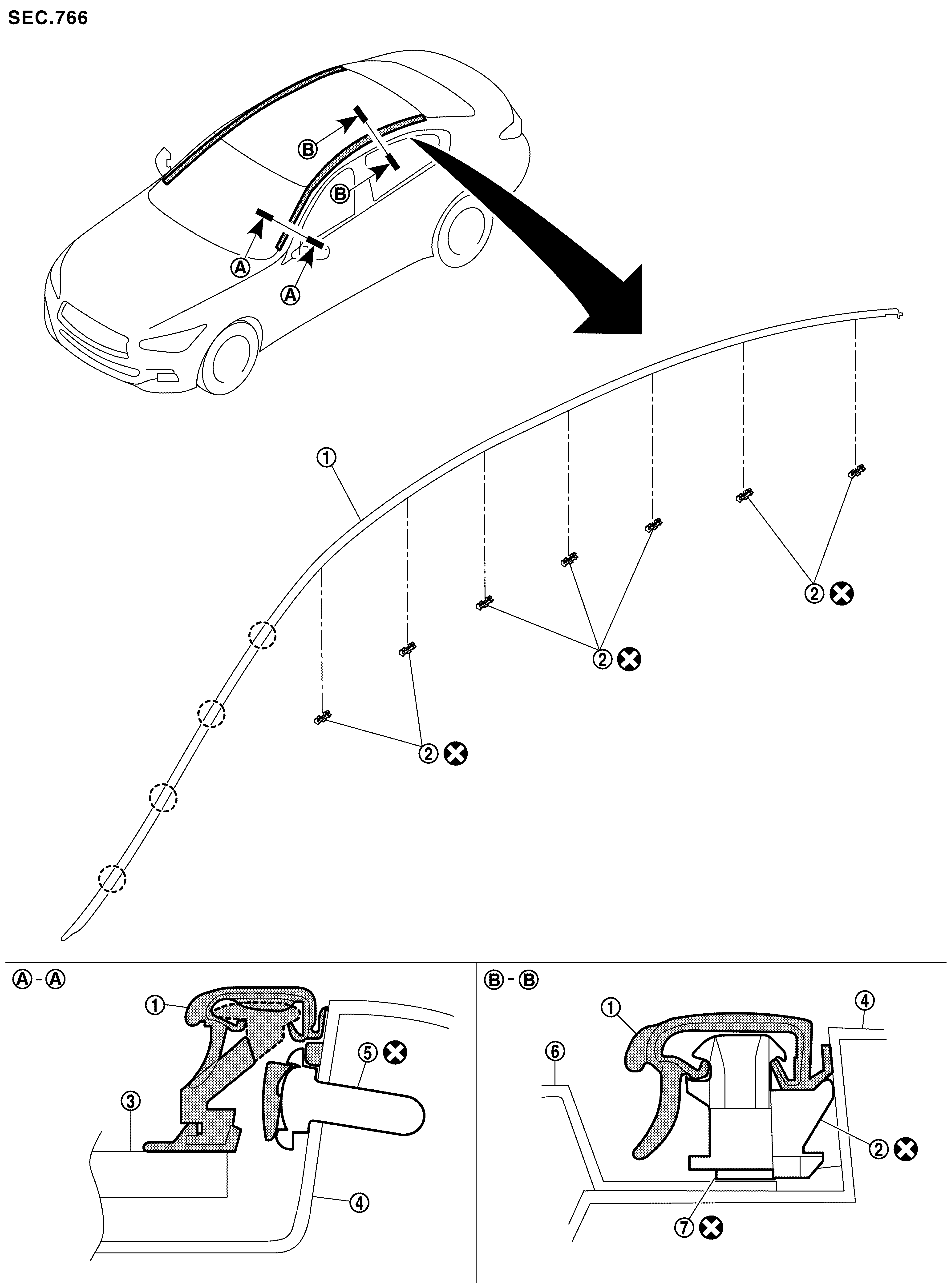

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Roof side molding
|
|
Roof side molding clip
|
|
Windshield glass
|
|
|
Body side panel
|
|
Rivet
|
|
Roof panel
|
|
|
Adhesive
|
|
|
: Clip
|
|
|
: Always replace after every disassembly.
|
