Exploded View

WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

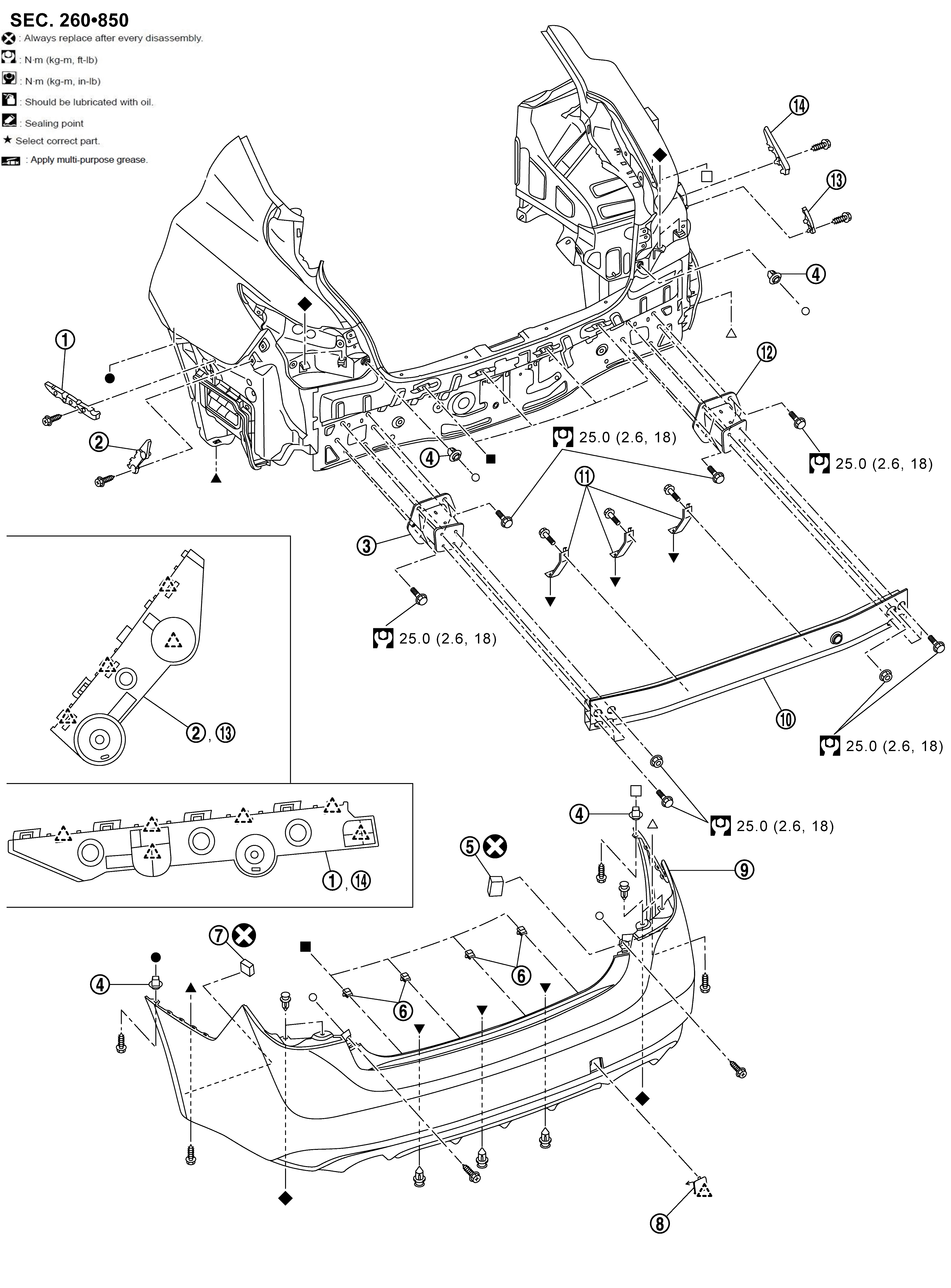

Fig 1: Rear Bumper Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear bumper side bracket A LH	Rear bumper side bracket B LH	Rear bumper stay LH
	Grommet	Rear bumper side spacer RH	Clip
	Rear bumper side spacer LH	Rear bumper finisher	Rear bumper fascia
	Rear bumper reinforcement	Rear bumper retainer lower	Rear bumper stay RH
	Rear bumper side bracket B RH	Rear bumper side bracket A RH
	: Pawl
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
, , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
