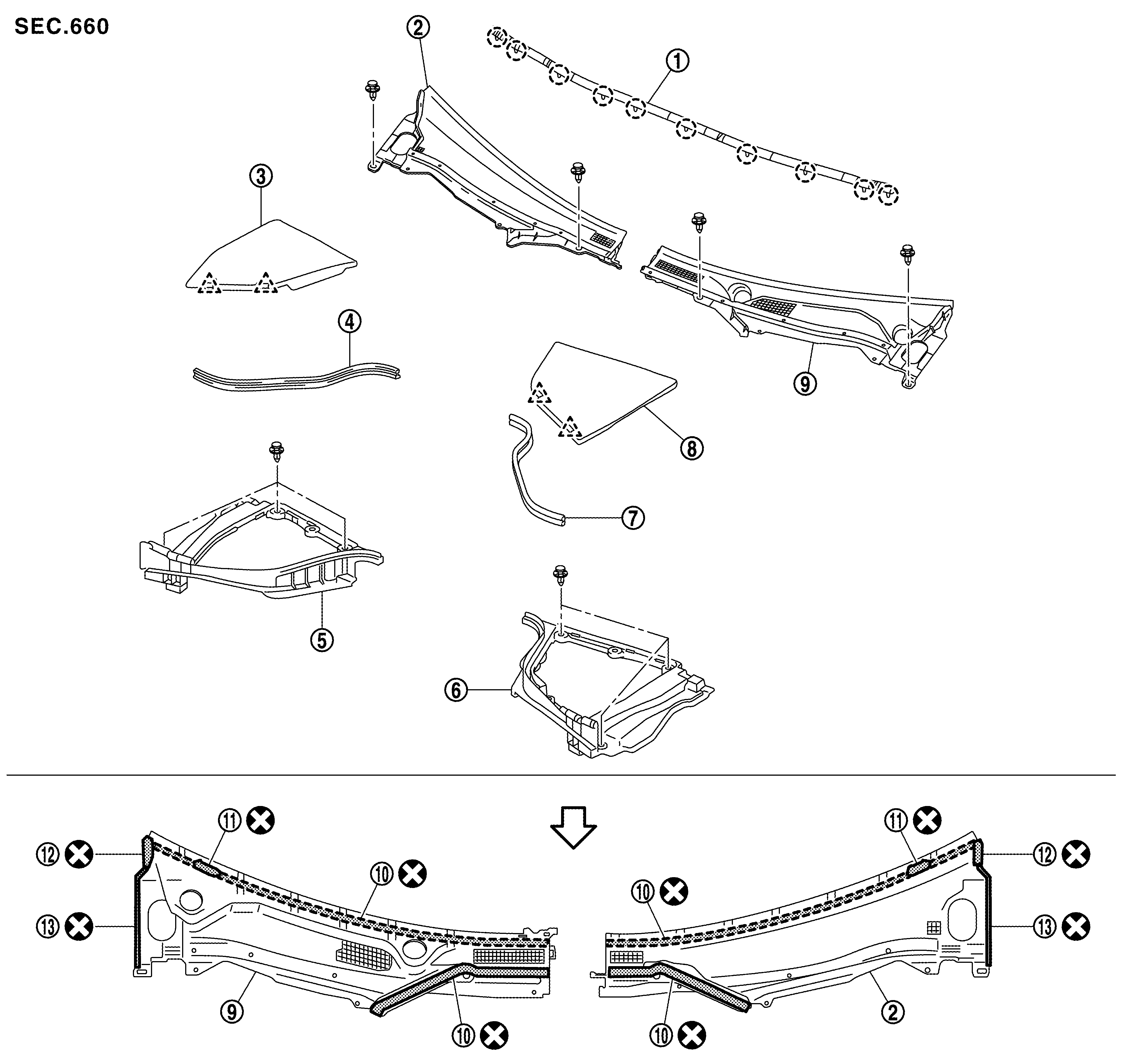

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Cowl top seal |
|
Cowl top cover RH |
|
Battery cover |
|
|
Cowl top cover seal RH |
|
Hood Ledge cover RH |
|
Hood Ledge cover LH |
|
|
Cowl top cover seal LH |
|
Brake master cylinder cover |
|
Cowl top cover LH |
|
|
EPT seal [t: 3.0 mm (0.118 in)] |
|
EPT seal [t: 8.0 mm (0.315 in)] |
|
EPT seal [t: 12.0 mm (0.472 in)] |
|
|
EPT seal [t: 5.0 mm (0.197 in)] |
||||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Vehicle front |
||||
|
|
: Always replace after every disassembly. |
||||
