Around View Monitor Screen

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

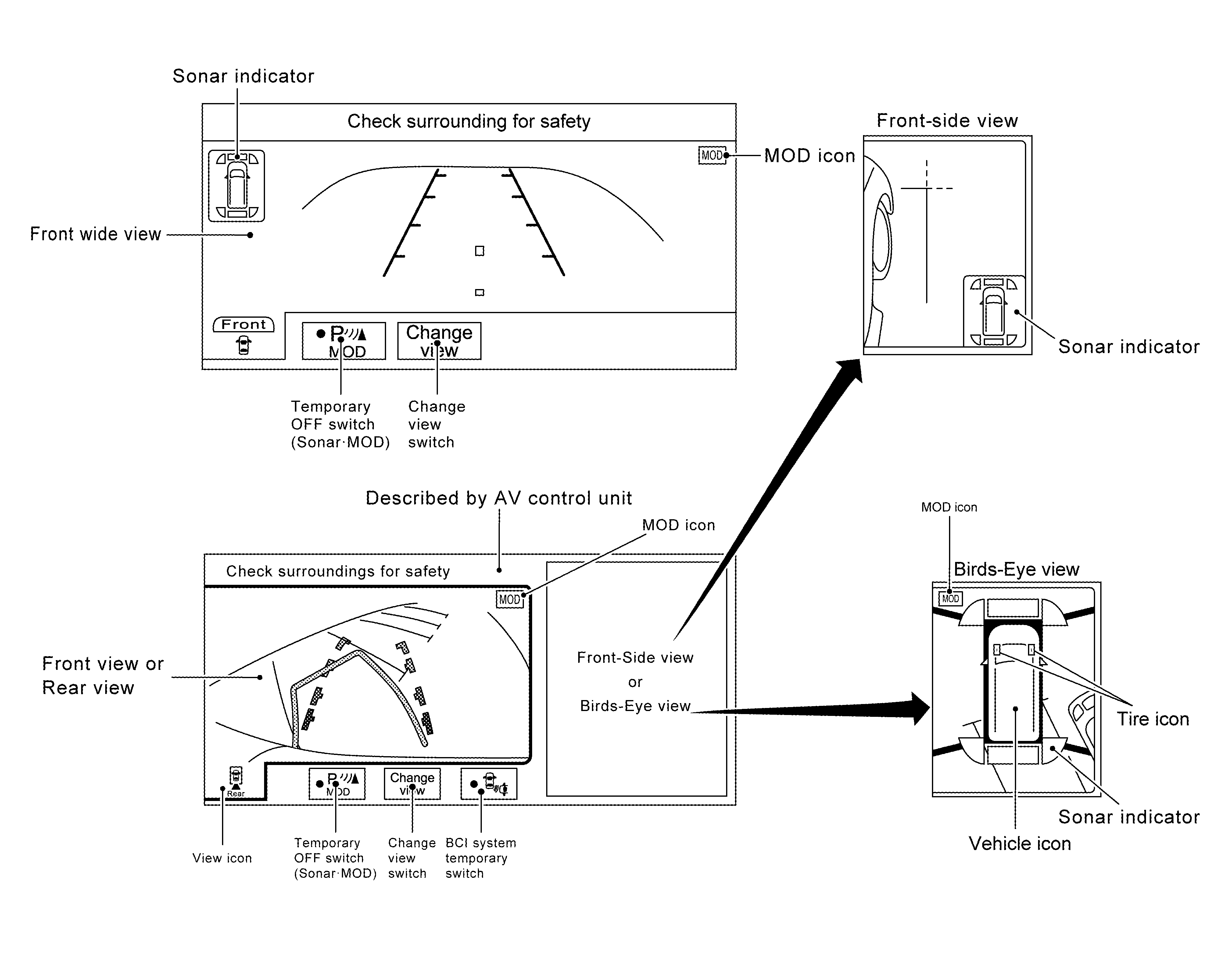

Around view monitor combines and displays the travel direction view and "Birds-Eye view", "Front-Side view" and then it displays the sonar indicator on the "Birds-Eye view", "Front-Side view", "Front wide view".
Display control unit renders the "Change View" switch, view icon, warning message on display.

Courtesy of NISSAN NORTH AMERICA, INC.
