Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

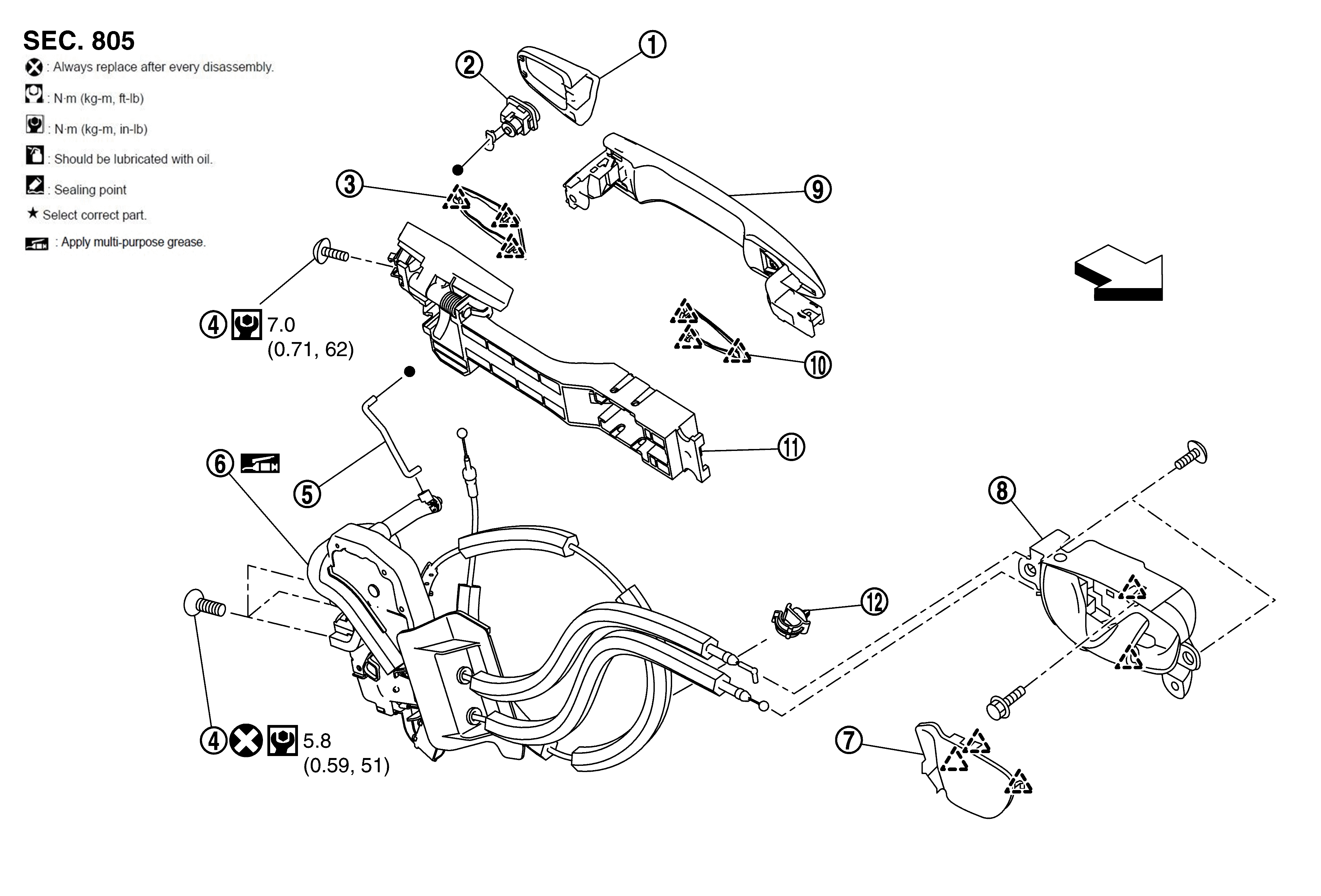

Fig 1: Front Door Lock Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Outside handle escutcheon	Door lock cylinder	Rear gasket
	TORX bolt	Key rod (driver side)	Door lock assembly
	Inside handle escutcheon	Inside handle	Outside handle grip
	Front gasket	Outside handle bracket	Cable clip
	: Pawl
	: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: Body grease
: Indicates that the part is connected at points with same symbol in actual vehicle.
