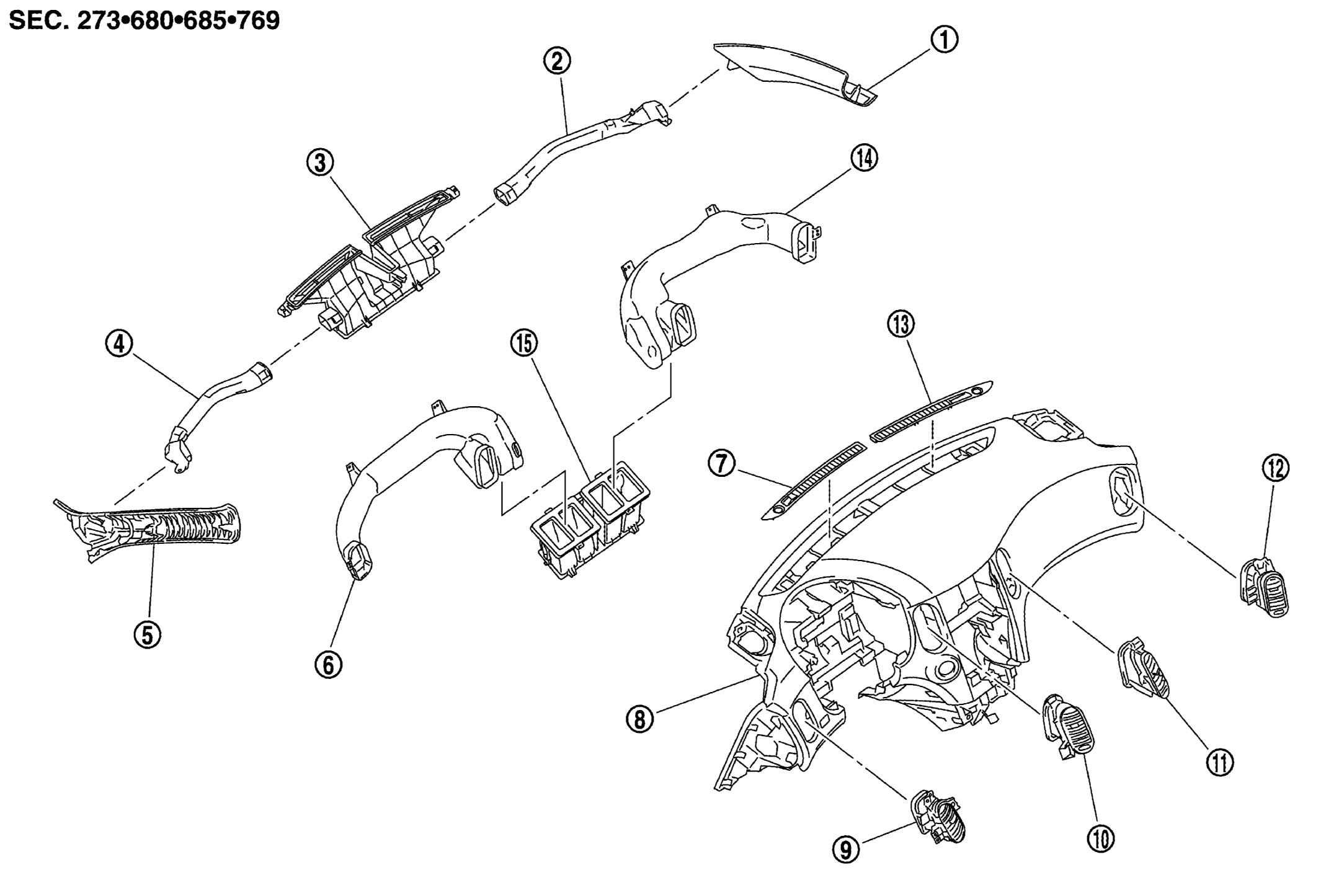

Exploded View With Torque Specifications: Front
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Side defroster duct RH (Front pillar garnish RH) |
2. | Side defroster nozzle RH | 3. | Defroster nozzle |
| 4. | Side defroster nozzle LH | 5. | Side defroster duct LH (Front pillar garnish LH) |
6. | Ventilator duct LH |
| 7. | Front defroster grille LH | 8. | Instrument panel assembly | 9. | Side ventilator grille LH |
| 10. | Center ventilator grille LH | 11. | Center ventilator grille RH | 12. | Side ventilator grille RH |
| 13. | Front defroster grille RH | 14. | Ventilator duct RH | 15. | Adaptor duct |
