Without ICC
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

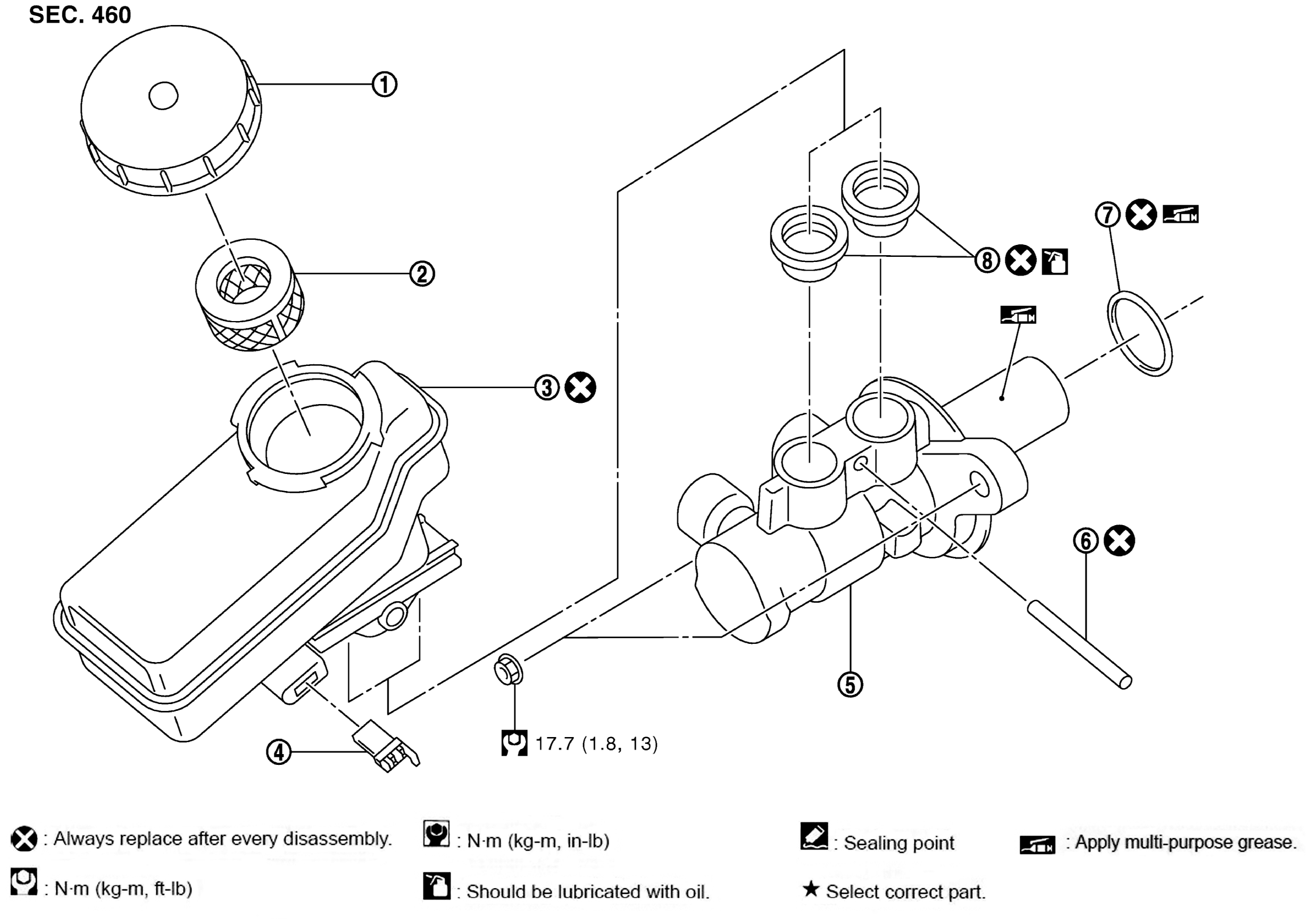

| 1. | Reservoir cap | 2. | Oil strainer | 3. | Reservoir tank |
| 4. | Brake fluid level switch connector | 5. | Cylinder body | 6. | Pin |
| 7. | O-ring | 8. | Grommet | ||
| Refer to COMPONENTS for symbols not described on the above. | |||||
