Removal And Installation: Installation
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, and install in the reverse order of removal.
- Do not damage engine mounting insulator and do not spill oil on it.
- For a location with a positioning pin, insert it securely into hole of mating part.
- For a part with a specified installation orientation, refer to component illustration in EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

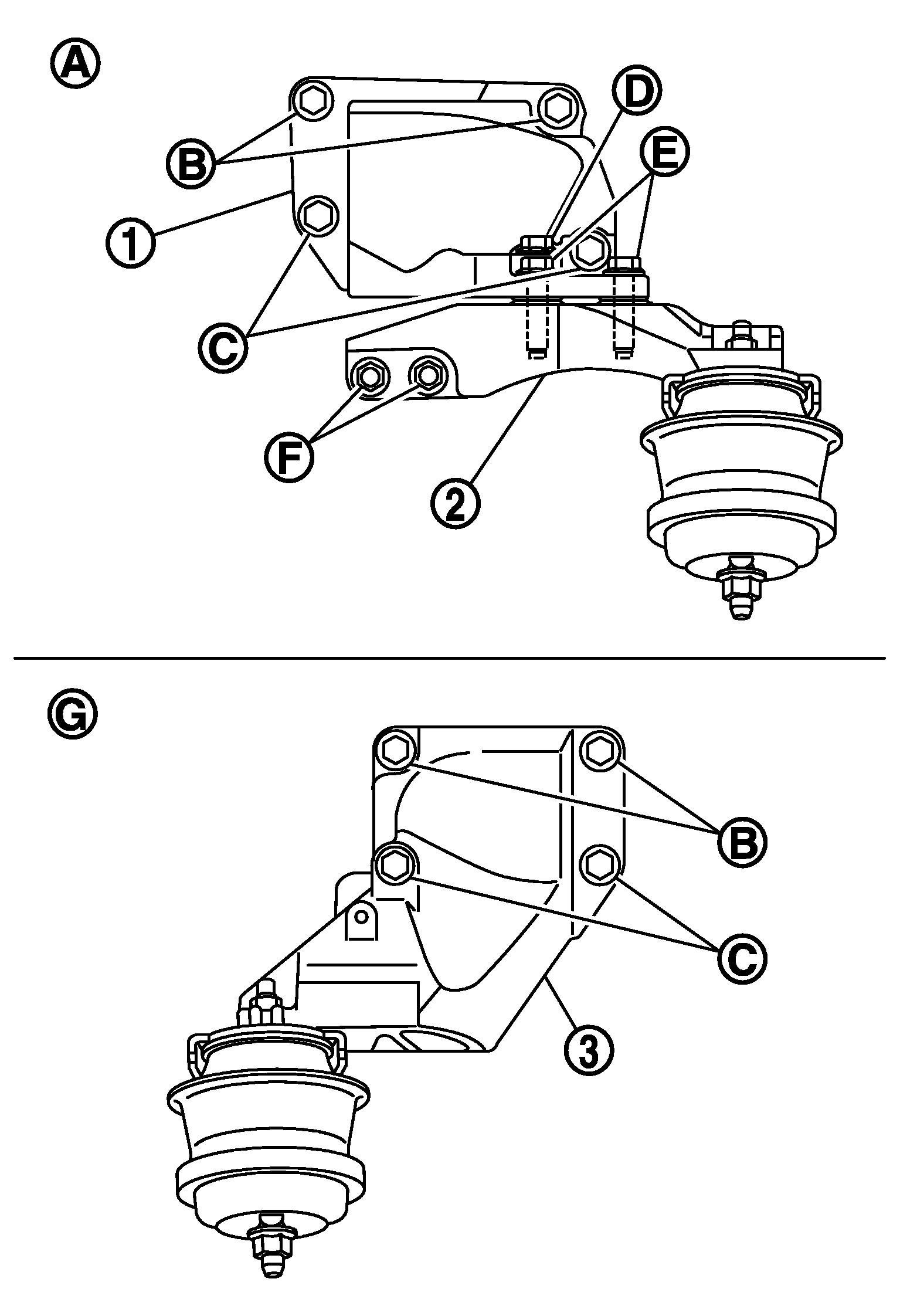

- When installing engine mounting bracket (RH and LH) on cylinder block, tighten two upper bolts [shown as (B) in the illustration] first. Then tighten two lower bolts [shown as (C) in the illustration].
3 : Engine mounting bracket (LH) A : Right side G : Left side - Install engine mounting bracket (RH) (lower) (2) as follows:
- Temporarily tighten mounting bolts [shown as (D), (E) and (F) in the illustration].
- Tighten mounting bolts to the specified torque with following mounting surfaces touched.
- Engine mounting bracket (RH) (1) to engine mounting bracket (RH) (lower) [shown as and in illustration].
- Front final drive to engine mounting bracket (RH) (lower) [shown as in illustration].
- Check all engine mounting insulators are seated properly, then tighten mounting nuts.

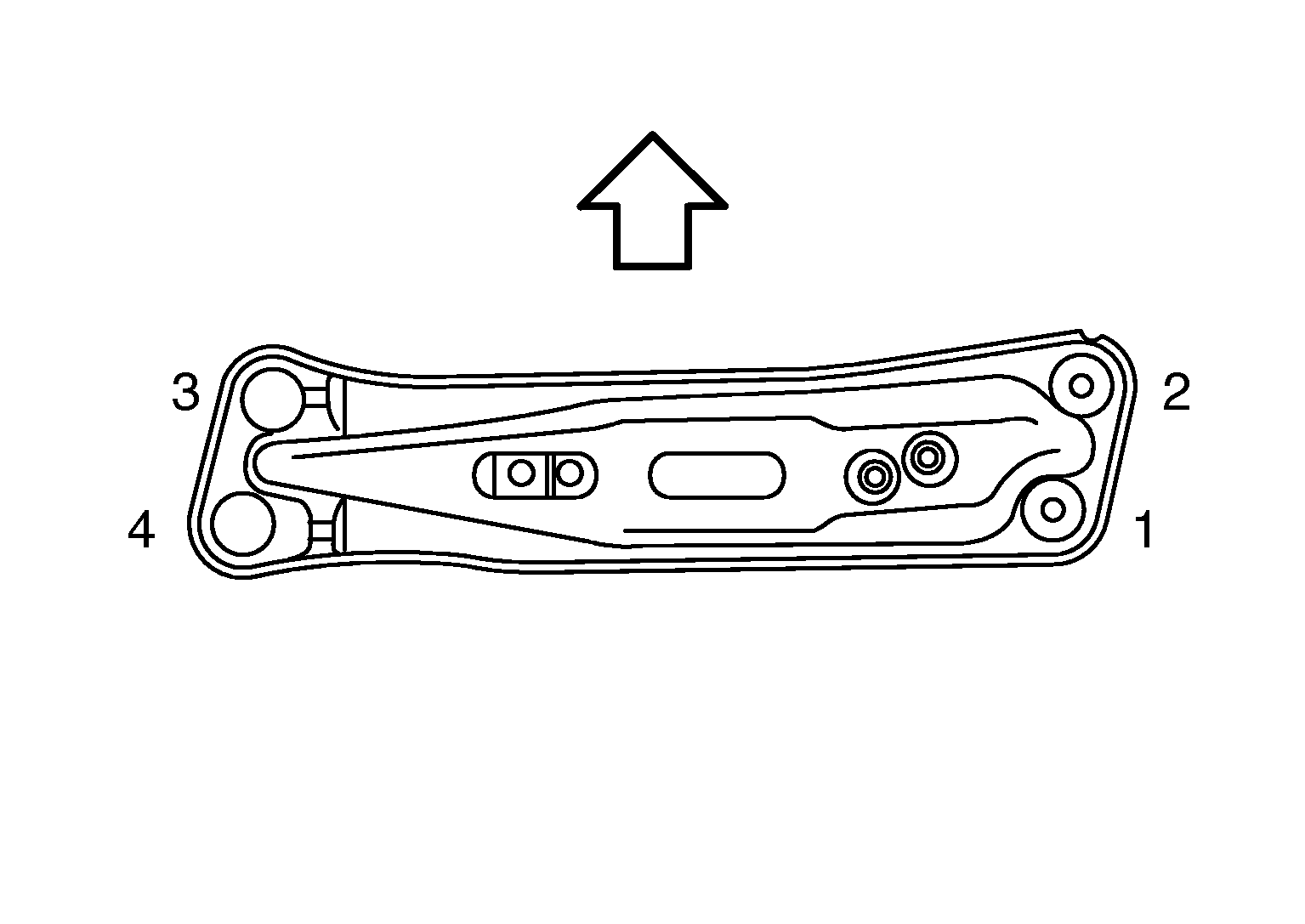

- Tighten rear engine mounting member bolts in numerical order as shown in the illustration.
: Vehicle front
