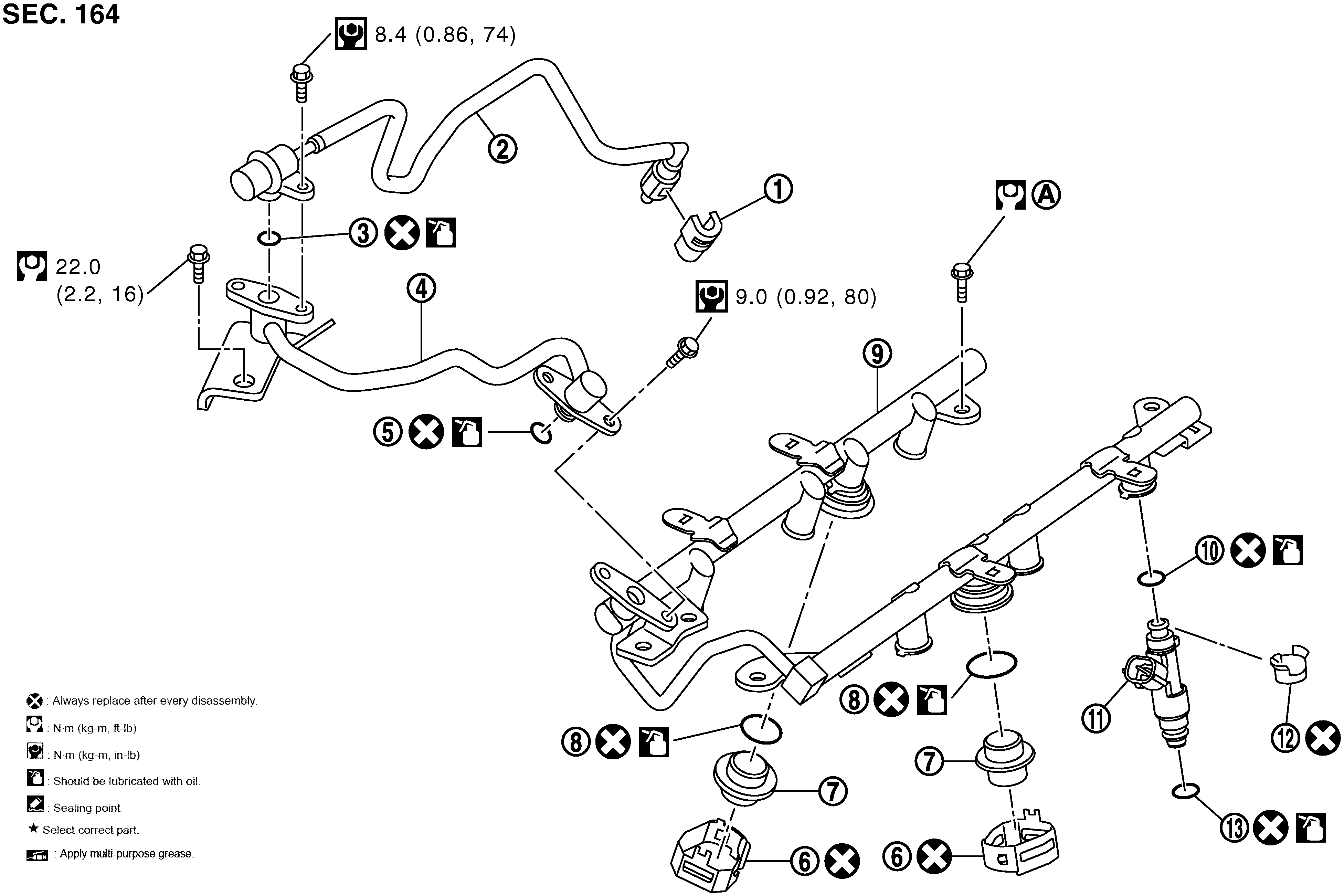

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Quick connector cap | 2. | Fuel feed hose (with damper) | 3. | O - ring |
| 4. | Fuel sub tube | 5. | O - ring | 6. | Clip |
| 7. | Fuel damper | 8. | O - ring | 9. | Fuel tube |
| 10. | O - ring (black) | 11. | Fuel injector | 12. | Clip |
| 13. | O - ring (green) | ||||
| A. | Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION | ||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
CAUTION:
Never remove or disassemble parts unless instructed as shown in the illustration.
