Climate Controlled Seat
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

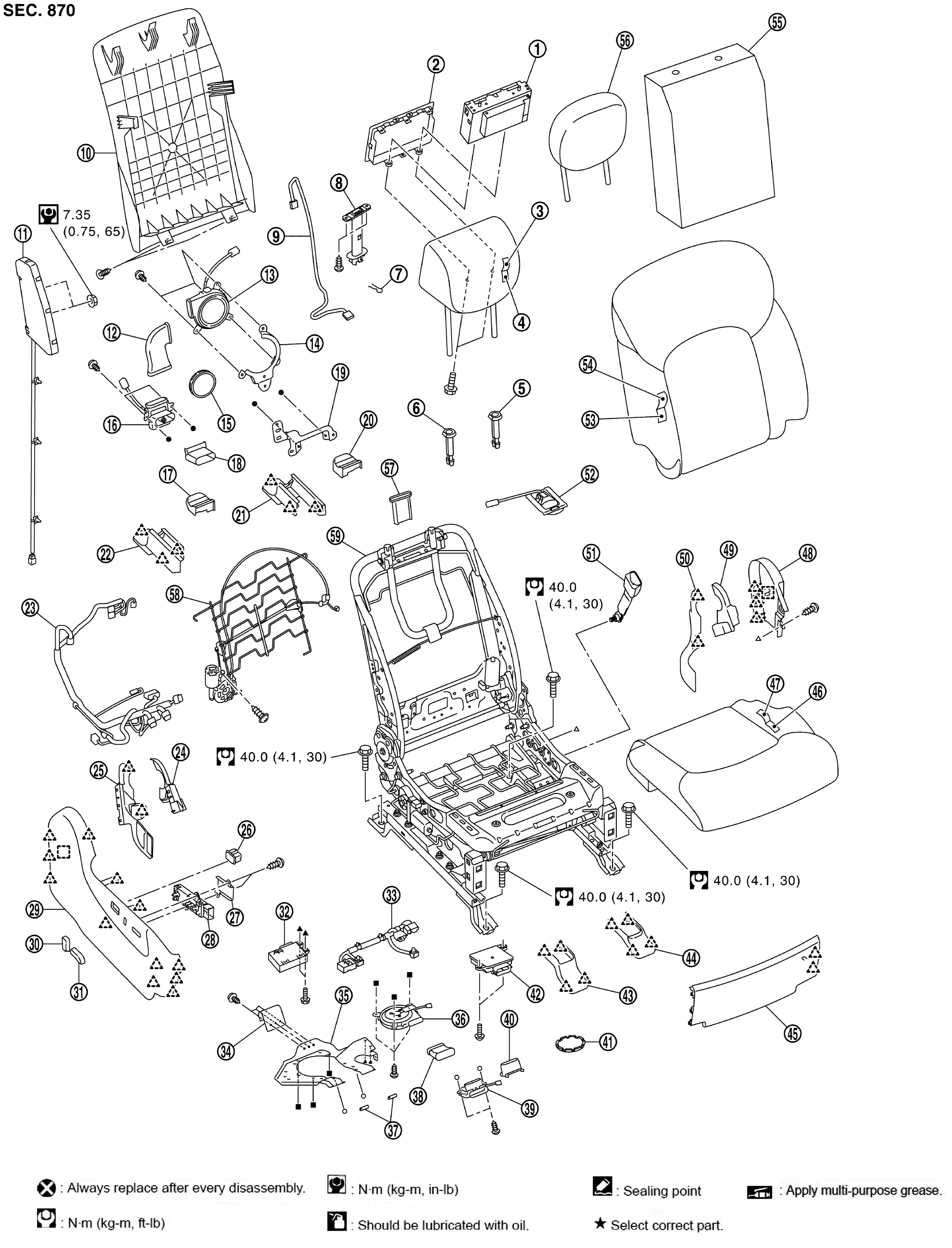

DRIVER SEAT
| 1. | Headrest display escutcheon * 1 | 2. | Headrest display * 1 | 3. | Headrest * 2 |
| 4. | Seatback silencer | 5. | Headrest trim * 1 | 6. | Headrest pad and frame * 1 |
| 7. | Headrest holder (locked) | 8. | Headrest holder (free) | 9. | Seatback trim |
| 10. | Seatback pad | 11. | Foot welcome lamp | 12. | Seat belt buckle * 3 |
| 13. | Seat cushion inner finisher inside (rear) | 14. | Seat cushion inner finisher inside (front) | 15. | Seat cushion inner finisher |
| 16. | Seat cushion trim | 17. | Seat cushion pad | 18. | Seat control unit |
| 19. | Seat cushion front finisher | 20. | Front inner slide cover | 21. | Front outer slide cover |
| 22. | Seat cushion climate controlled seat duct finisher | 23. | Seat cushion thermal electric unit | 24. | Seat cushion climate controlled seat hook (front) |
| 25. | Seat cushion climate controlled seat duct | 26. | Seat cushion climate controlled seat blower filter | 27. | Climate controlled seat cushion blower motor |
| 28. | Seat cushion climate controlled seat harness | 29. | Seat cushion climate controlled seat hook (rear) | 30. | Seat cushion climate controlled seat bracket |
| 31. | Climate controlled seat control unit | 32. | Seat cushion outer finisher | 33. | Seat slide and lifter switch knob |
| 34. | Seat reclining switch knob | 35. | Seat control switch | 36. | Lumber support switch |
| 37. | Seat control switch cover | 38. | Seat cushion outer finisher inside (rear) | 39. | Seat cushion outer finisher inside (front) |
| 40. | Seat harness | 41. | Rear outer slide cover | 42. | Seat cushion lower outer finisher |
| 43. | Side air bag module | 44. | Seatback board | 45. | Headrest display harness and upper tube * 1 |
| 46. | Headrest display harness * 1 | 47. | Clip * 1 | 48. | Seatback climate controlled seat duct |
| 49. | Climate controlled seatback blower motor | 50. | Climate controlled seatback blower motor bracket | 51. | Seatback climate controlled seat blower filter |
| 52. | Seatback thermal electric unit | 53. | Seatback thermal electric unit bracket | 54. | Seatback climate controlled seat duct finisher |
| 55. | Rear inner slide cover | 56. | Seat cushion lower inner finisher | 57. | Headrest display harness lower tube * 1 |
| 58. | Lumber support unit assembly | 59. | Seat frame assembly | ||
| : Pawl | |||||
| : Metal clip | |||||
| : N•m (kg - m, ft - lb) | |||||
| : N•m (kg - m, in - lb) | |||||
* 1 : With headrest display only.
* 2 : Without headrest display only.
* 3 : Tighten together with seat belt buckle. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

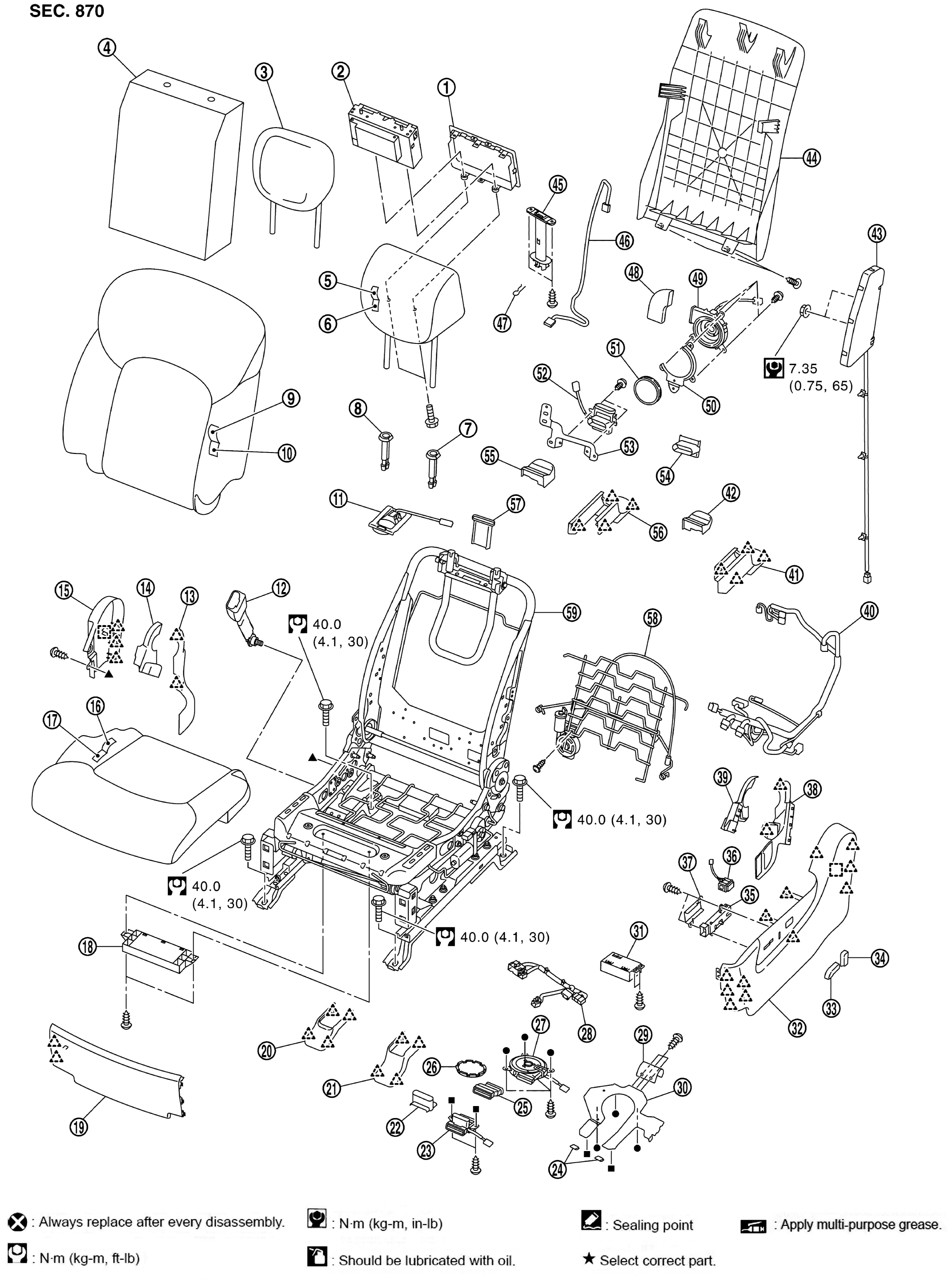

PASSENGER SEAT
| 1. | Headrest display * 1 | 2. | Headrest display escutcheon * 1 | 3. | Headrest trim * 1 |
| 4. | Headrest pad and frame * 1 | 5. | Headrest holder (locked) | 6. | Headrest holder (free) |
| 7. | Clip1 | 8. | Headrest display harness and upper tube * 1 | 9. | Headrest display harness * 1 |
| 10. | Seatback board | 11. | Side air bag module | 12. | Seatback climate controlled seat duct |
| 13. | Climate controlled seatback blower motor | 14. | Climate controlled seatback blower motor bracket | 15. | Seatback climate controlled seat blower filter |
| 16. | Seatback thermal electric unit | 17. | Seat cushion lower outer finisher | 18. | Seatback climate controlled seat duct finisher |
| 19. | Seatback thermal electric unit bracket | 20. | Seat cushion lower inner finisher | 21. | Rear inner slide cover |
| 22. | Rear outer slide cover | 23. | Seat harness | 24. | Seat cushion outer finisher inside (front) |
| 25. | Seat cushion outer finisher inside (rear) | 26. | Lumber support switch | 27. | Seat control switch cover |
| 28. | Seat control switch | 29. | Seat cushion outer finisher | 30. | Seat reclining switch knob |
| 31. | Seat slide and lifter switch knob | 32. | Climate controlled seat control unit | 33. | Seat cushion climate controlled seat harness |
| 34. | Seat cushion climate controlled seat hook (rear) | 35. | Seat cushion climate controlled seat bracket | 36. | Climate controlled seat cushion blower motor |
| 37. | Seat cushion climate controlled seat hook (front) | 38. | Seat cushion climate controlled seat duct | 39. | Seat cushion thermal electric unit |
| 40. | Seat cushion climate controlled seat duct finisher | 41. | Seat cushion climate controlled seat blower filter | 42. | Occupant detection system control unit |
| 43. | Front outer slide cover | 44. | Front inner slide cover | 45. | Seat cushion front finisher |
| 46. | Seat cushion pad | 47. | Seat cushion trim | 48. | Seat cushion inner finisher |
| 49. | Seat cushion inner finisher inside (front) | 50. | Seat cushion inner finisher inside (rear) | 51. | Seat belt buckle * 3 |
| 52. | Foot welcome lamp | 53. | Seatback pad | 54. | Seatback trim |
| 55. | Seatback silencer | 56. | Headrest * 2 | 57. | Headrest display harness lower tube * 1 |
| 58. | Lumber support unit assembly | 59. | Seat frame assembly | ||
| : Pawl | |||||
| : Metal clip | |||||
| : N•m (kg - m, ft - lb) | |||||
| : N•m (kg - m, in - lb) | |||||
* 1 : With headrest display only.
* 2 : Without headrest display only.
* 3 : Tighten together with seat belt buckle. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
