Exploded View With Torque Specifications: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

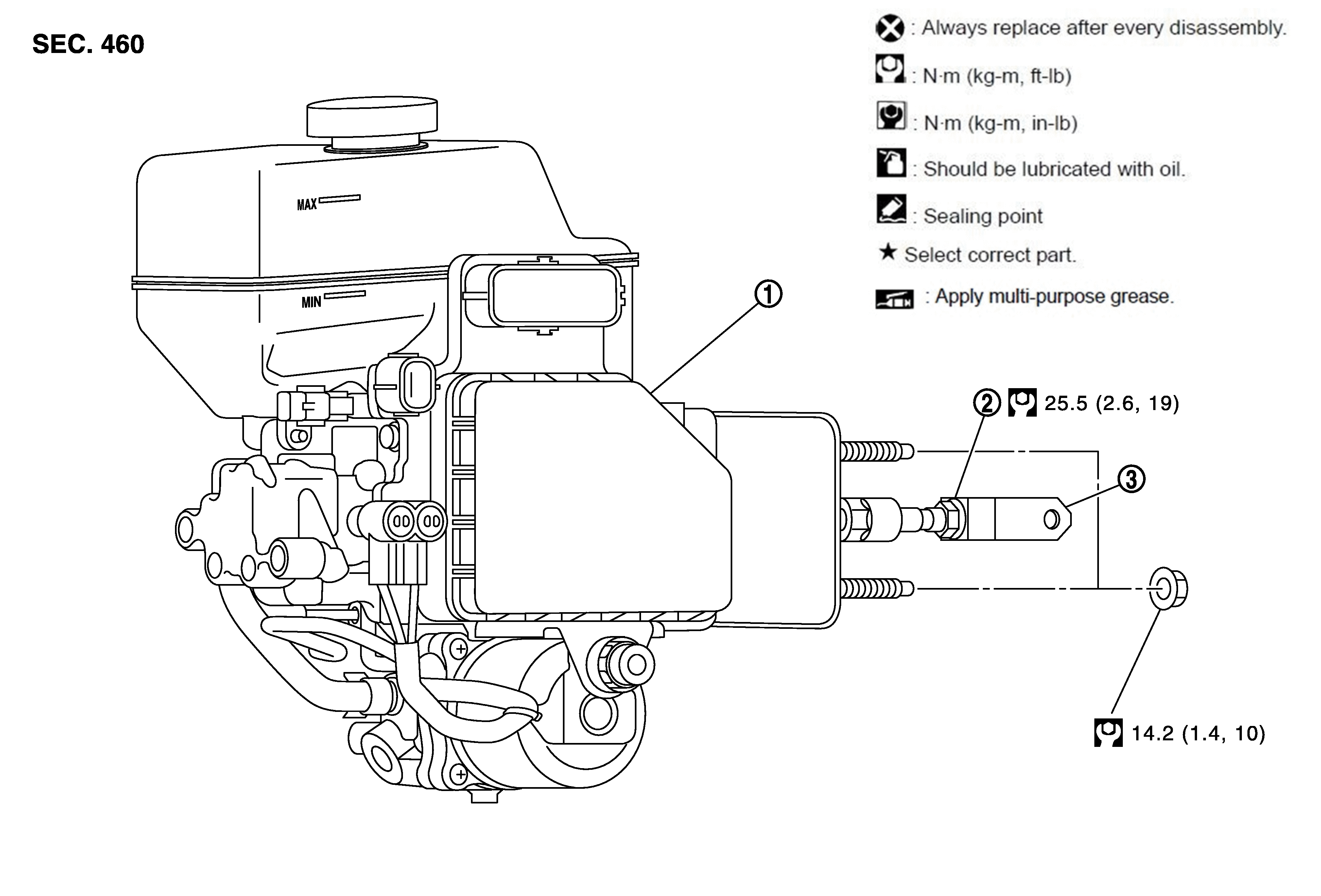

Fig 1: Hydraulic Booster Assembly Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Hydraulic booster assembly	2.	Lock nut	3.	Clevis
	: N•m (kg - m, ft - lb)
