Home >> Infiniti >> 2017 >> QX80 Limited >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Preparation >> Preparation >> Commercial Service Tool

Commercial Service Tool

(Kent-Moore No.)
Tool name
  Description
(-)
Power tool
G04083840Courtesy of NISSAN NORTH AMERICA, INC.
Loosening bolts and nuts
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner
GNSAEM488-488Courtesy of NISSAN NORTH AMERICA, INC.
Reconditioning the exhaust system threads before installing a new heated oxygen sensor (Use with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia heated oxygen sensor and air fuel ratio sensor
b: J-43897-12 (12 mm dia.) for titania heated oxygen sensor and air fuel ratio sensor
(-)

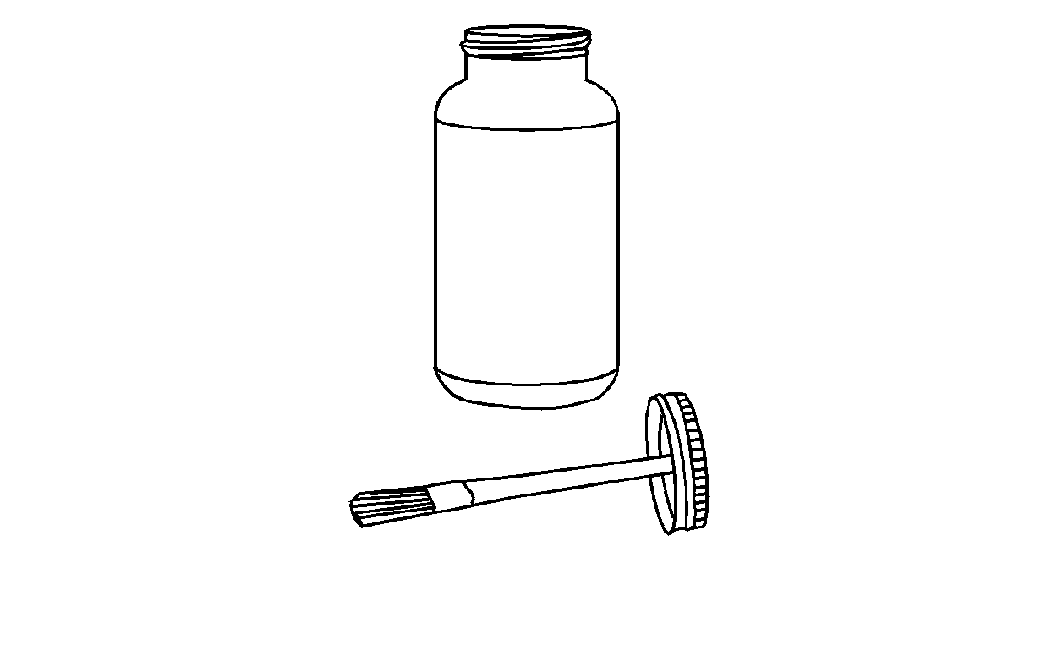

Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907)
GNSAEM489-489Courtesy of NISSAN NORTH AMERICA, INC.
Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads
