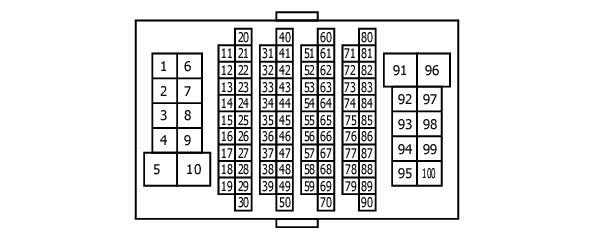

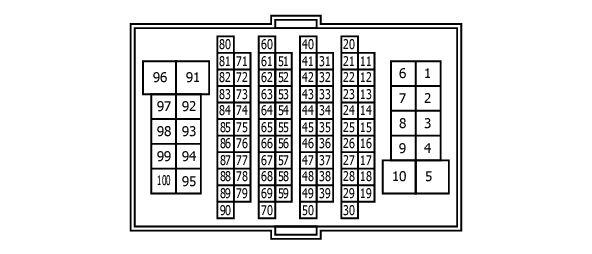

WIRE TO WIRE Connector End View (M82)
Connector Types: TH80FW-CS16-TM4
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | L | - |
| 4 | V/W | - |
| 5 | G/R | - |
| 6 | P | - |
| 9 | GR/L | - |
| 10 | Y/R | - |
| 11 | L/R | - |
| 16 | B/Y | - |
| 20 | W/R | - |
| 21 | B | - |
| 26 | R | - |
| 27 | L | - |
| 28 | B/SB | - |
| 35 | G | - |
| 36 | Y | - |
| 37 | R | - |
| 38 | G/Y | - |
| 39 | O | - |
| 40 | W | - |
| 41 | R | - |
| 42 | B | - |
| 43 | G | - |
| 44 | SHIELD | - |
| 46 | B | - |
| 47 | W | - |
| 48 | SHIELD | - |
| 49 | W | - |
| 50 | SHIELD | - |
| 52 | GR | - |
| 53 | LG/B | - |
| 54 | LG/R | - |
| 55 | R/G | - |
| 56 | B/O | - |
| 57 | SB | - |
| 66 | V | - |
| 91 | G/R | - |
| 92 | GR | - |
| 93 | O | - |
| 95 | SB | - |
| 96 | G/R | - |
| 97 | GR/L | - |
| 98 | G/W | - |
| 99 | P | - |
| 100 | L | - |
