WIRE TO WIRE Connector End View (M152)

Connector Types:  TH80MW-CS16-TM4

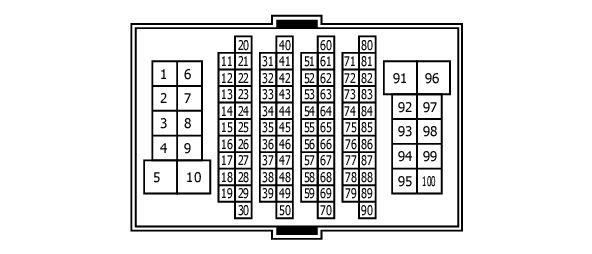

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

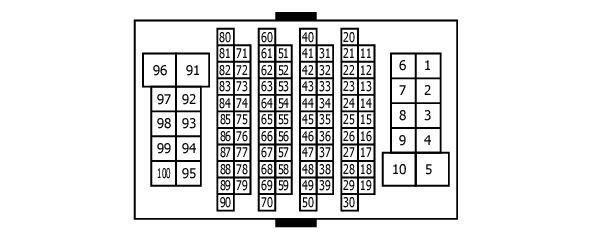

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
59	P	-
69	LG	-
