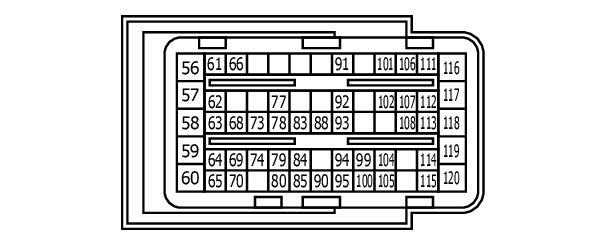

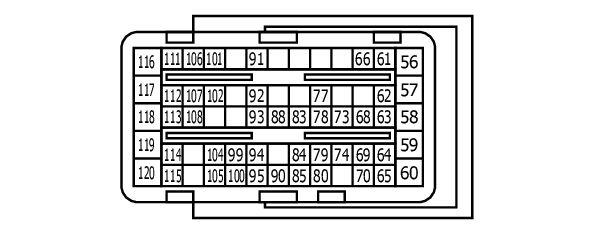

ECM Connector End View (F92)
Connector Types: MAB55FB-MEB10-LH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 56 | V | MULTI-WAY CONTROL VALVE POWER SUPPLY |
| 57 | B | MULTI-WAY CONTROL VALVE MOTOR (-) |
| 58 | W | MULTI-WAY CONTROL VALVE MOTOR (+) |
| 59 | L/W | HIGH PRESSURE FUEL PUMP (HI) |
| 60 | L/B | HIGH PRESSURE FUEL PUMP (LO) |
| 61 | R/W | MULTI-WAY CONTROL VALVE POSITION SENSOR |
| 62 | BR | PNP SIGNAL |
| 63 | LG/B | SENSOR GROUND |
| 64 | SHIELD | SHIELD |
| 65 | GR/B | ENGINE COOLANT TEMPERATURE SENSOR 2 |
| 66 | P | CAMSHAFT POSITION SENSOR (BANK 2) |
| 68 | GR | EXHAUST VALVE TIMING CONTROL POSITION SENSOR (BANK 2) |
| 69 | LG | A/F SENSOR 1 (BANK 2) |
| 70 | V | A/F SENSOR 1 (BANK 2) |
| 73 | LG/R | SENSOR POWER SUPPLY |
| 74 | Y/L | A/F SENSOR 1 (BANK 1) |
| 77 | L/W | HEATED OXYGEN SENSOR 2 (BANK 2) |
| 78 | R | THROTTLE POSITION SENSOR 1 |
| 79 | Y/G | A/F SENSOR 1 (BANK 1) |
| 80 | B | THROTTLE POSITION SENSOR 2 |
| 83 | G | SENSOR POWER SUPPLY |
| 84 | W/R | HEATED OXYGEN SENSOR 2 (BANK 1) |
| 85 | W | SENSOR GROUND |
| 88 | L/G | ECM RELAY (SELF SHUT-OFF) |
| 90 | BR/W | VVEL ACTUATOR MOTOR RELAY ABORT SIGNAL (VVEL CONTROL MODULE) |
| 91 | L/B | IGNITION SIGNAL NO. 2 |
| 92 | BR/Y | IGNITION SIGNAL NO. 3 |
| 93 | Y | FUEL PUMP RELAY |
| 94 | Y/R | IGNITION SIGNAL NO. 6 |
| 95 | Y | IGNITION SIGNAL NO. 1 |
| 99 | V/R | THROTTLE CONTROL MOTOR RELAY |
| 100 | G | - |
| 101 | O | IGNITION SIGNAL NO. 8 |
| 102 | P/L | IGNITION SIGNAL NO. 5 |
| 104 | LG/R | IGNITION SIGNAL NO. 4 |
| 105 | G/Y | IGNITION SIGNAL NO. 7 |
| 106 | V/W | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| 107 | W | THROTTLE CONTROL MOTOR (OPEN) |
| 108 | R | THROTTLE CONTROL MOTOR (CLOSE) |
| 111 | O | THROTTLE CONTROL MOTOR POWER SUPPLY |
| 112 | LG/B | INTAKE VALVE TIMING CONTROL SOLENOID VALVE (BANK 1) |
| 113 | G/R | INTAKE VALVE TIMING CONTROL SOLENOID VALVE (BANK 2) |
| 114 | O/B | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE (BANK 1) |
| 115 | R/G | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE (BANK 2) |
| 116 | L/W | A/F SENSOR 1 HEATER (BANK 1) |
| 117 | SB | A/F SENSOR 1 HEATER (BANK 2) |
| 118 | G | HEATED OXYGEN SENSOR 2 HEATER (BANK 1) |
| 119 | L/R | HEATED OXYGEN SENSOR 2 HEATER (BANK 2) |
| 120 | L | POWER SUPPLY FOR ECM (BACK-UP) |
