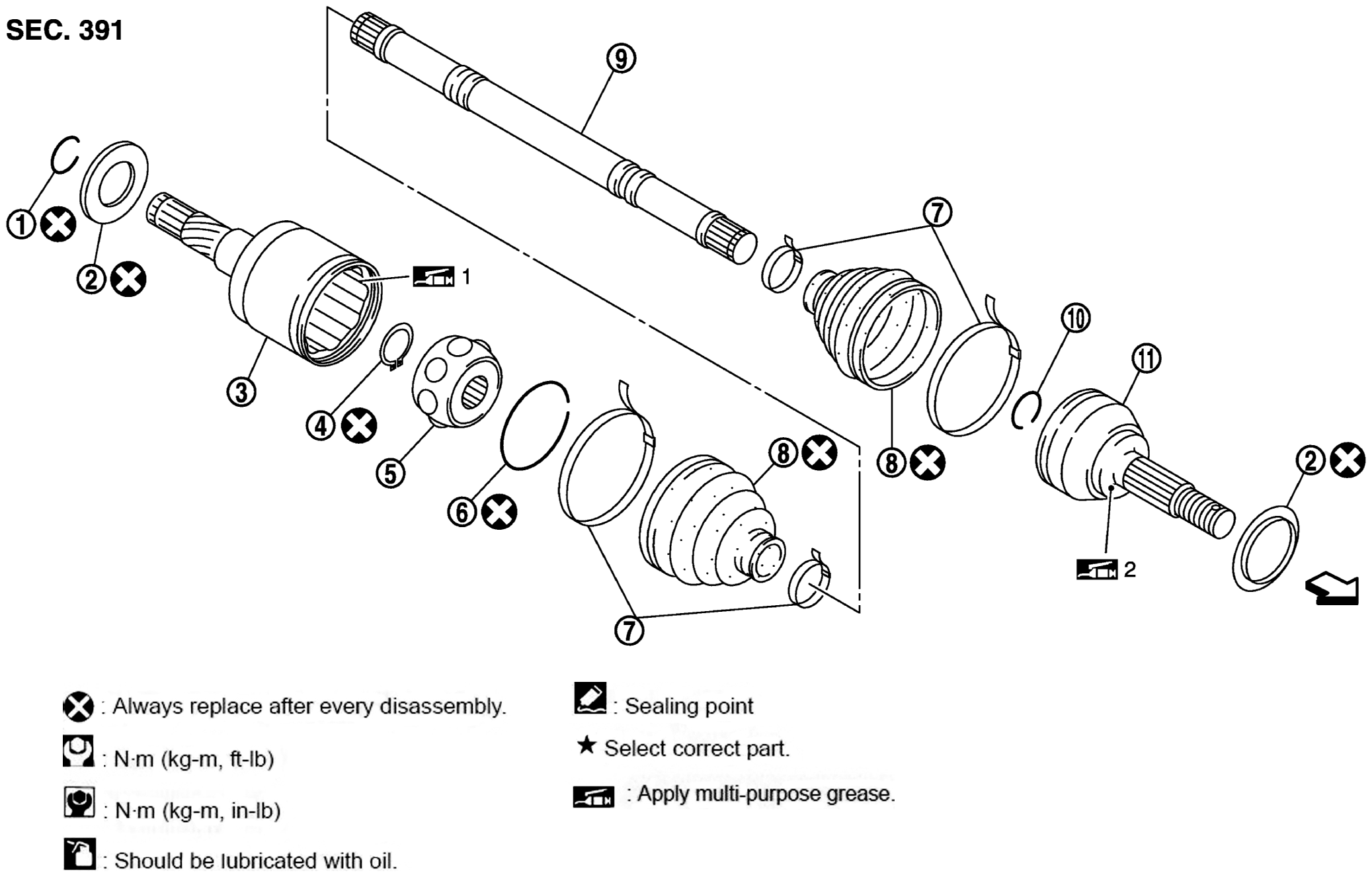

Exploded View

WARNING: This page is about a different variant/trim than selected.

Courtesy of NISSAN NORTH AMERICA, INC.

Circular clip	Dust shield	Housing
Snap ring	Ball cage/steel ball/inner race assembly	Stopper ring
Boot band	Boot	Shaft
Circular clip	Joint sub - assembly
: Wheel side
:Always replace after every disassembly.
1:NISSAN genuine grease or an equivalent.
2: Apply paste [service parts (440037S000)].
