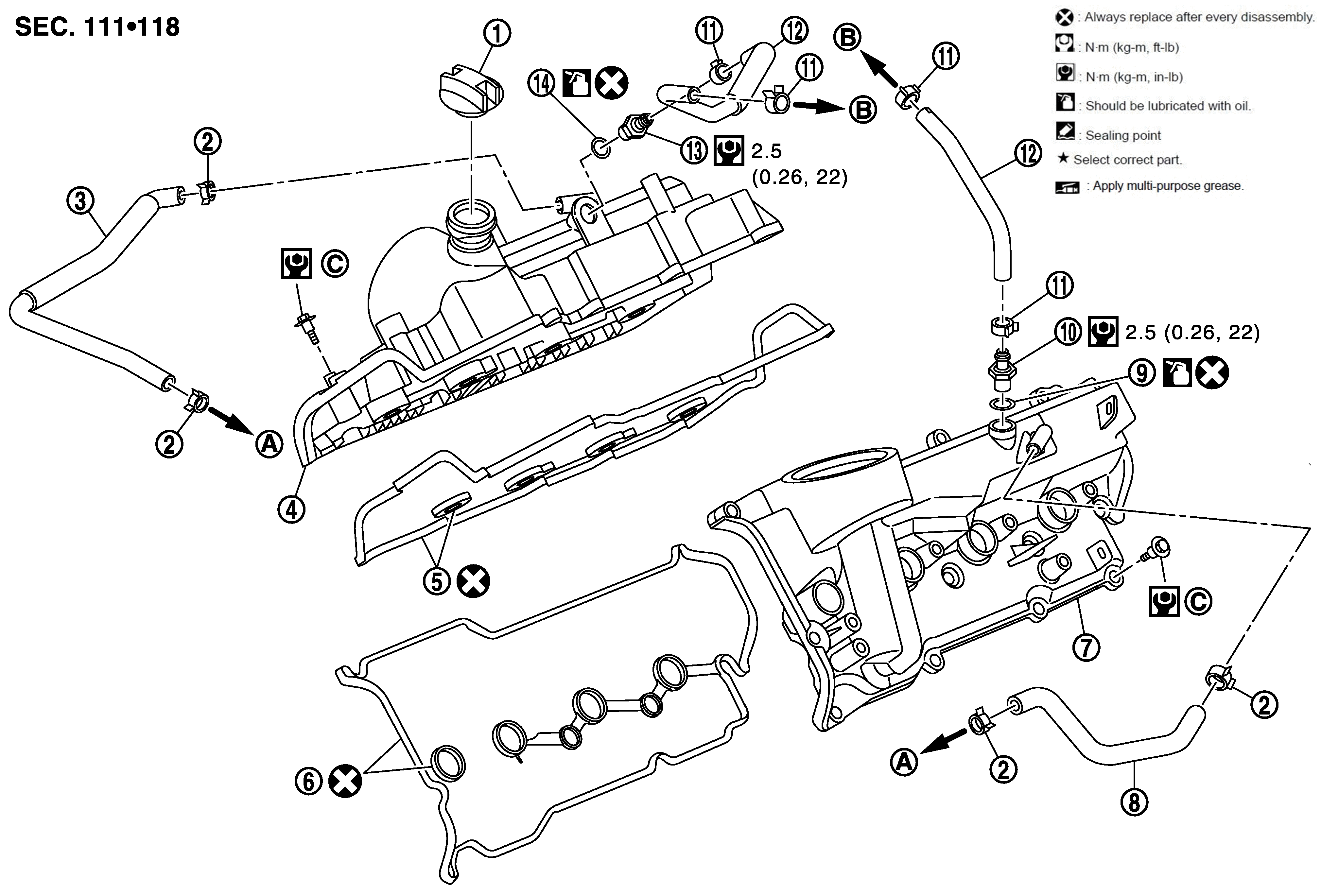

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil filler cap	2.	Clamp	3.	PCV hose
4.	Rocker cover (bank 2)	5.	Rocker cover gasket (bank 2)	6.	Rocker cover gasket (bank 1)
7.	Rocker cover (bank 1)	8.	PCV hose	9.	O-ring
10.	PCV valve	11.	Clamp	12.	PCV hose
13.	PCV valve	14.	O-ring
A.	To air duct	B.	To intake manifold	C.	Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION .
	: N•m (kg - m, in - lb)
	: Always replace after every disassembly.
: Should be lubricated with oil.
