Suspension Control Systems
>>
Suspension Control System (HBMC)
>>
System Description
>>
Structure And Operation
>>
Hydraulic Body-Motion Control System

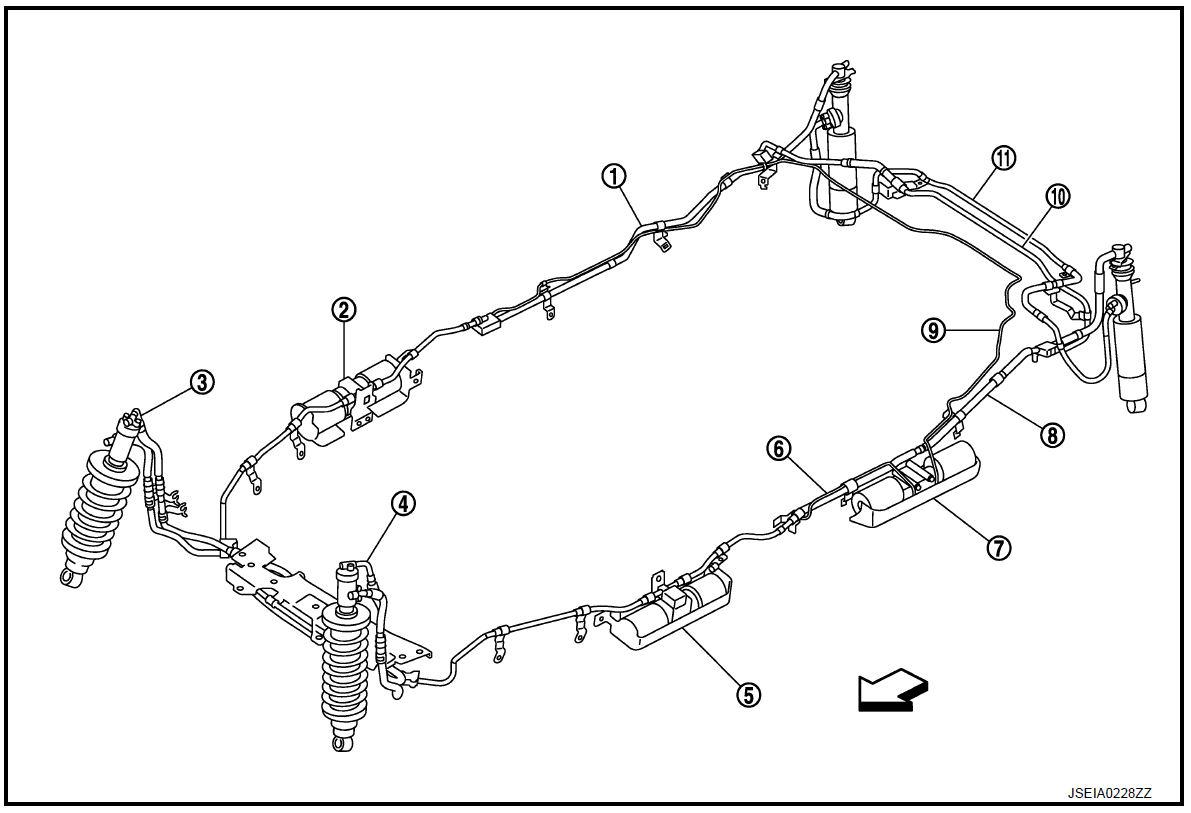

Hydraulic Body-Motion Control System
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Middle tube assembly RH
2.
Accumulator assembly RH
3.
Front tube assembly A
4.
Front tube assembly B
5.
Accumulator assembly LH
6.
PPMU pipe A
7.
PPMU assembly
8.
Middle tube assembly LH
9.
PPMU pipe B
10.
Rear tube assembly A
11.
Rear tube assembly B
:
Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
