Inspection After Removal

Check each part of steering column assembly for damage or other malfunctions. Replace if necessary.
Measure steering column assembly rotating torque using a preload gauge [SST: ST3127S000 (J-25765-A)]. Replace steering column assembly if outside the standard.

Rotating torque : Refer to STEERING COLUMN OPERATING RANGE .

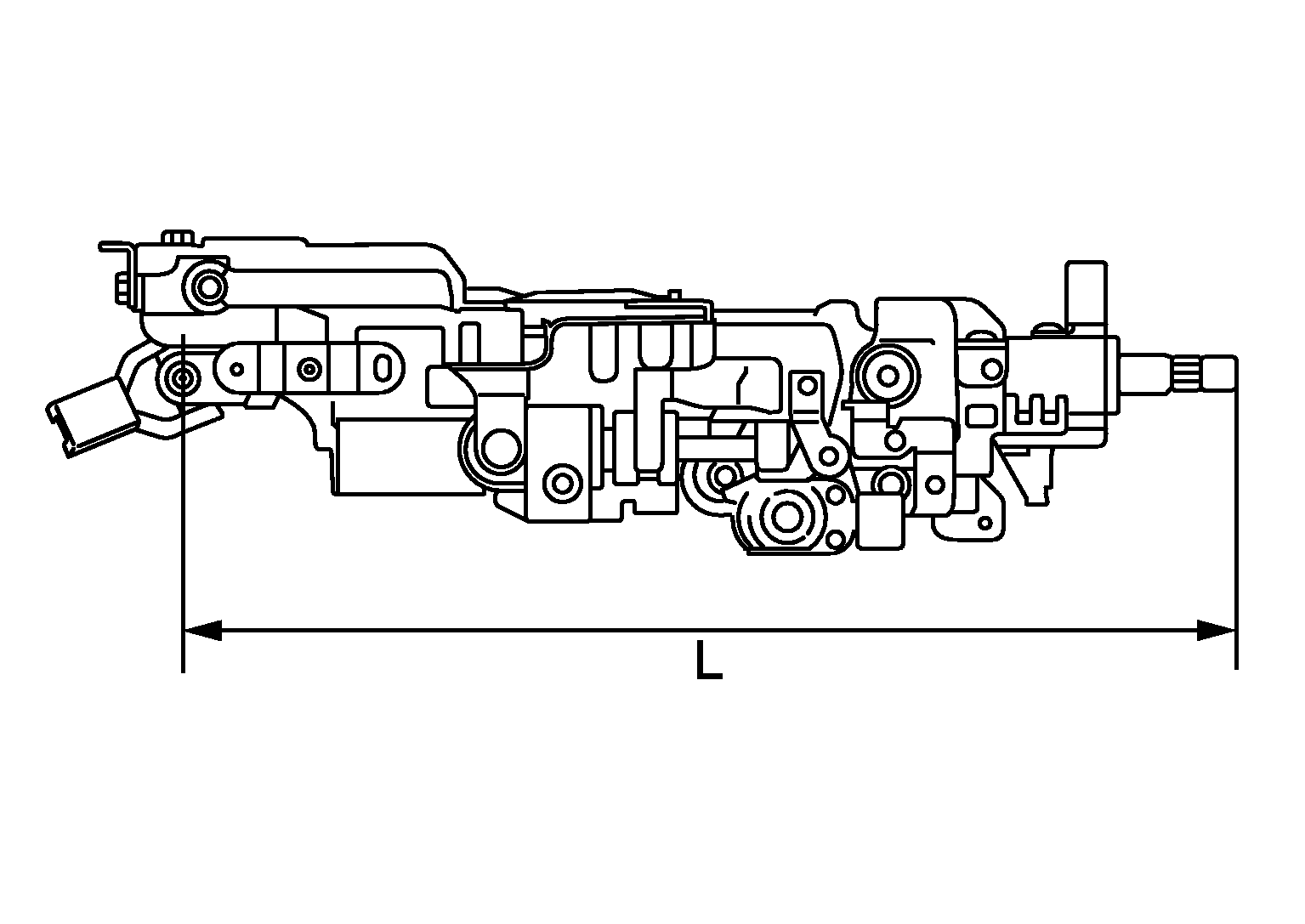

Measure the length (L) as shown, if vehicle has been involved in a minor collision. Replace steering column assembly if out side the standard.

Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (L) : Refer to STEERING COLUMN LENGTH .

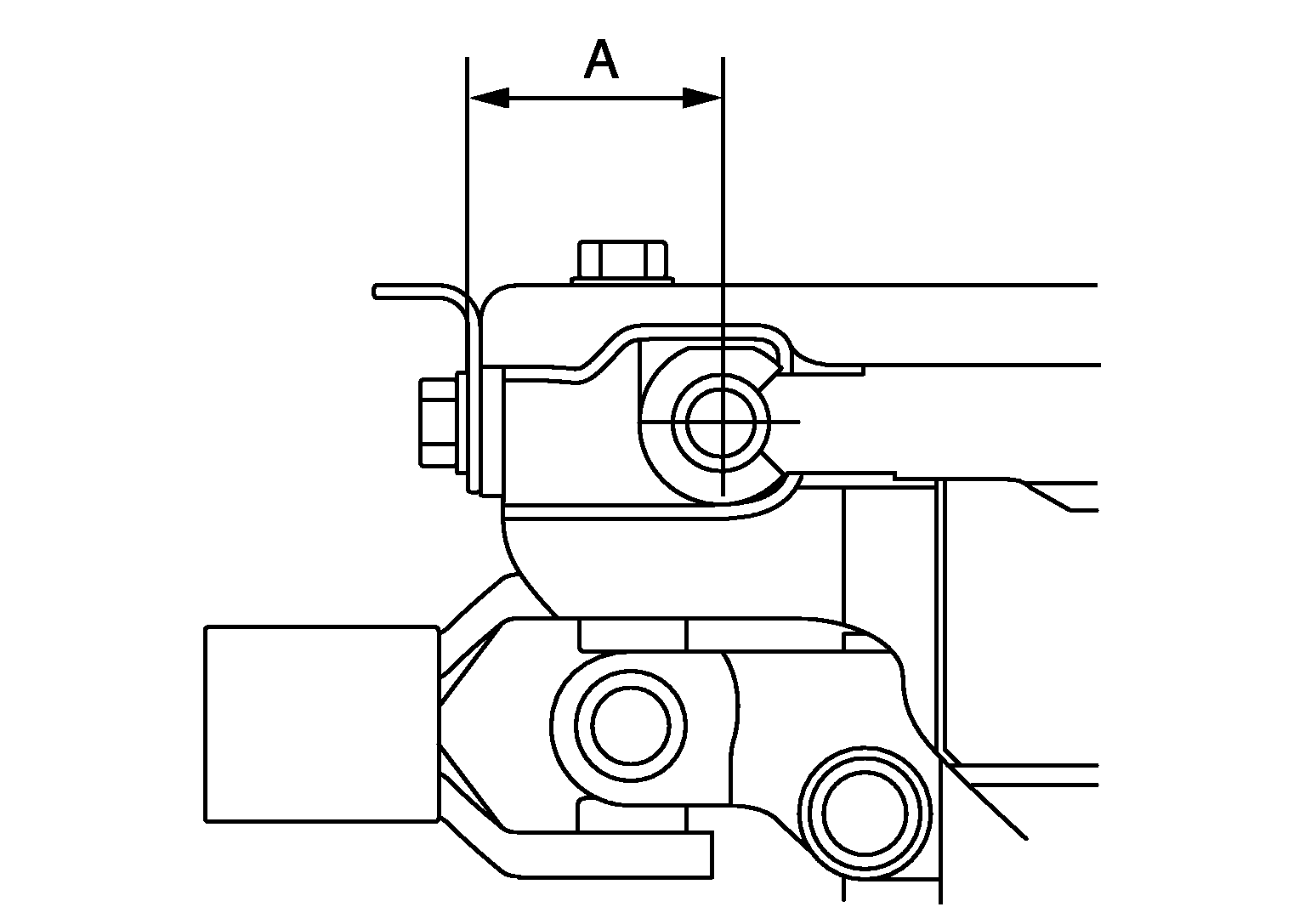

Install the bracket and steering column housing so that the clearance (A) is within the specified range as described below. Replace steering column assembly if out side the standard.

Courtesy of NISSAN NORTH AMERICA, INC.

Mounting dimensions (A) : Refer to STEERING COLUMN MOUNTING DIMENSIONS .
