Exploded View

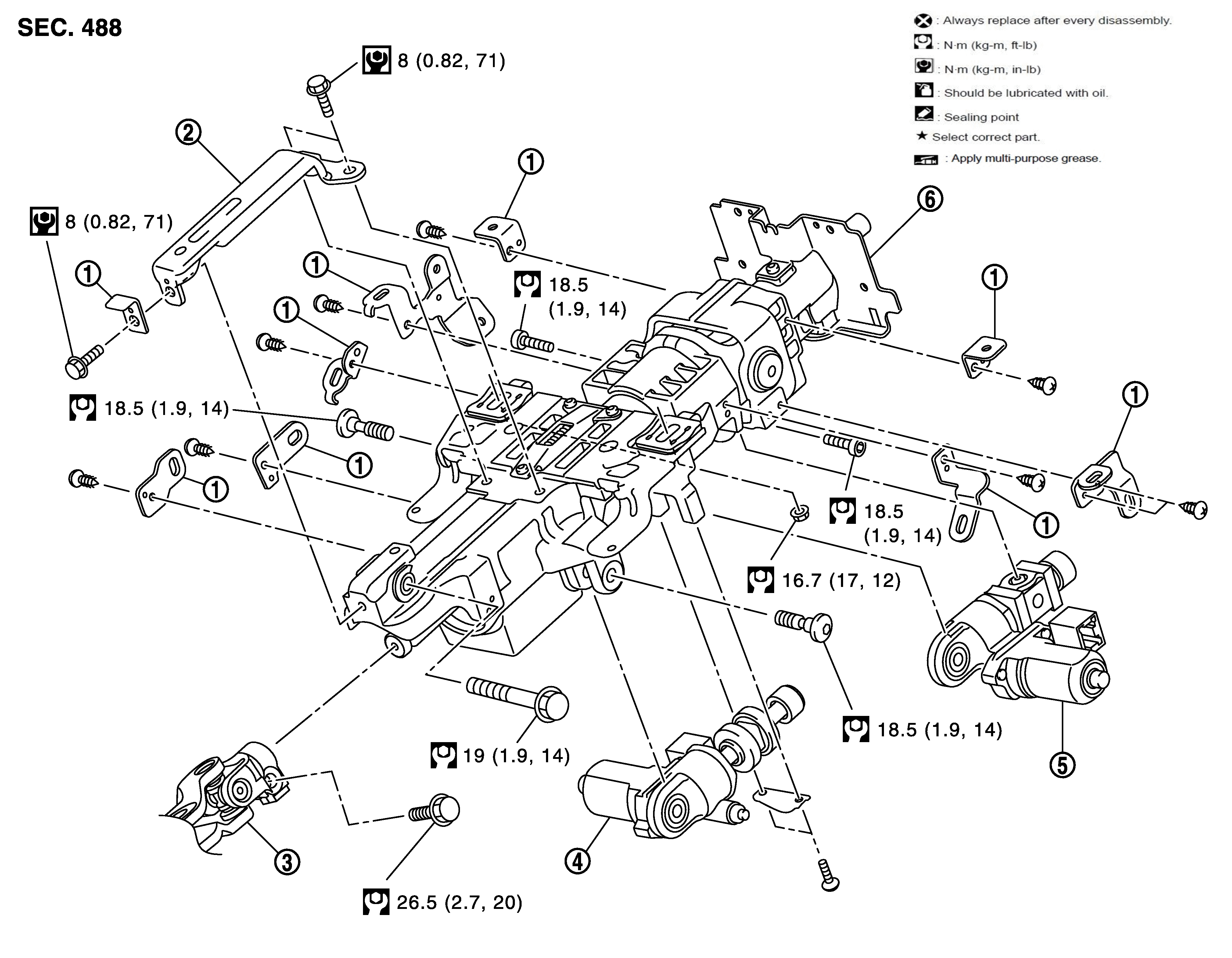

Fig 1: Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Steering column mounting bracket	3.	Upper joint
4.	Telescopic motor	5.	Tilt motor	6.	Steering column assembly
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
