Exploded View : Removal

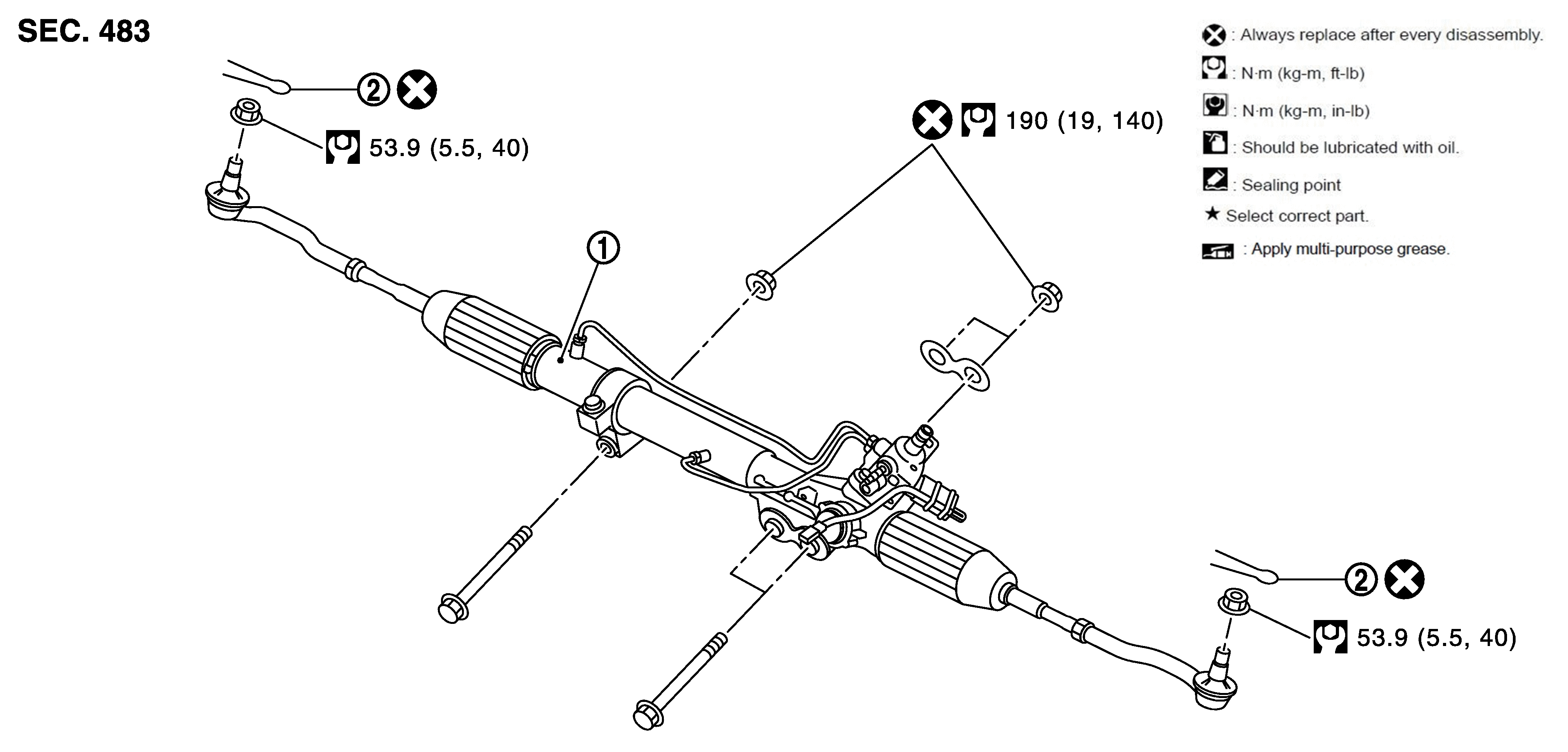

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSJPGIA0072GB-072Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Cotter pin
DISAS : Always replace after every disassembly.
BOLT : N•m (kg - m, ft - lb)
