Diagnosis Procedure

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

  1. CHECK CONTINUITY COMPOSITE IMAGE SIGNAL CIRCUIT

    1. Turn ignition switch OFF.
    2. Disconnect AV control unit connector and display unit connector.
    3. Check continuity between AV control unit harness connector and display unit harness connector.
      AV control unit Display unit Continuity
      Connector Terminal Connector Terminal
      M215 47 M194 15 Existed
    4. Check continuity between AV control unit harness connector and ground.
      AV control unit Ground Continuity
      Connector Terminal
      M215 47 Not existed

    Is the inspection result normal?

    YES

    GO TO STEP 2  .

    NO

    Repair harness or connector.

  2. CHECK COMPOSITE IMAGE SIGNAL

    1. Connect AV control unit connector and display unit connector.
    2. Turn ignition switch ON.
    3. Check signal between AV control unit harness connector and ground.
      (+) (-) Condition Reference value
      AV control unit
      Connector Terminal

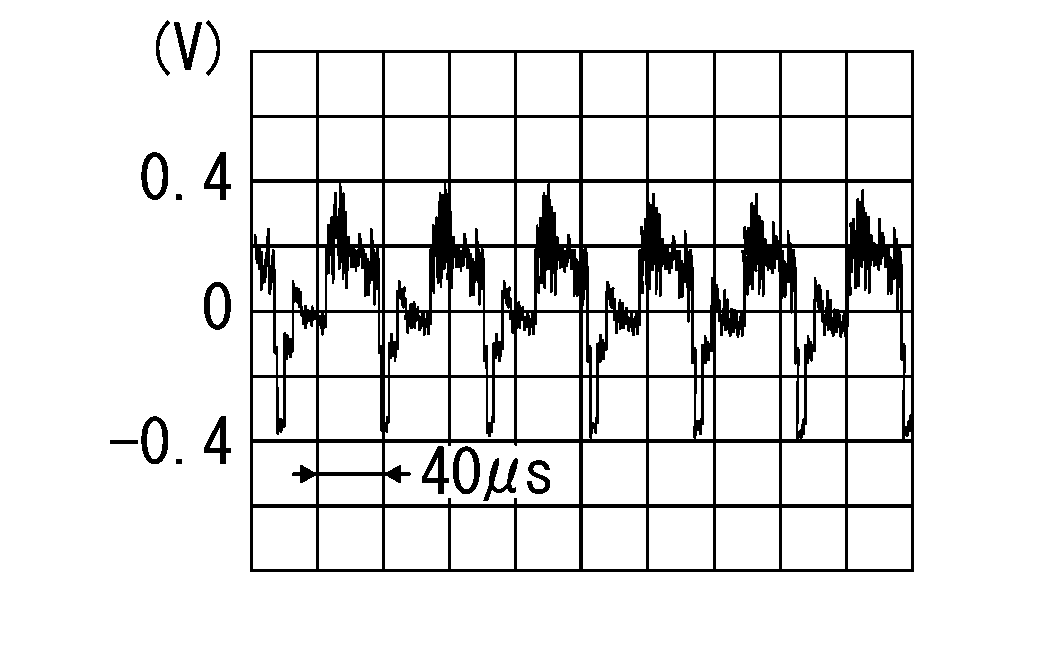

      M215 47 Ground At camera image is displayed.
      G00498910Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    Replace display unit. Refer to REMOVAL AND INSTALLATION .

    NO

    Replace AV control unit. Refer to REMOVAL AND INSTALLATION .
