Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

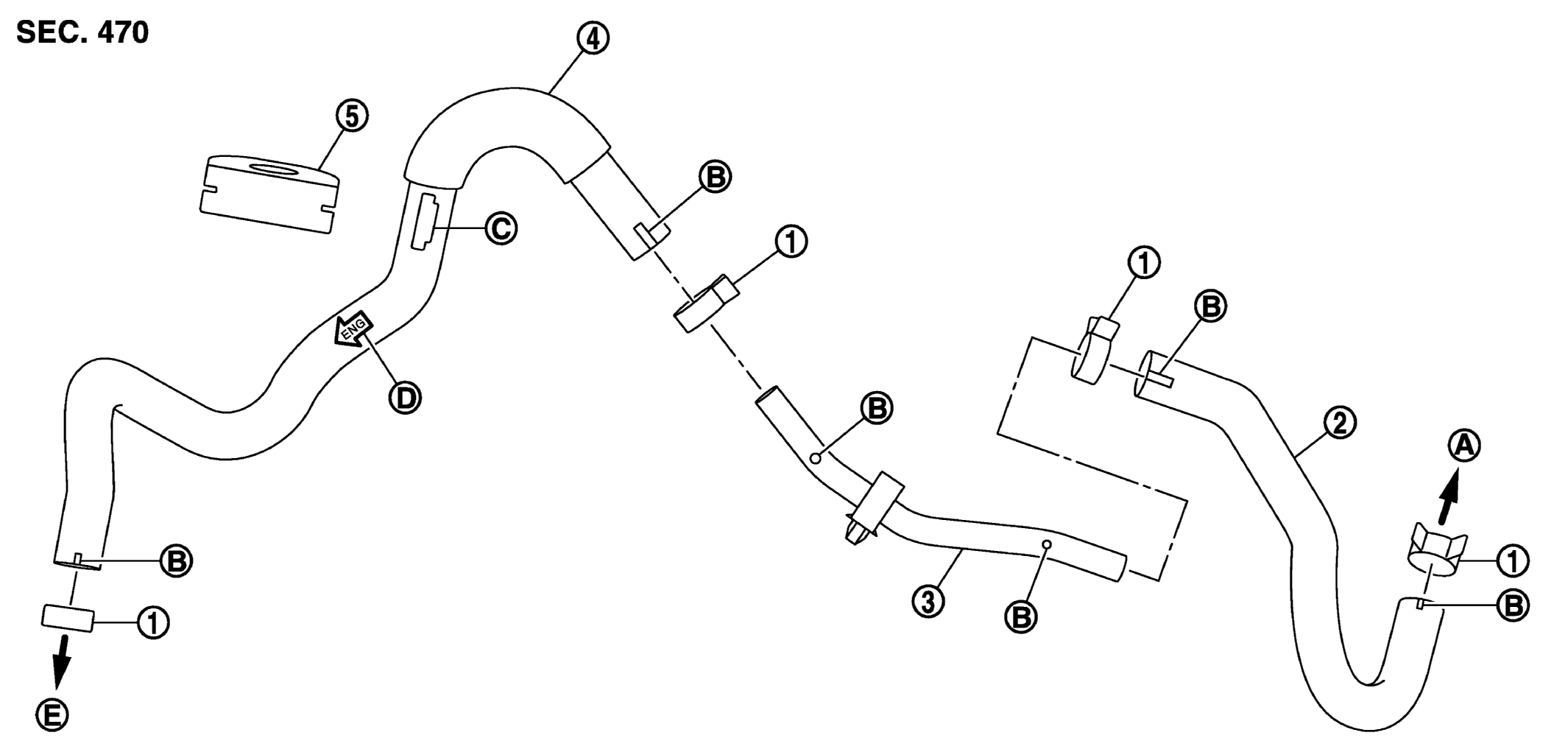

| 1. |
Clamp |
2. |
Vacuum hose |
3. |
Vacuum piping |
| 4. |
Vacuum hose (built in check valve) |
5. |
Grommet |
|
|
| A. |
To brake booster |
B. |
Paint mark |
C. |
Stamp indicating grommet installation position |
| D. |
Stamp indicating engine direction |
E. |
To intake manifold |
|
|
