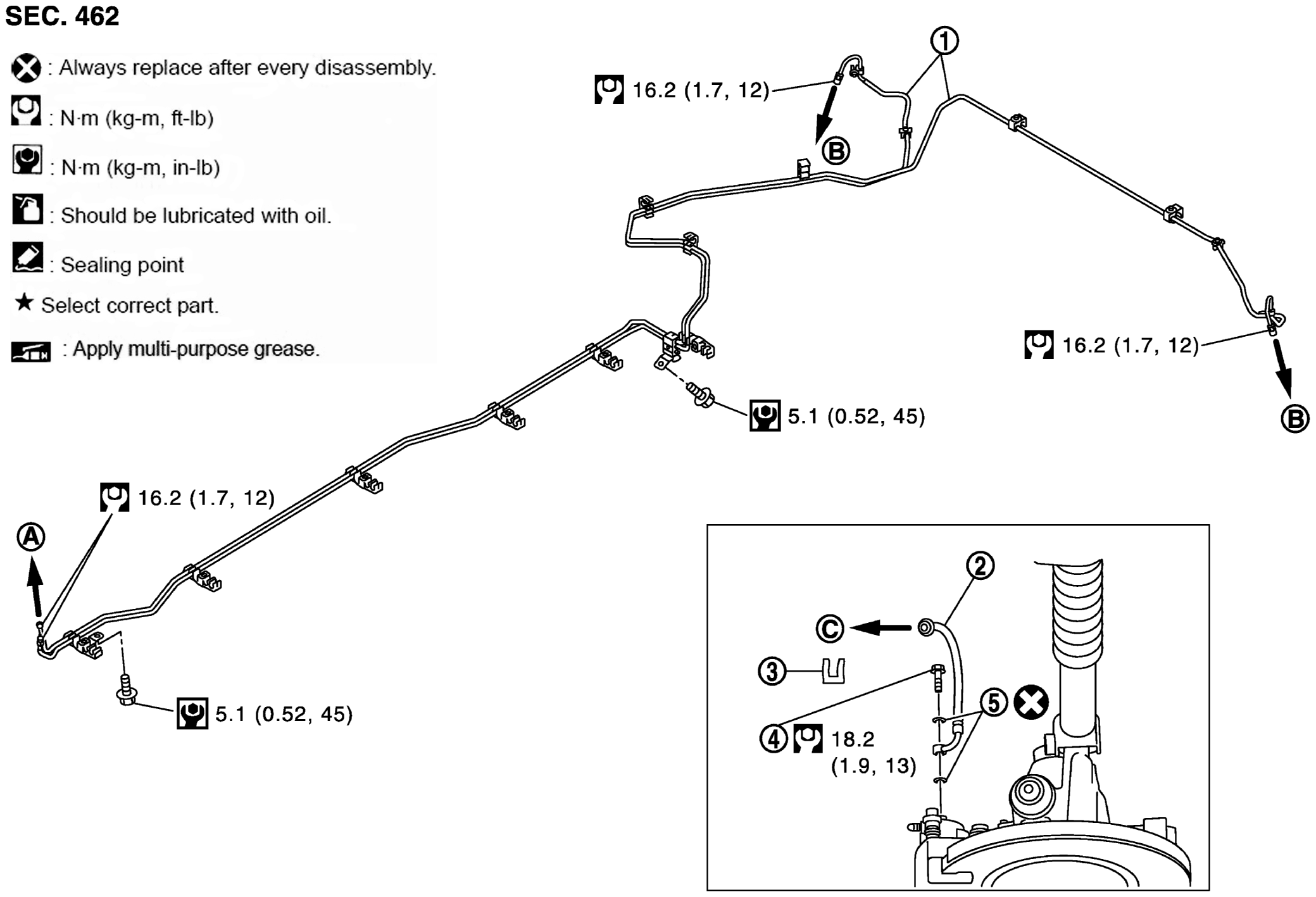

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake tube | 2. | Brake hose | 3. | Lock plate |
| 4. | Union bolt | 5. | Copper washer | ||
| A. | To connector | B. | To rear brake hose | C. | To rear brake tube |
| Refer to COMPONENTS for symbols in the figure. | |||||
