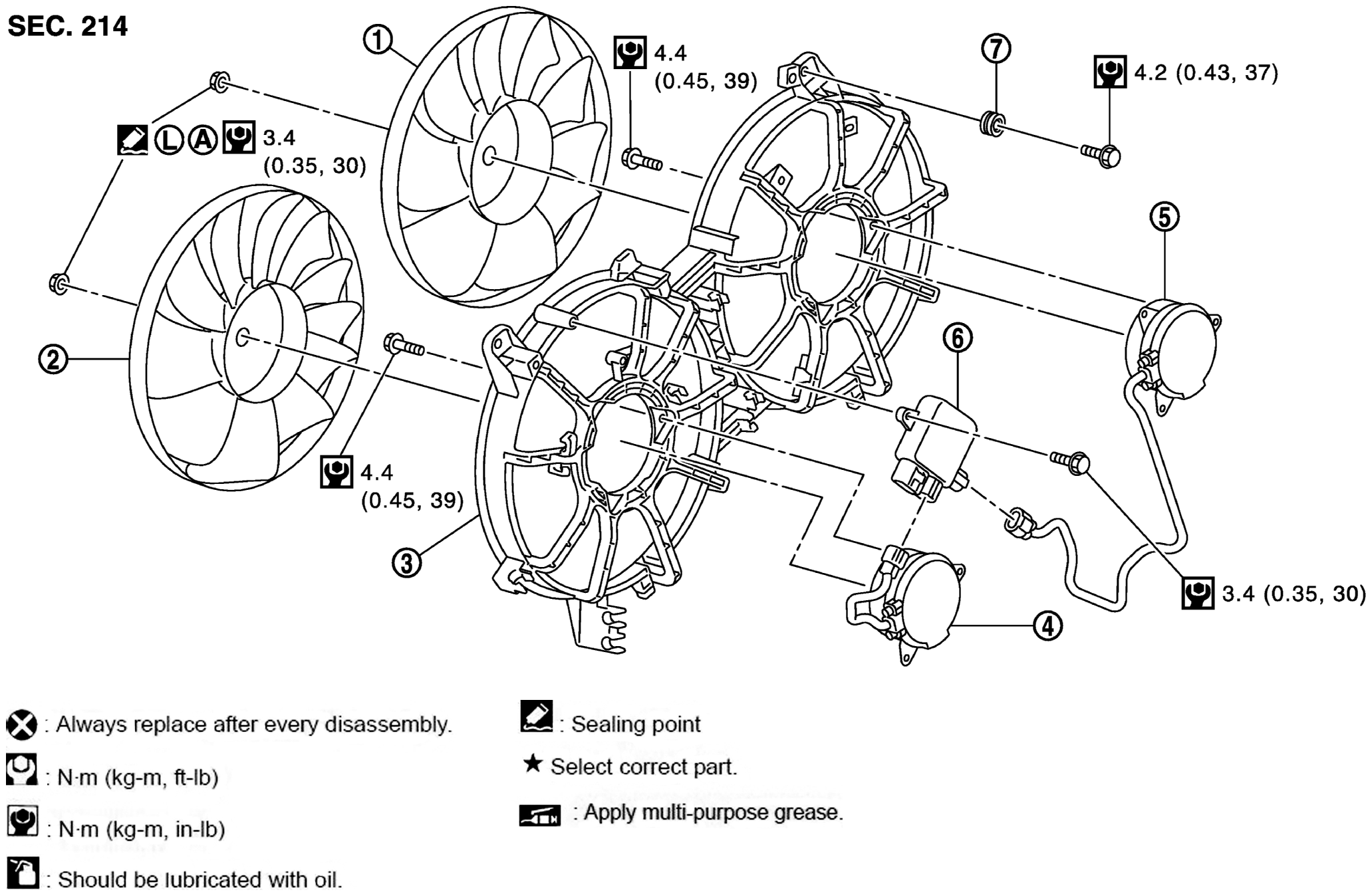

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Cooling fan (RH) | 2. | Cooling fan (LH) | 3. | Fan shroud |
| 4. | Fan motor (LH) | 5. | Fan motor (RH) | 6. | Cooling fan control module |
| 7. | Grommet | ||||
| A. | Apply on fan motor shaft | ||||
| Apply high strength thread locking sealant or equivalent. | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
