Component Inspection

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

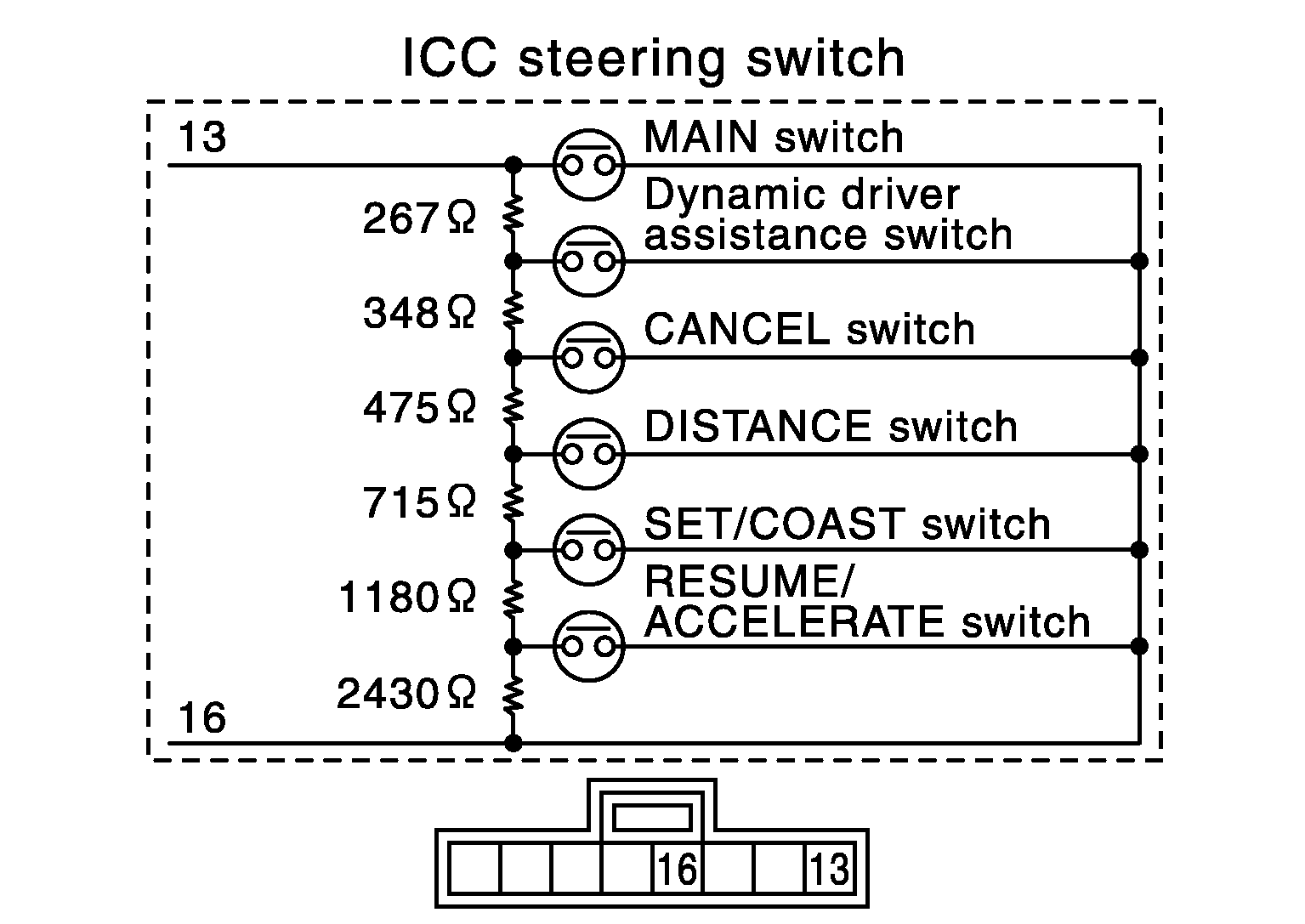

CHECK ICC STEERING SWITCH

Check resistance between ICC steering switch terminals.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal		Switch operation	Resistance [Ω]
13	16	When pressing MAIN switch	Approx. 0
		When pressing dynamic driver assistance switch	Approx. 267
		When pressing CANCEL switch	Approx. 615
		When pressing DISTANCE switch	Approx. 1090
		When pressing SET/COAST switch	Approx. 1805
		When pressing RESUME/ACCELERATE switch	Approx. 2985
		When all switches are not pressed	Approx. 5415

Is the inspection result normal?

YES

INSPECTION END

Replace the ICC steering switch.
