System Diagram

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

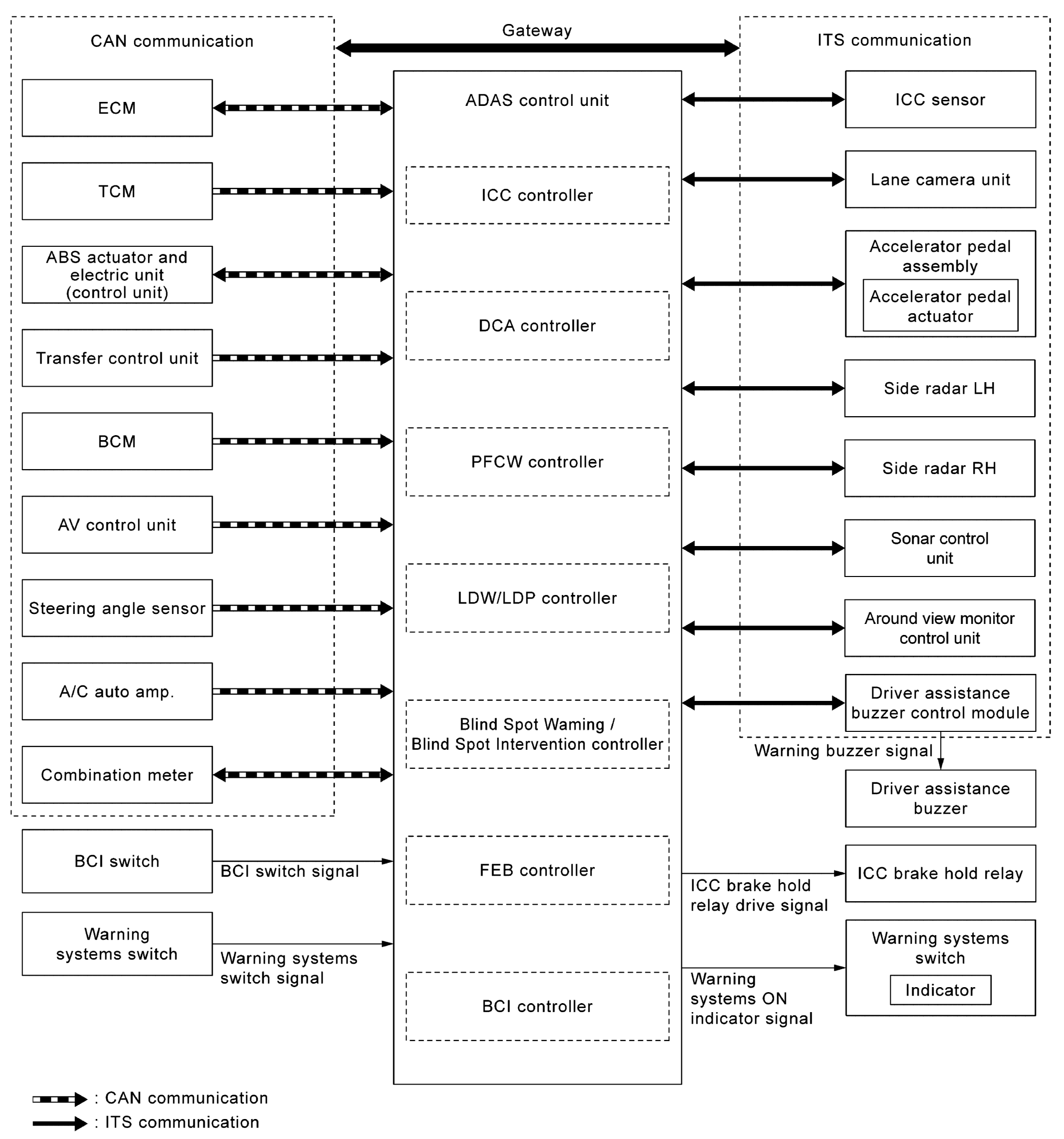

GNSJSOIA1708GB-708Courtesy of NISSAN NORTH AMERICA, INC.
