Exploded View With Torque Specifications: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

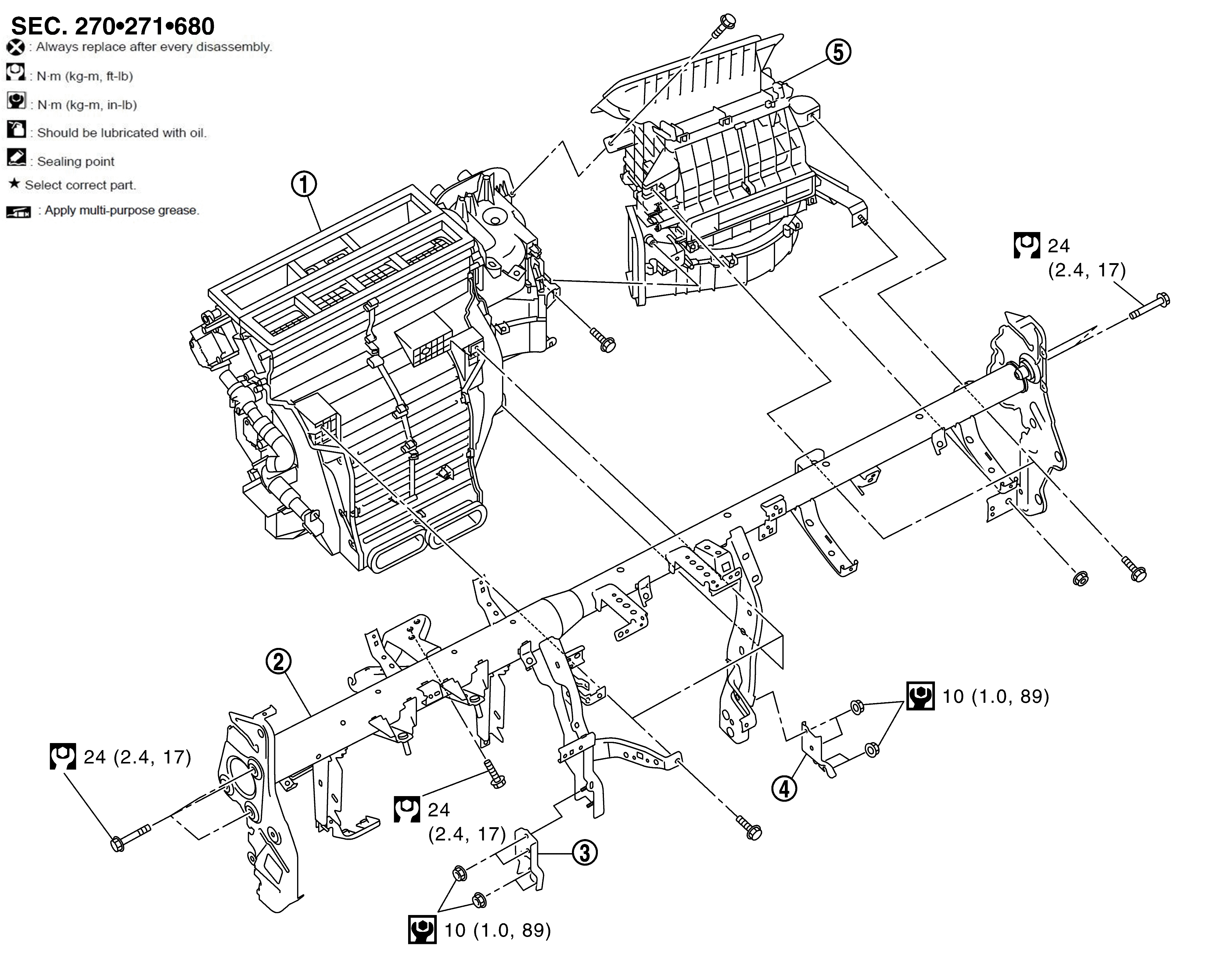

Fig 1: A/C Unit Assembly Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heater & cooling unit assembly	2.	Steering member	3.	Instrument stay LH
4.	Instrument stay RH	5.	Blower unit assembly
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
