Cooling Fan
>>
Exploded View
Exploded View

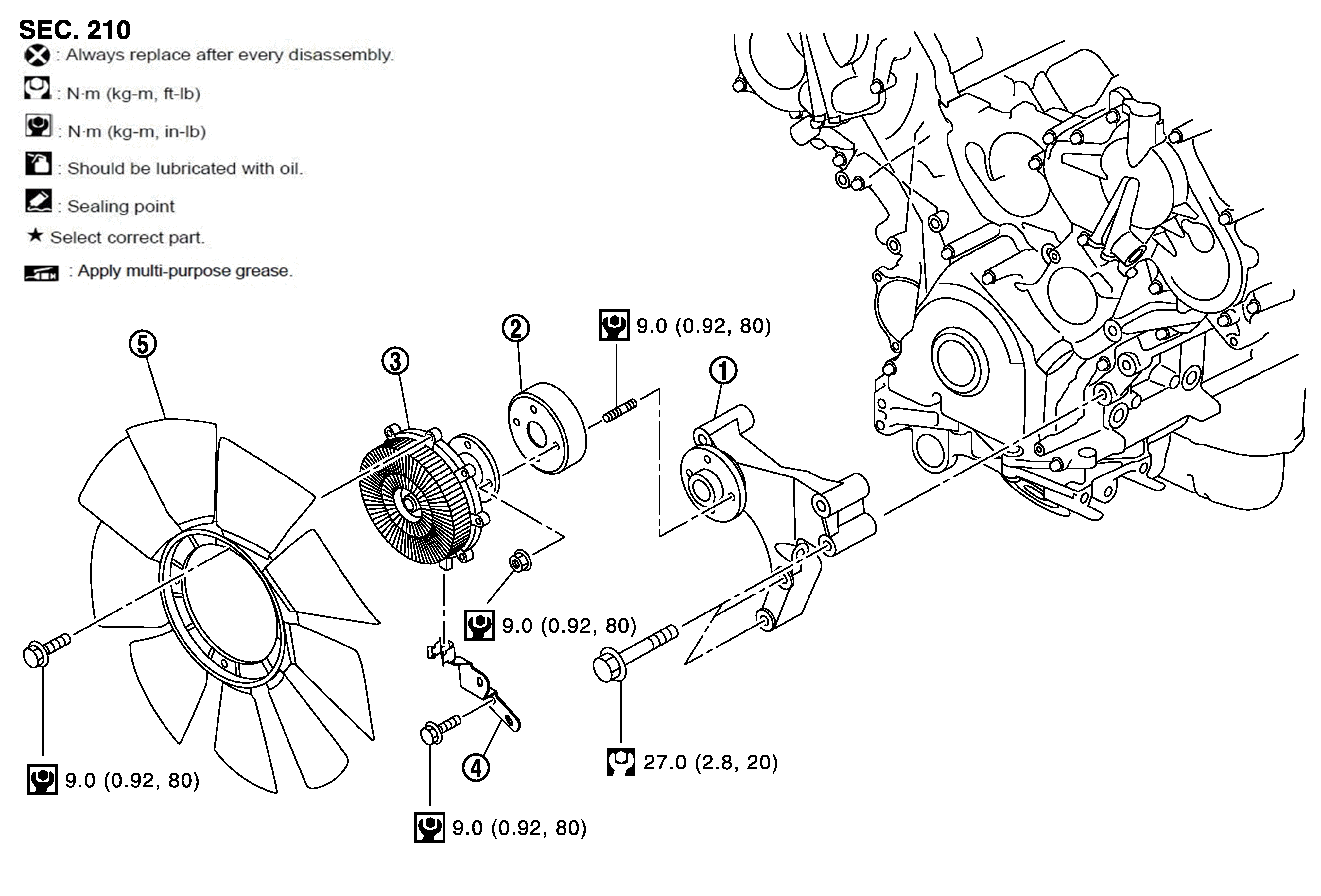

Fig 1: Cooling Fan With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fan bracket
2.
Cooling fan pulley
3.
Fan coupling
4.
Bracket
5.
Cooling fan
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
Courtesy of NISSAN NORTH AMERICA, INC.
