Exploded View: Removal

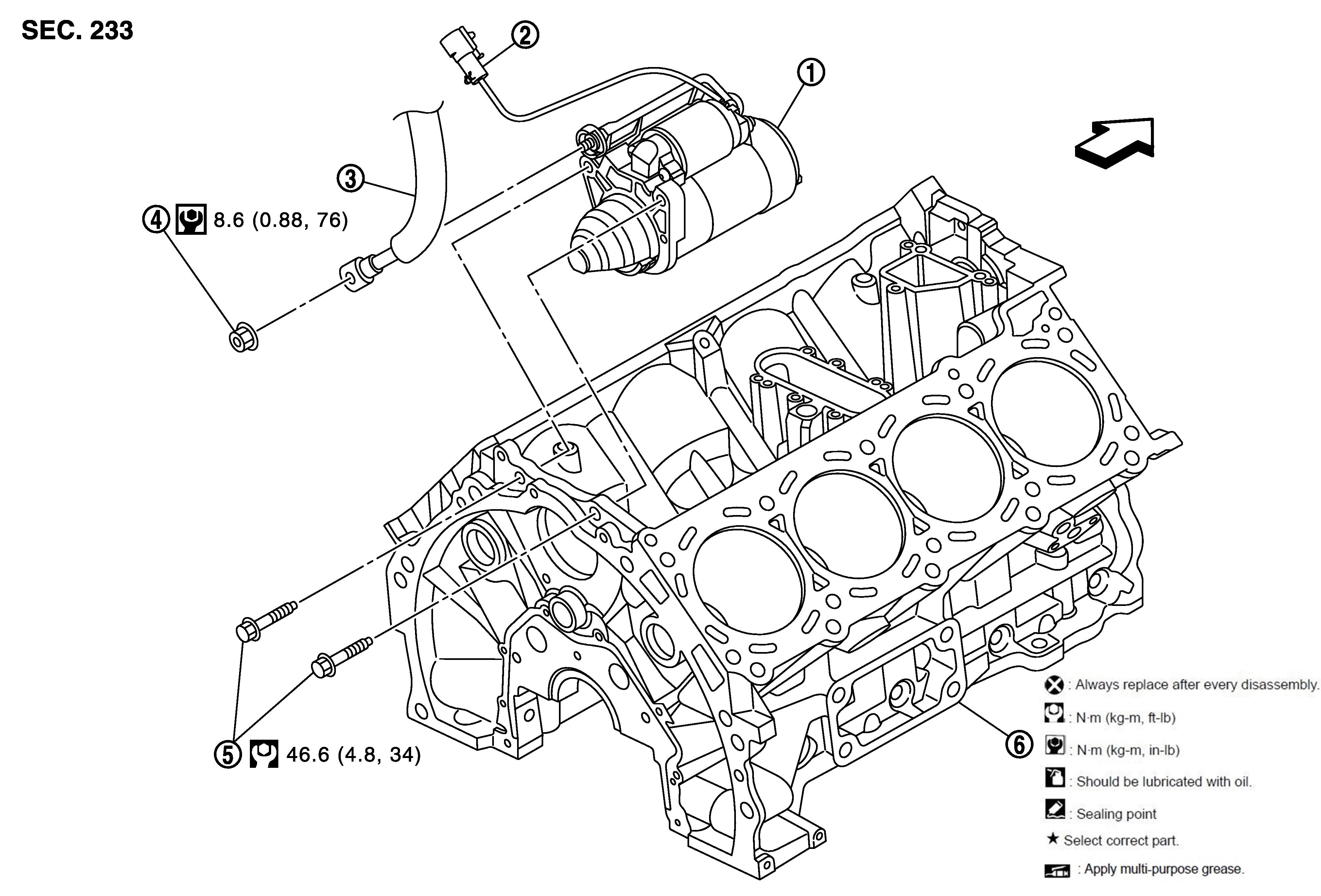

Fig 1: starter motor With Torque Specifications
GNSJMBIA2970GB-970ARROWBOLTBOLTINCourtesy of NISSAN NORTH AMERICA, INC.
1. Starter motor 2. "S" connector 3. "B" terminal harness
4. "B" terminal nut 5. Starter motor mounting bolt 6. Cylinder block
ARROW : Engine front
BOLT : N•m (kg - m, ft - lb)
BOLTIN : N•m (kg - m, in - lb)
