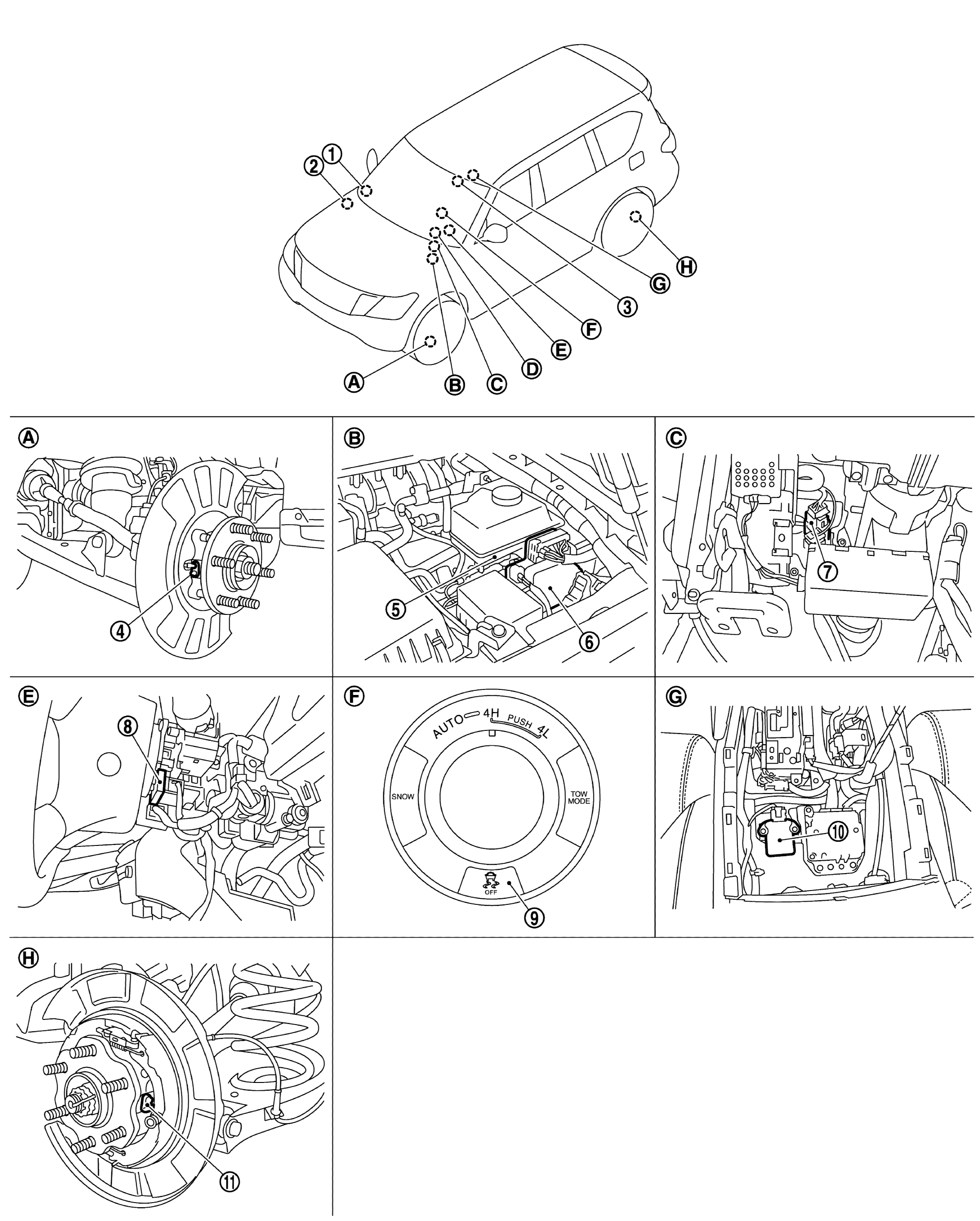

Component Location: 4WD
| 1. | Transfer control unit Refer to COMPONENT LOCATION . |
2. | ECM Refer to COMPONENT LOCATION . |
3. | Control valve & TCM Refer to COMPONENT LOCATION . |
| 4. | Front wheel sensor | 5. | Brake fluid level switch | 6. | ABS actuator and electric unit (control unit) |
| 7. | Stop lamp switch | 8. | Steering angle sensor | 9. | VDC OFF switch |
| 10. | Yaw rate/side/decel G sensor | 11. | Rear wheel sensor | ||
| A. | Front wheel hub and bearing assembly | B. | Inside engine room | C. | Brake pedal |
| D. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp | E. | Back of spiral cable assembly | F. | Center console assembly |
| G. | Under center console assembly | H. | Rear wheel hub and bearing assembly |
